Adjustable Hitch
Accommodate a wide variety of towing vehicles with an adjustable 4-bolt hitch rated for the full GVWR of the trailer.
Heavy-Duty Bent D-Rings
Forged D-rings for your trailer to handle even your toughest hauling requirements.
Platform Cushioning Cylinders
Single platform cushioning cylinders make loading and unloading a smooth operation.
Platform Lock
Keep your deck from accidentally tilting while in the transport mode with the platform lock mechanism and safety lock pin.
TKTU Tilt Utility
Our Tilt Utility trailer is the highest quality and dependable tilt bed on the market because it’s manufactured with highest standard of craftsmanship. It’s designed to haul medium-duty, low-profile equipment across any distance.
The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager.

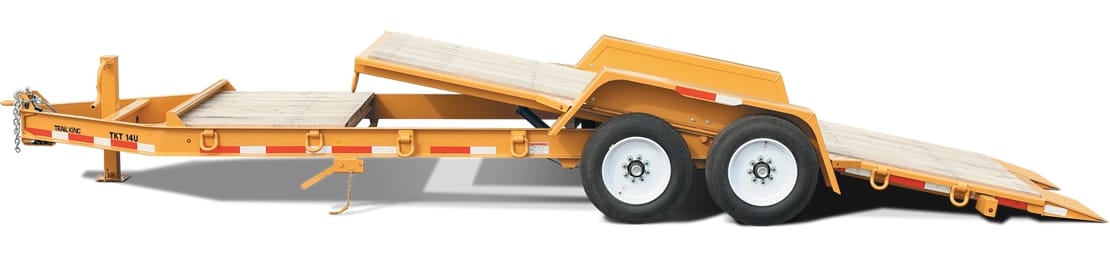

Trail King TKTU Tilt Utility Trailer
| TKTU Standard Equipment | TKT12U | TKT14U | TKT16U |
|---|---|---|---|
| Payload Capacity | 12,000 lb. | 14,000 lb. | 16,000 lb. |
| Structural Steel Main Frame | X | X | X |
| Overall Width | 102” | 102” | 102” |
| Deck Width between Fenders | 82” | 82” | 82” |
| Overall Deck Length | 20’ | 20’ | 20’ |
| Stationary Deck Length | 4’ | 4’ | 4’ |
| Tilt Deck Length | 16’ | 16’ | 16’ |
| Loaded Deck Height | 23” | 23” | 23” |
| 1.5″ Oak (Raised) Decking | X | X | X |
| Torflex Axles | (2) 7,000 lb. | (2) 7,000 lb. | (2) 8,000 lb. |
| 12,000 HD Jack with Spring Foot | X | X | X |
| 4-Bolt Pintle Hitch, adjustable range | 19” – 23.5” | 19” – 23.5” | 19” – 23.5” |
| Electric Brakes on All Axles | X | X | X |
| 6 pair Bent D-Rings: (2) on Stationary / (4) on Tilt Deck | X | X | X |
| Electrical System per DOT Regulations | X | X | X |
| Safety Chains with Grab Hooks | X | X | X |
| 14 Guage Fenders | X | X | X |
| Headboard | X | X | X |
| Breakaway Switch | X | X | X |
| Single Disc Wheels (8 Hole) | X | X | X |
| Tires | 235/80R x 16 | 215/75R x 17.5 | 215/75R x 17.5 |
| Red and White Conspicuity Markings | X | X | X |
