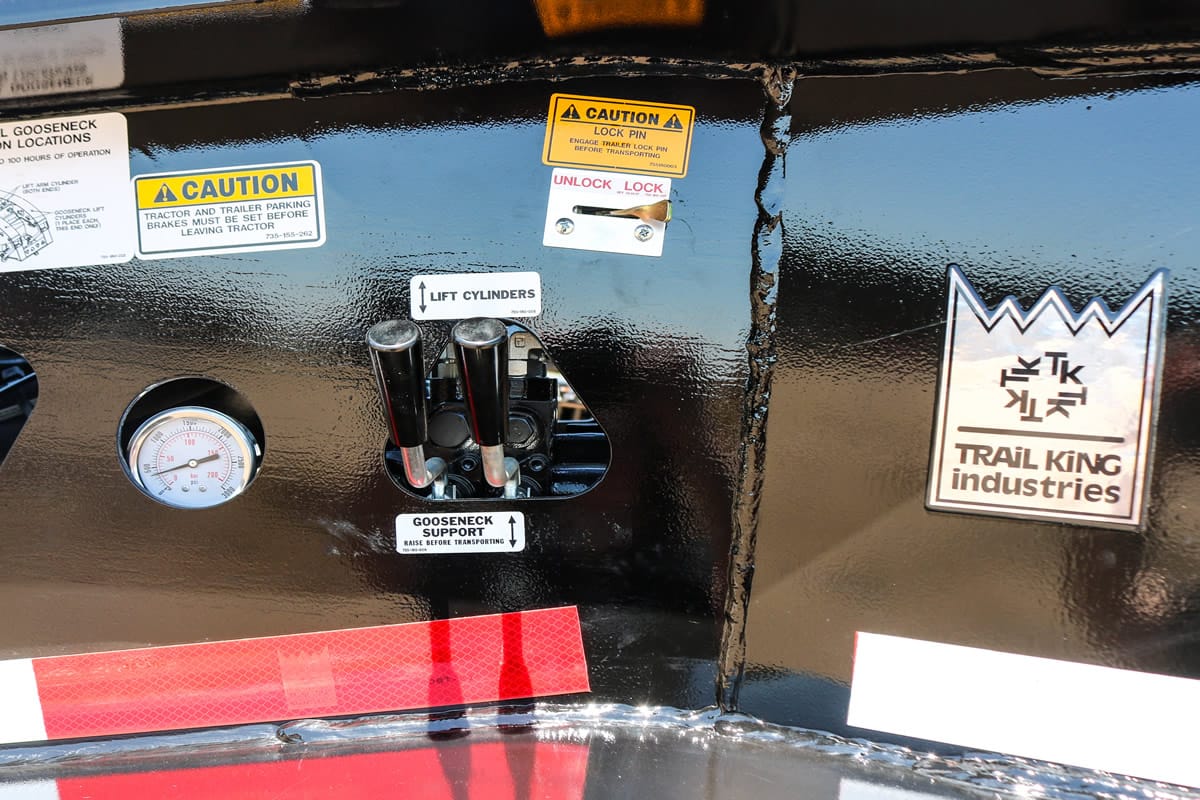

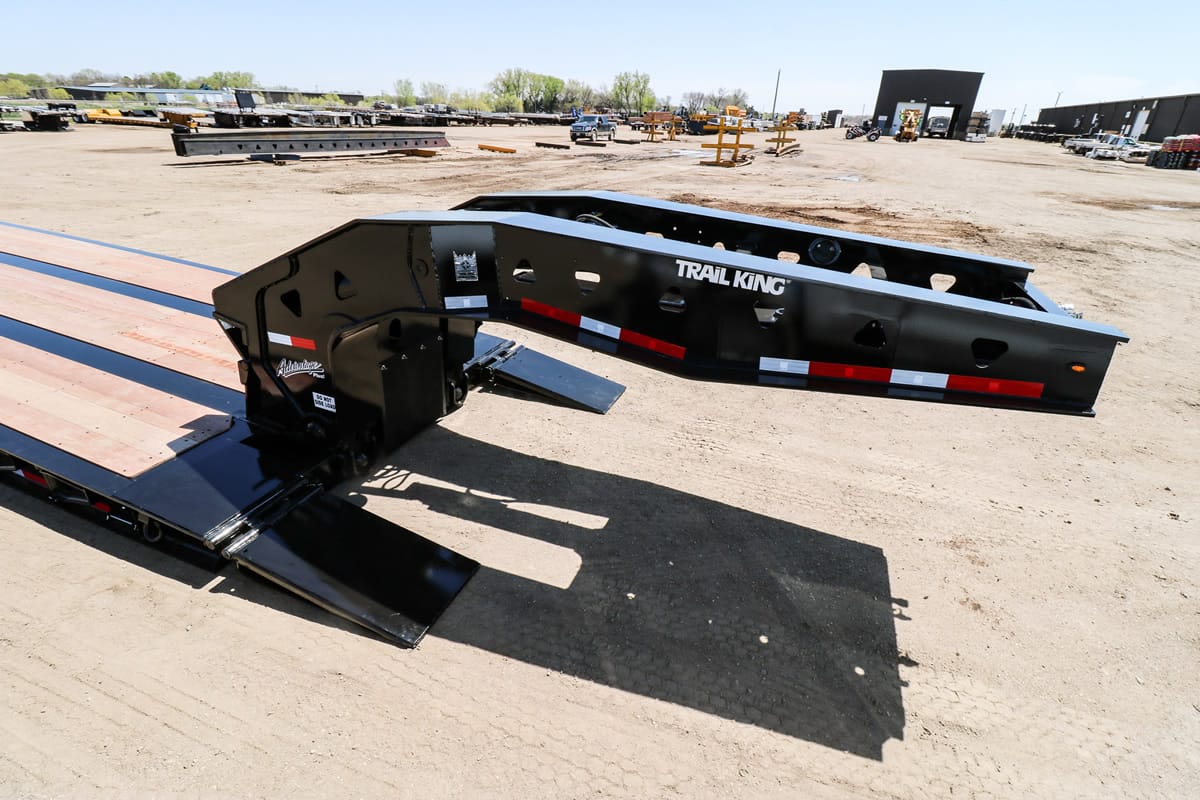

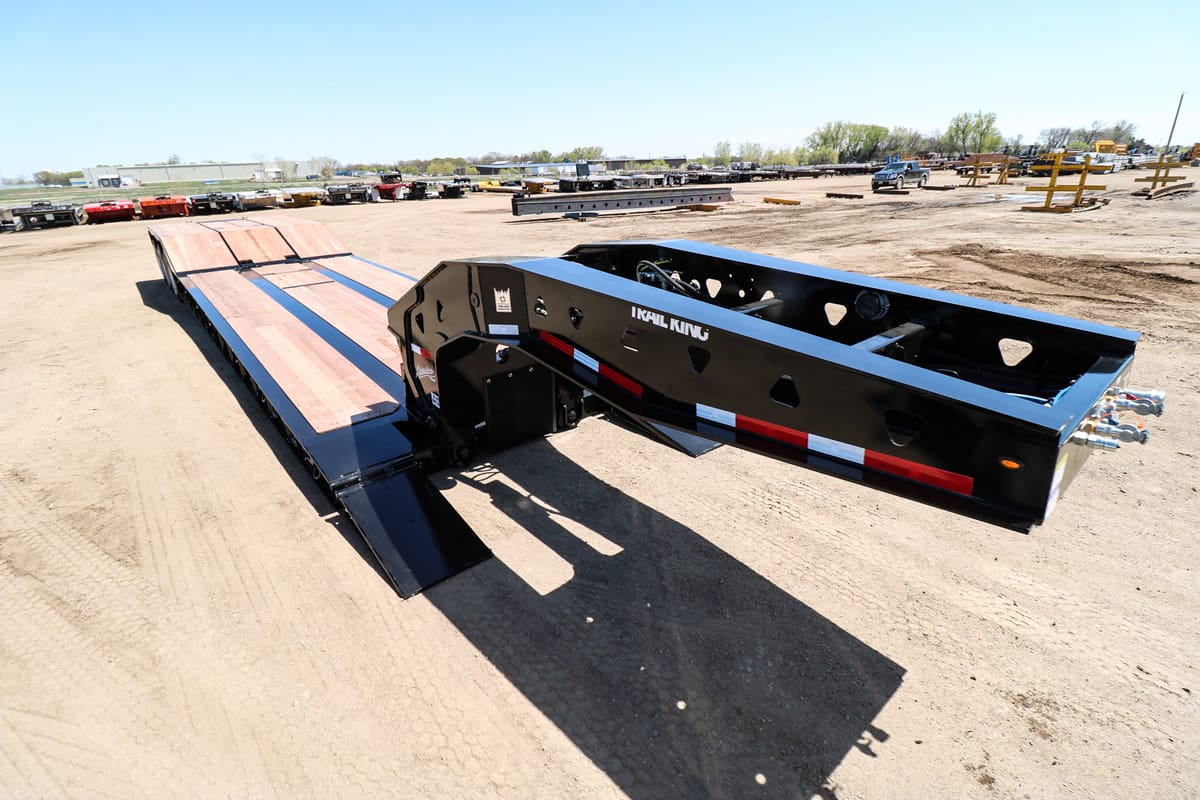

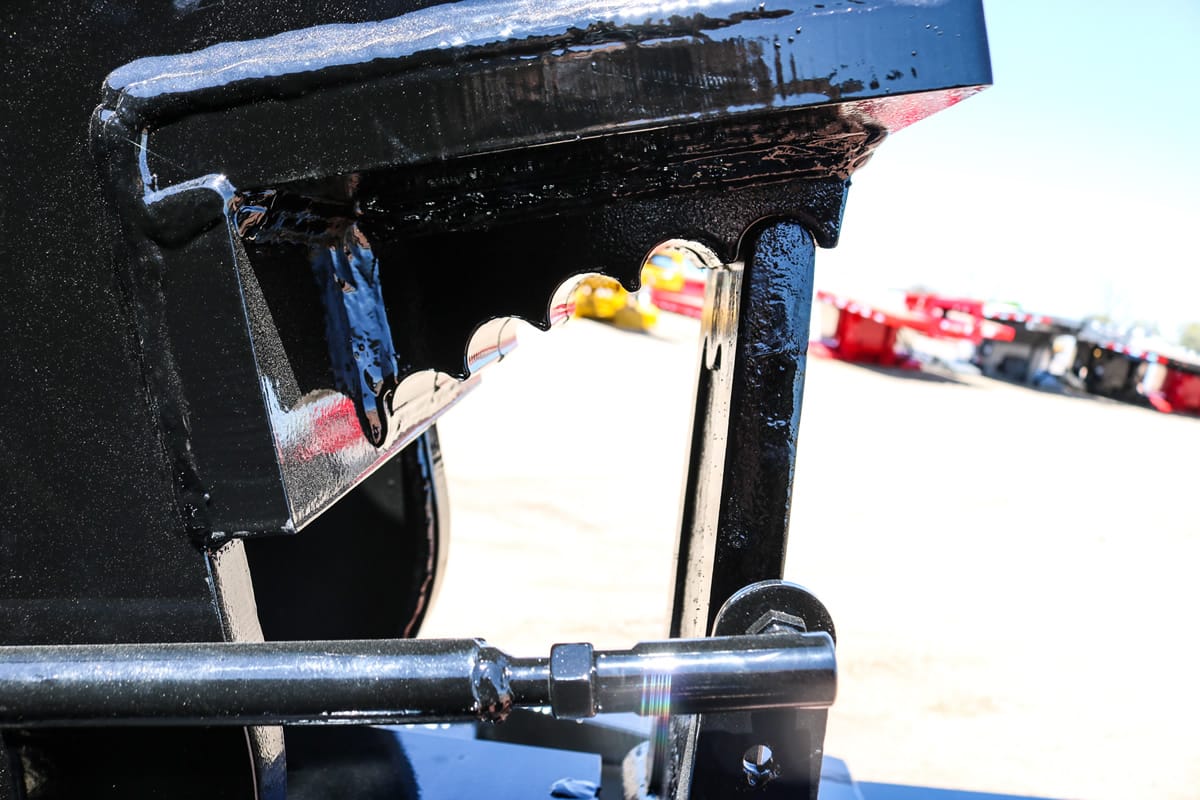

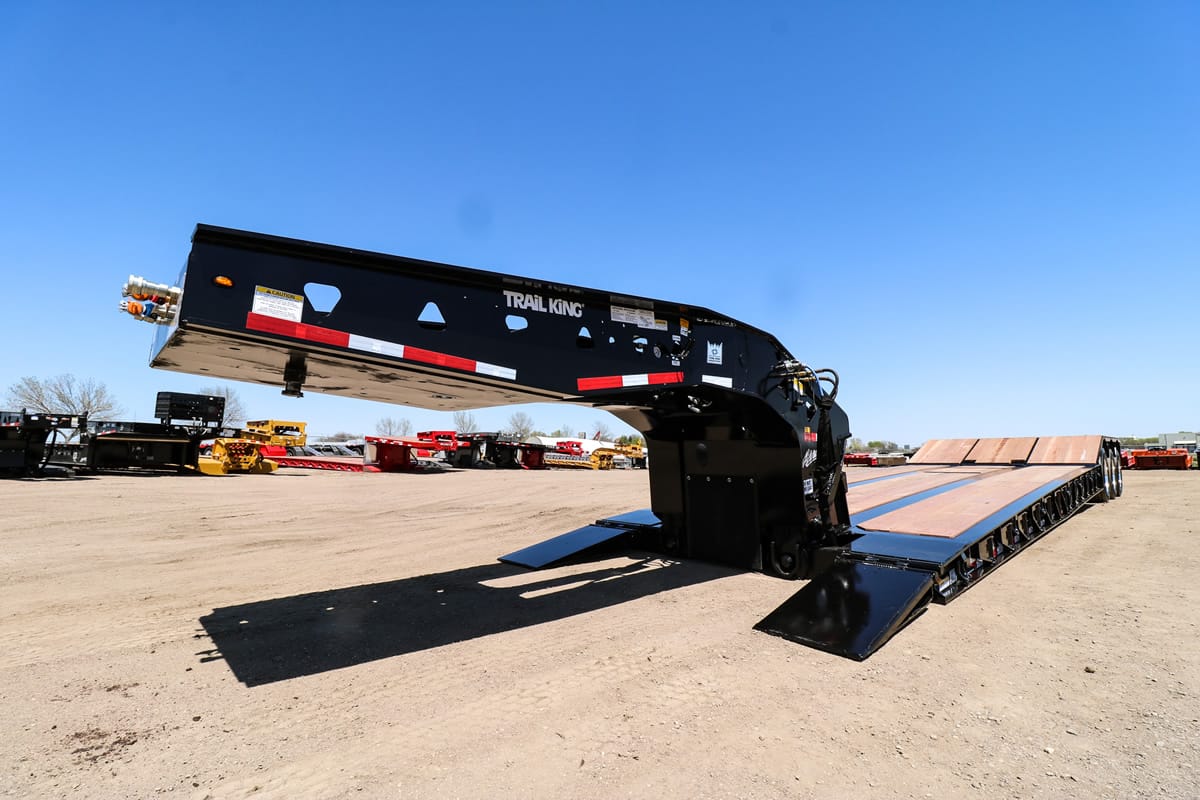

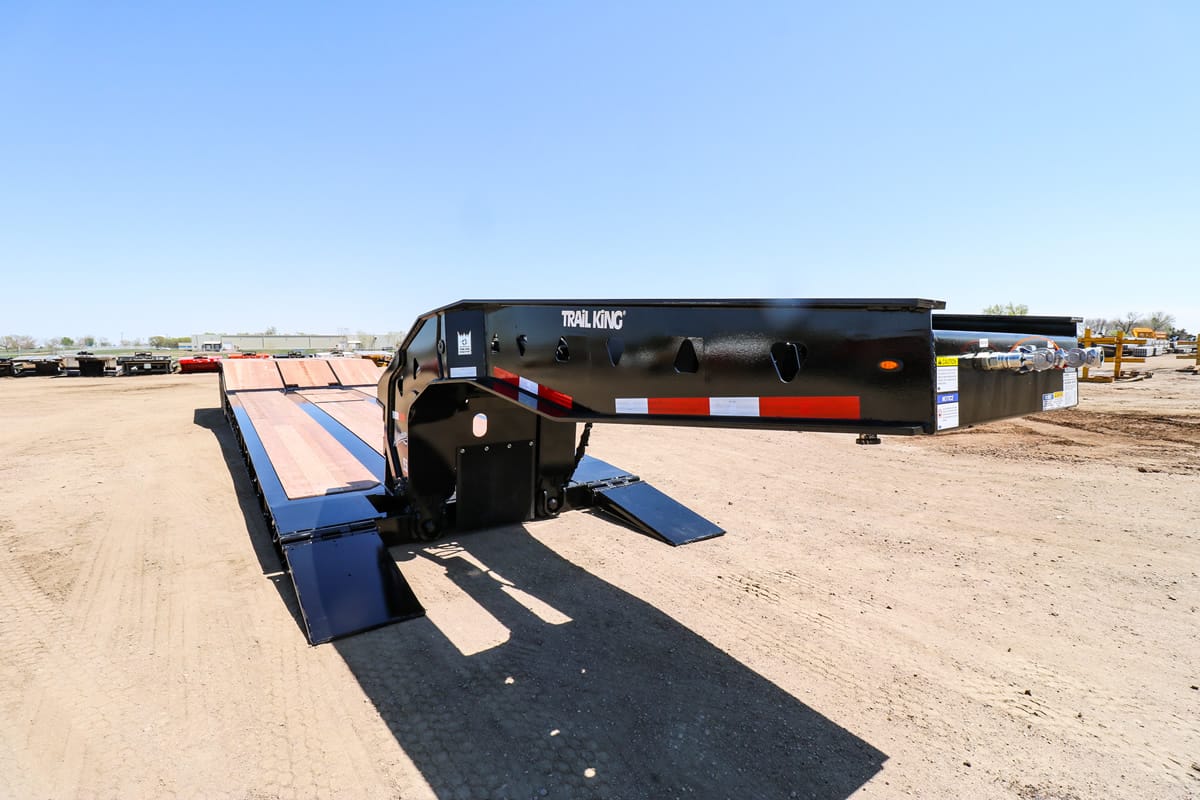

Five-Position Gooseneck Door Adjustment

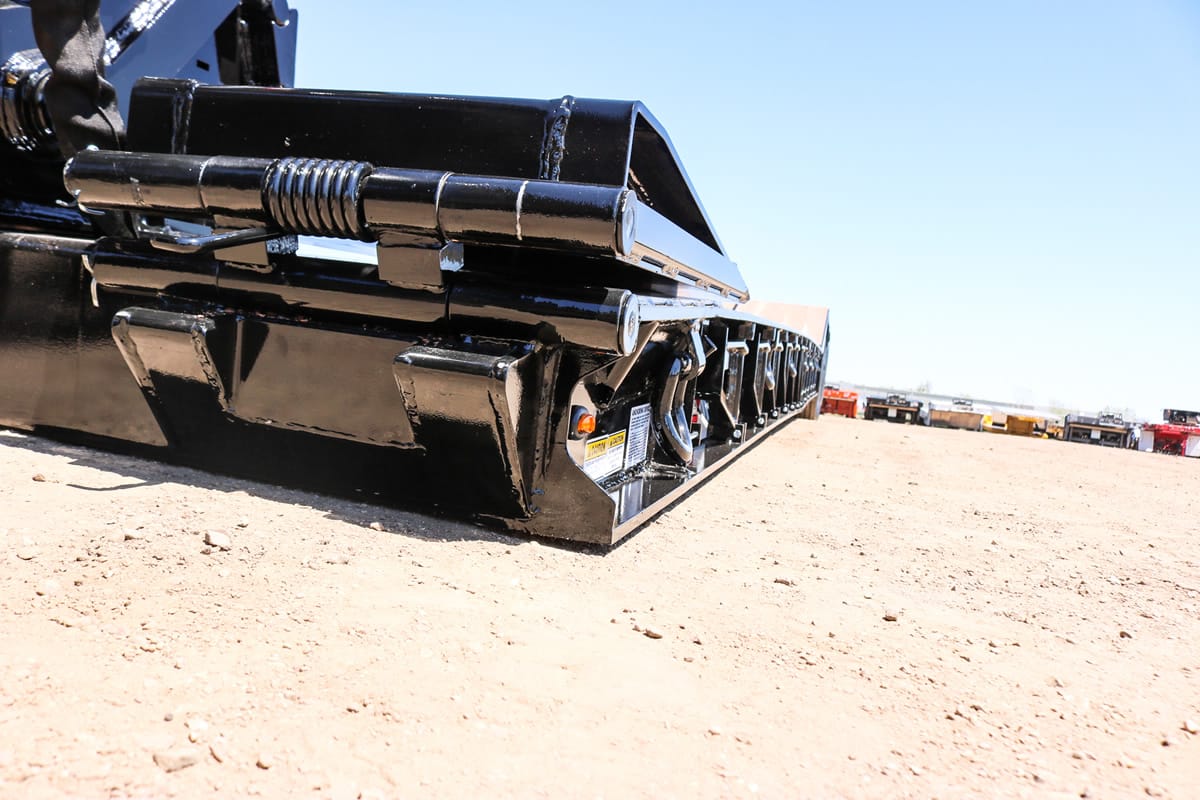

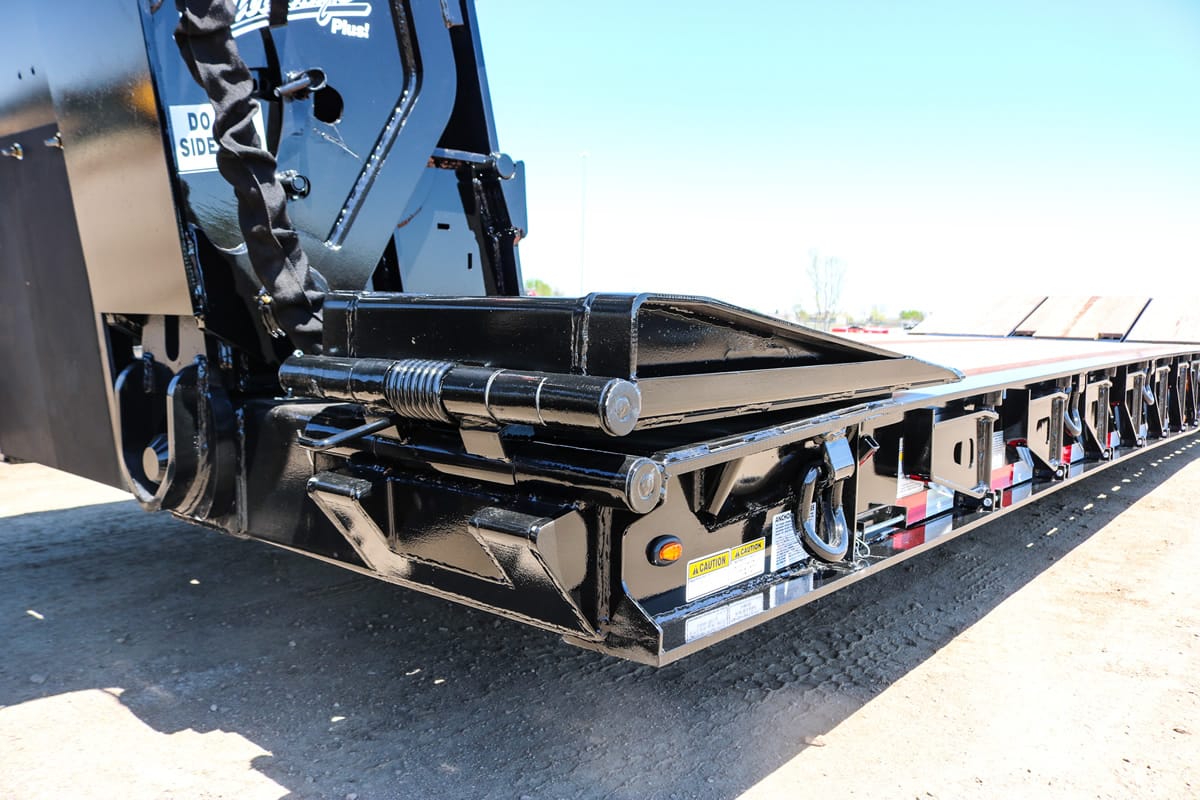

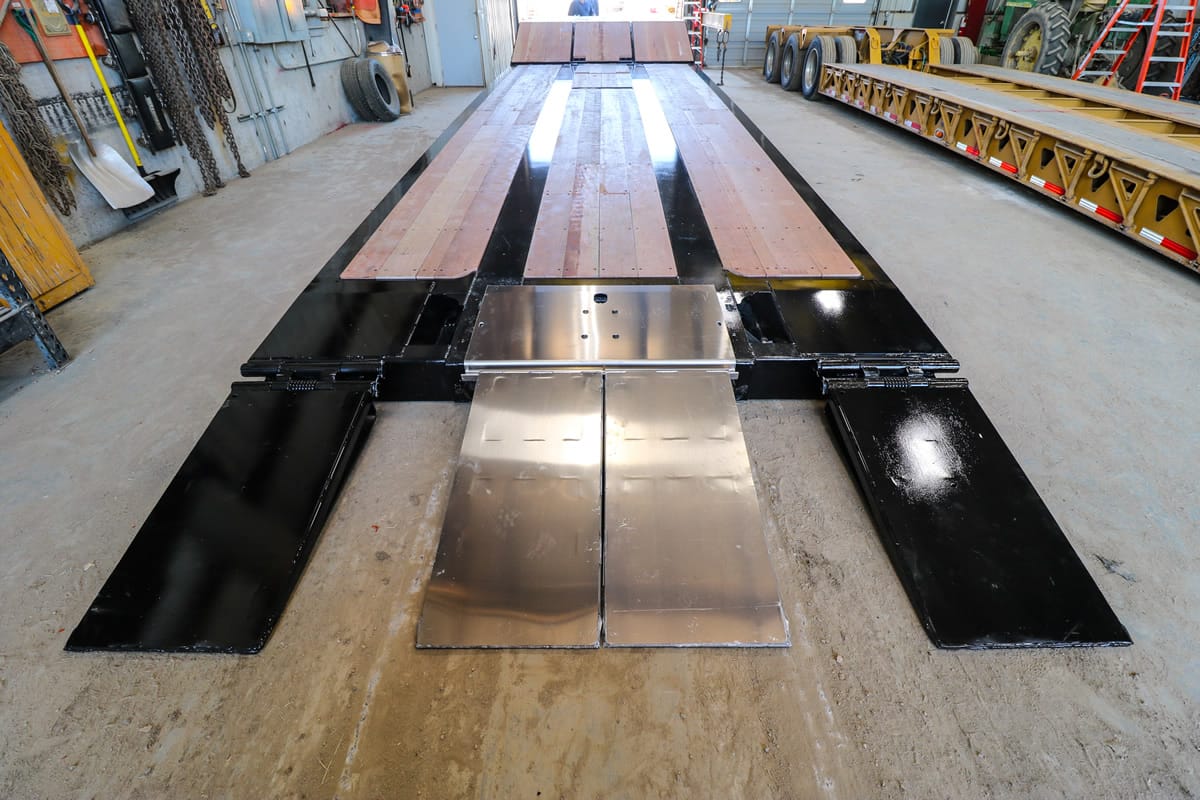

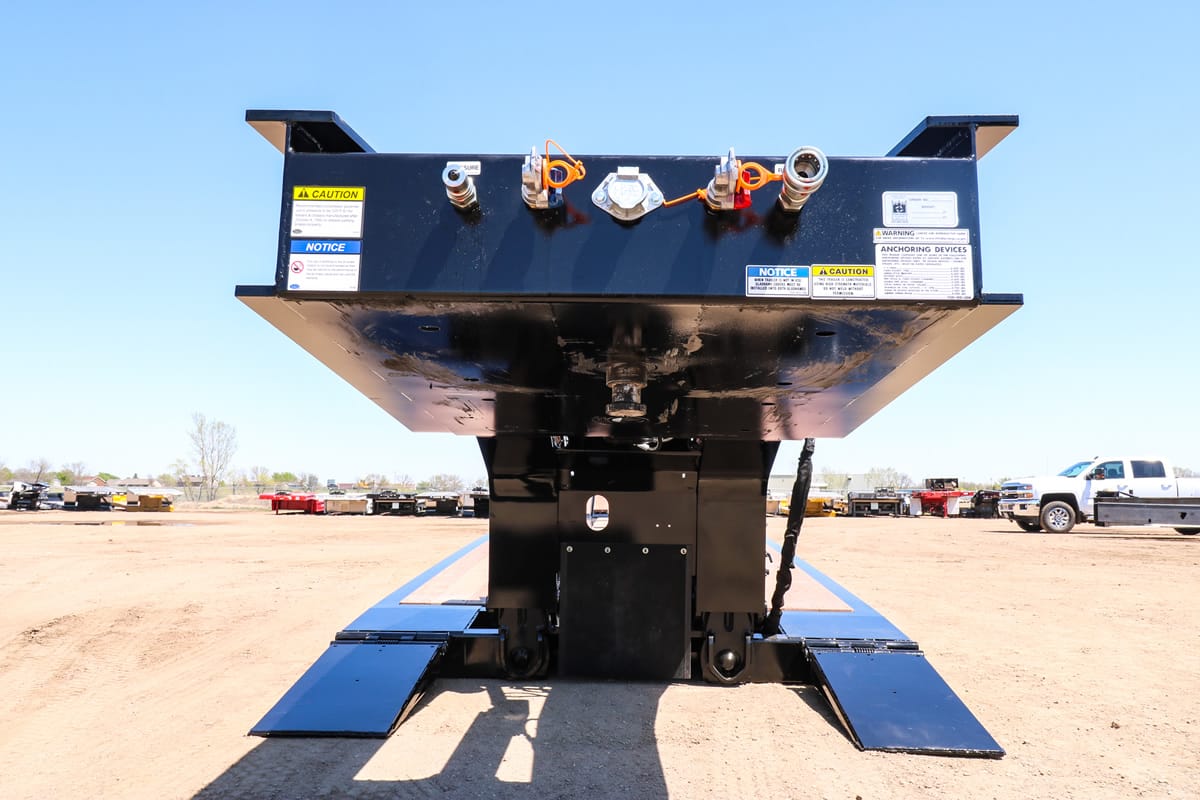

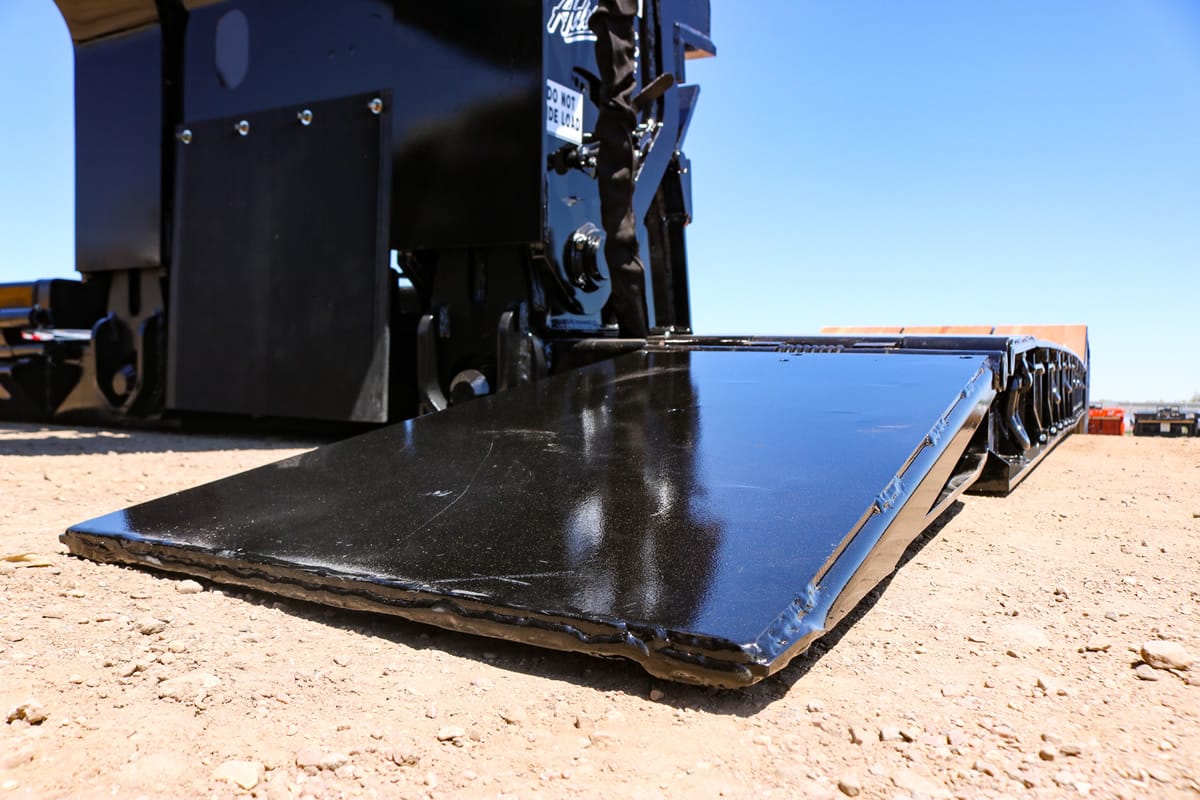

42 inch Front Ramps with Spring Assist and an 11° Load Angle

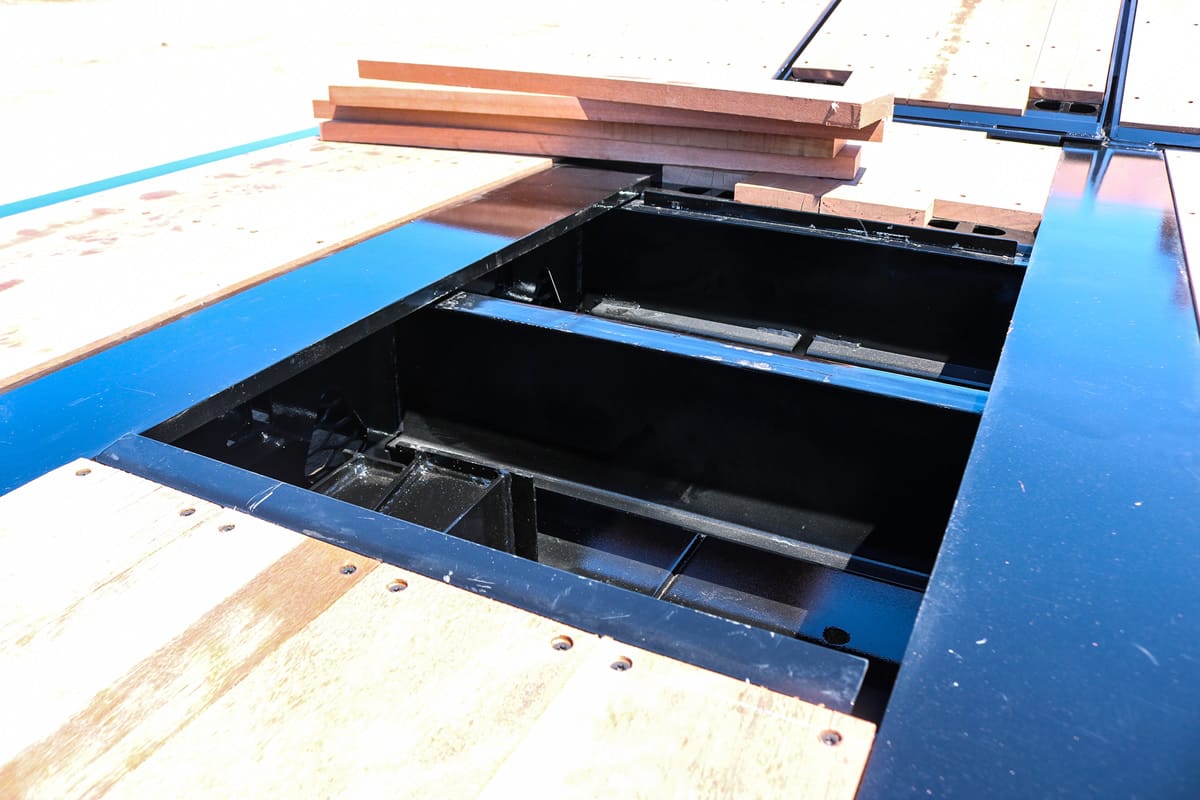

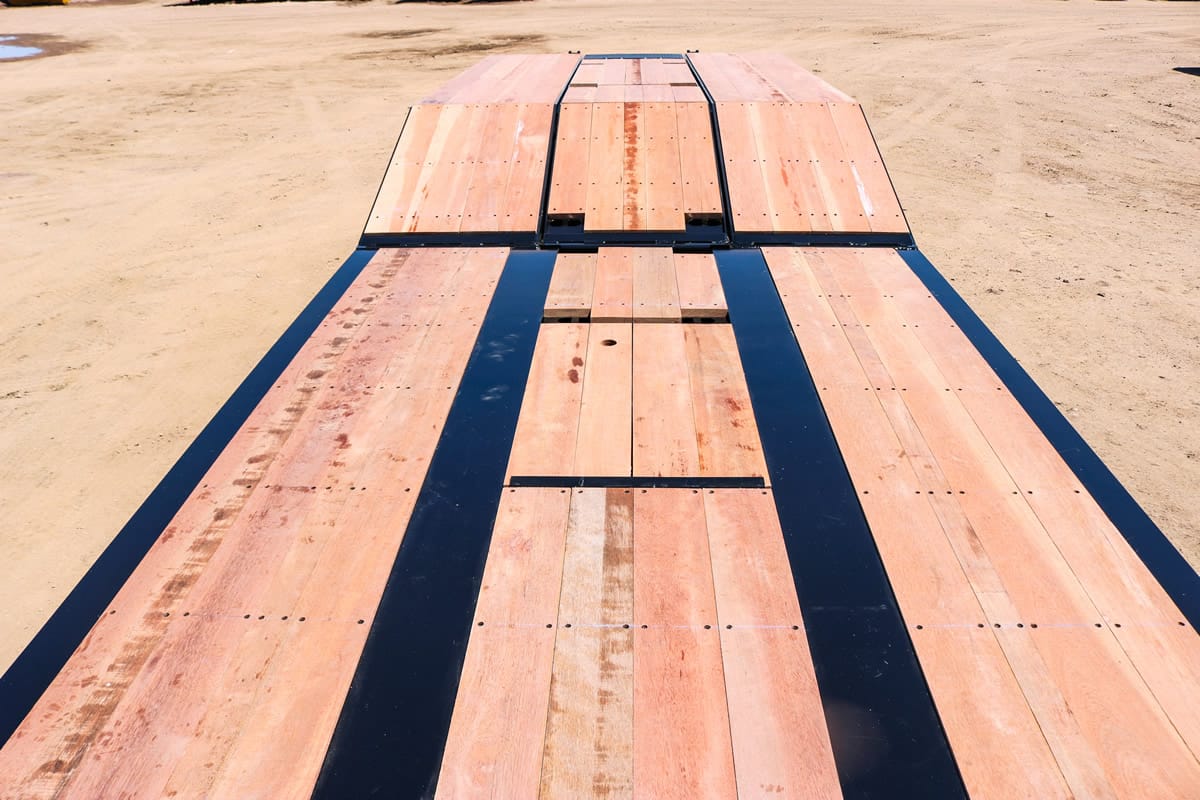

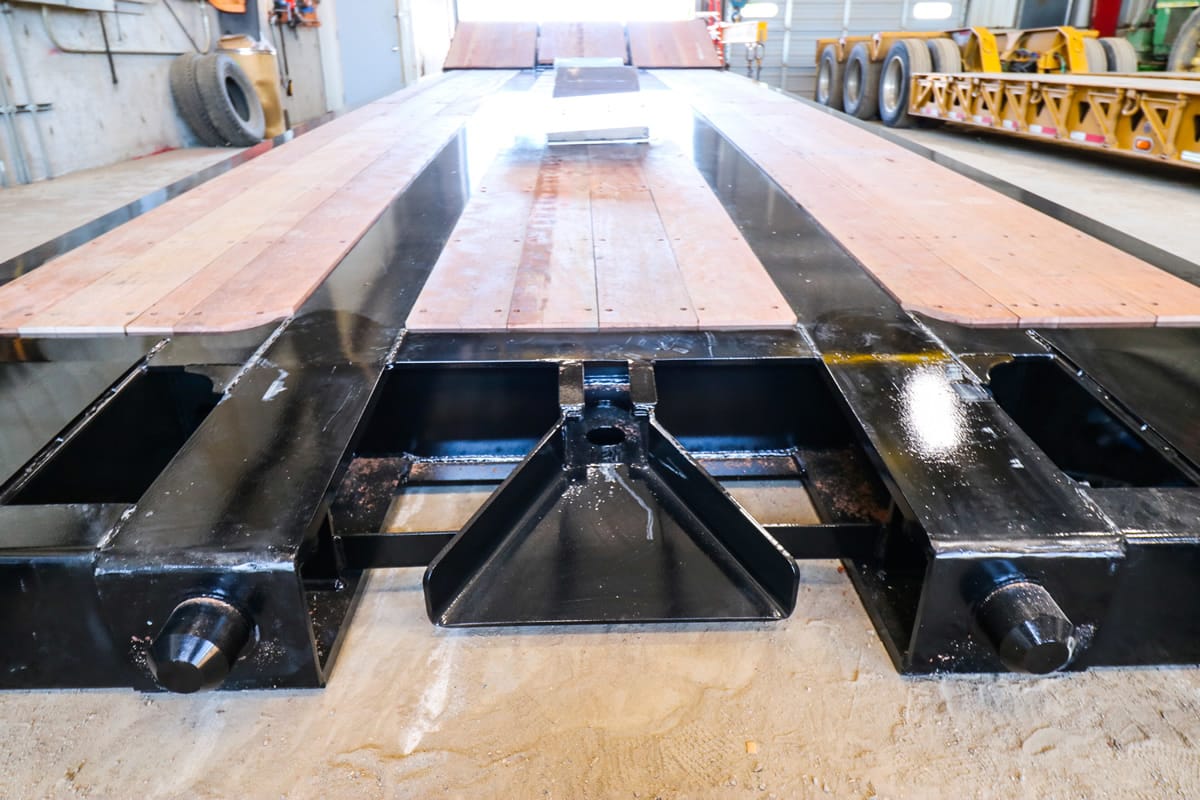

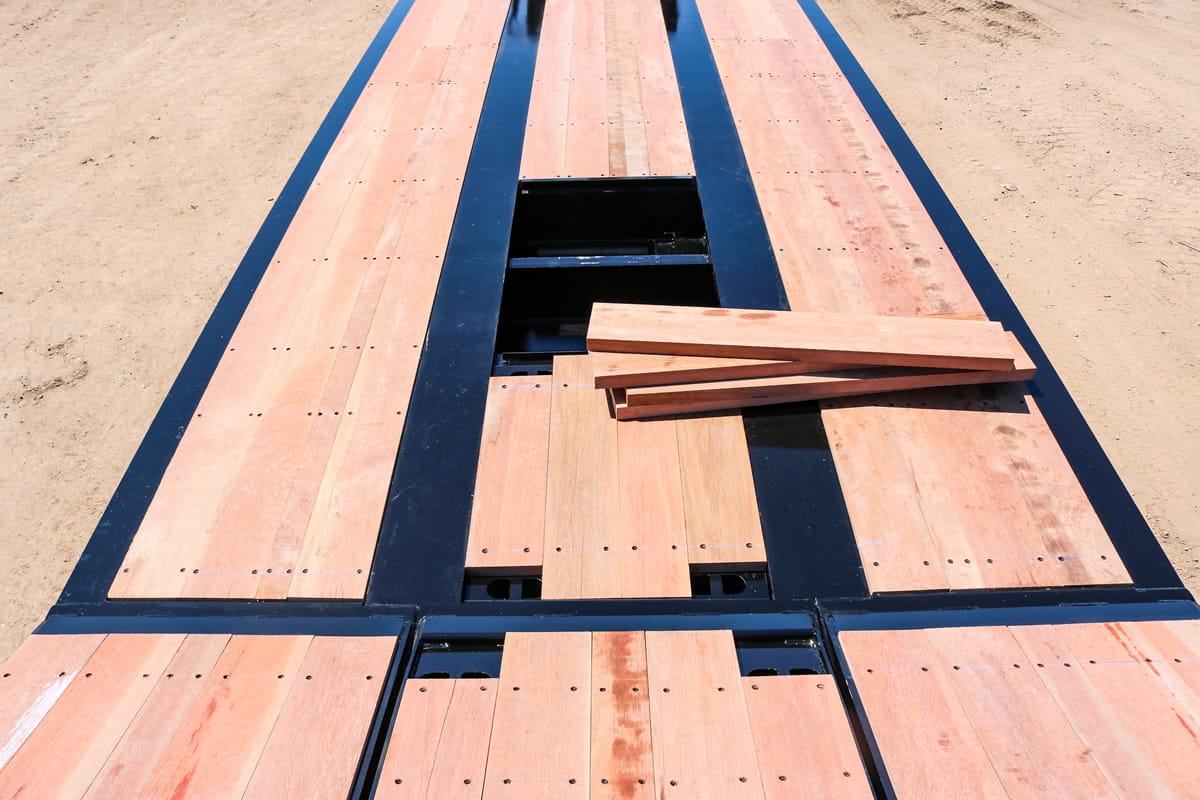

4-Beam Tapered Deck Main Frame Construction

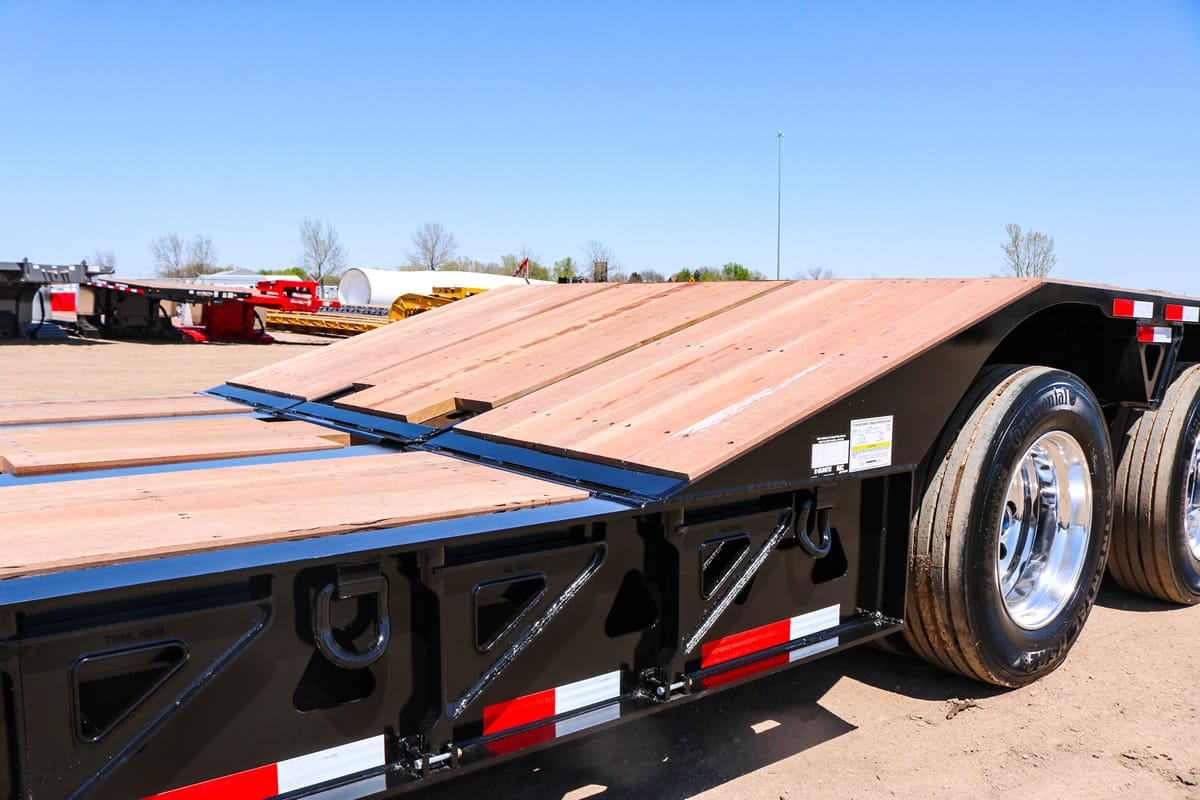

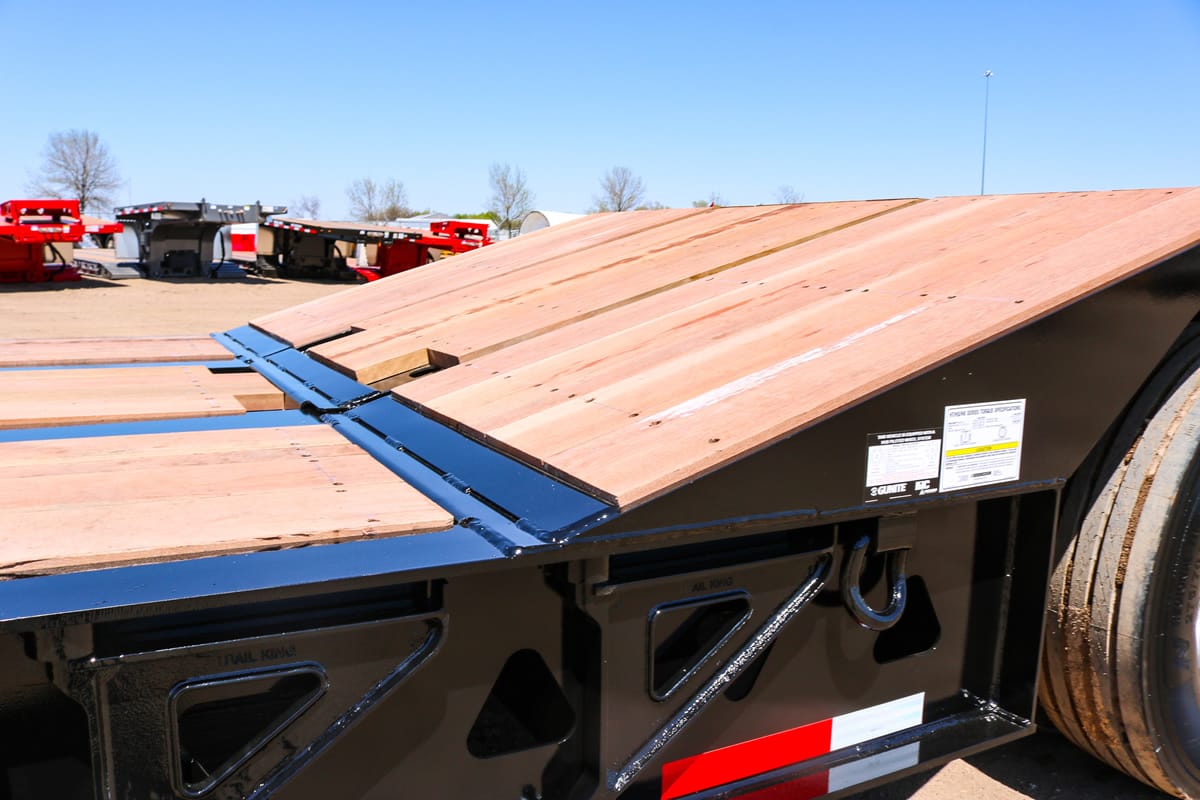

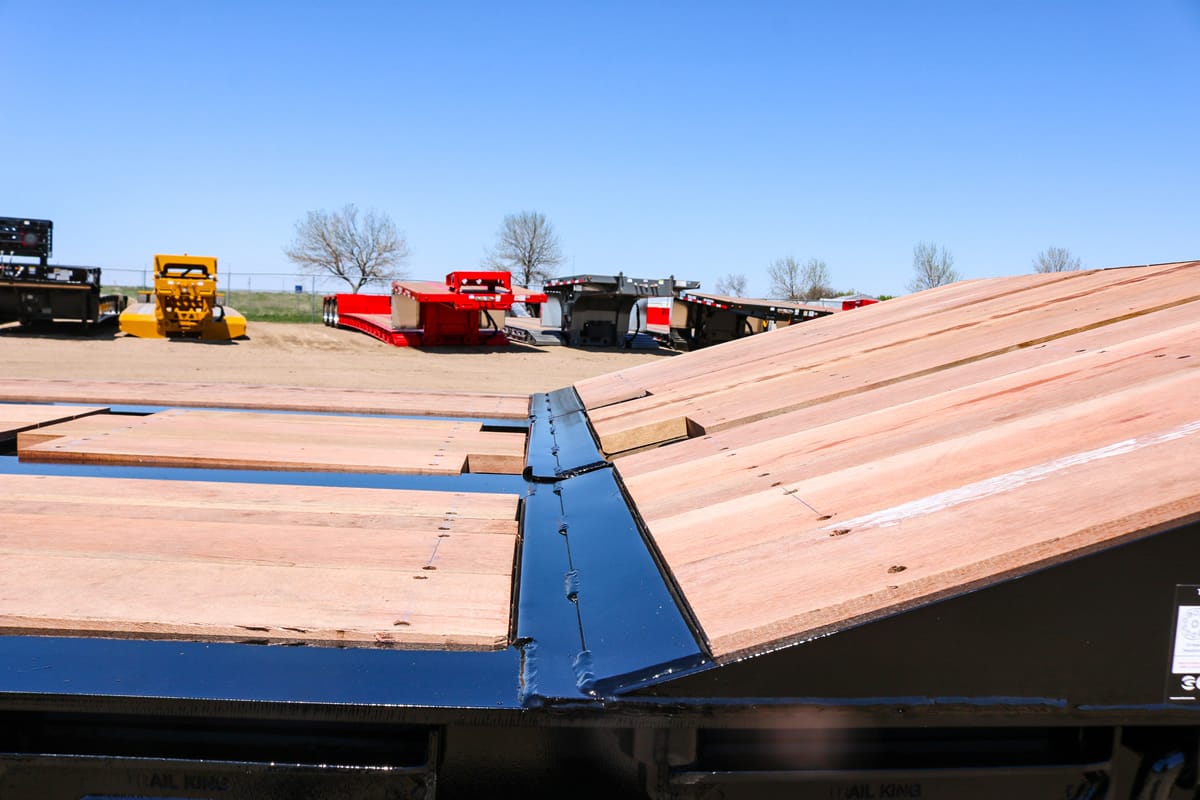

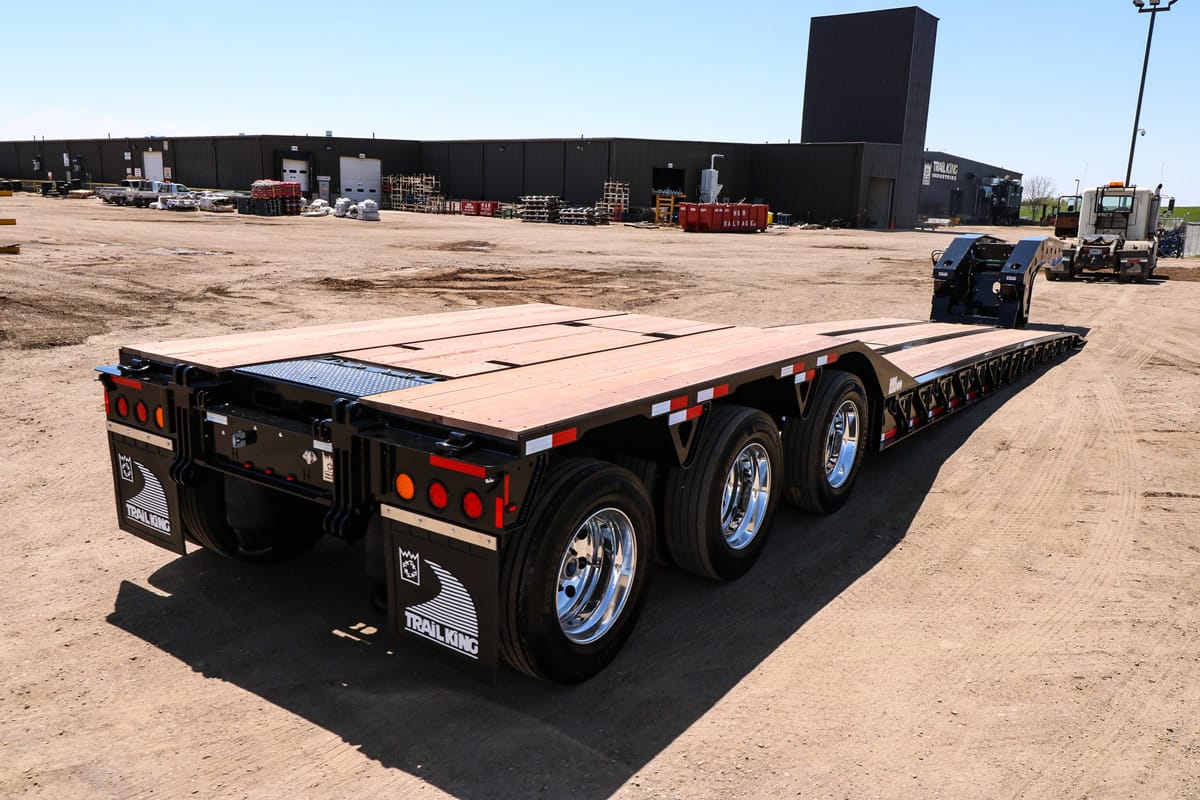

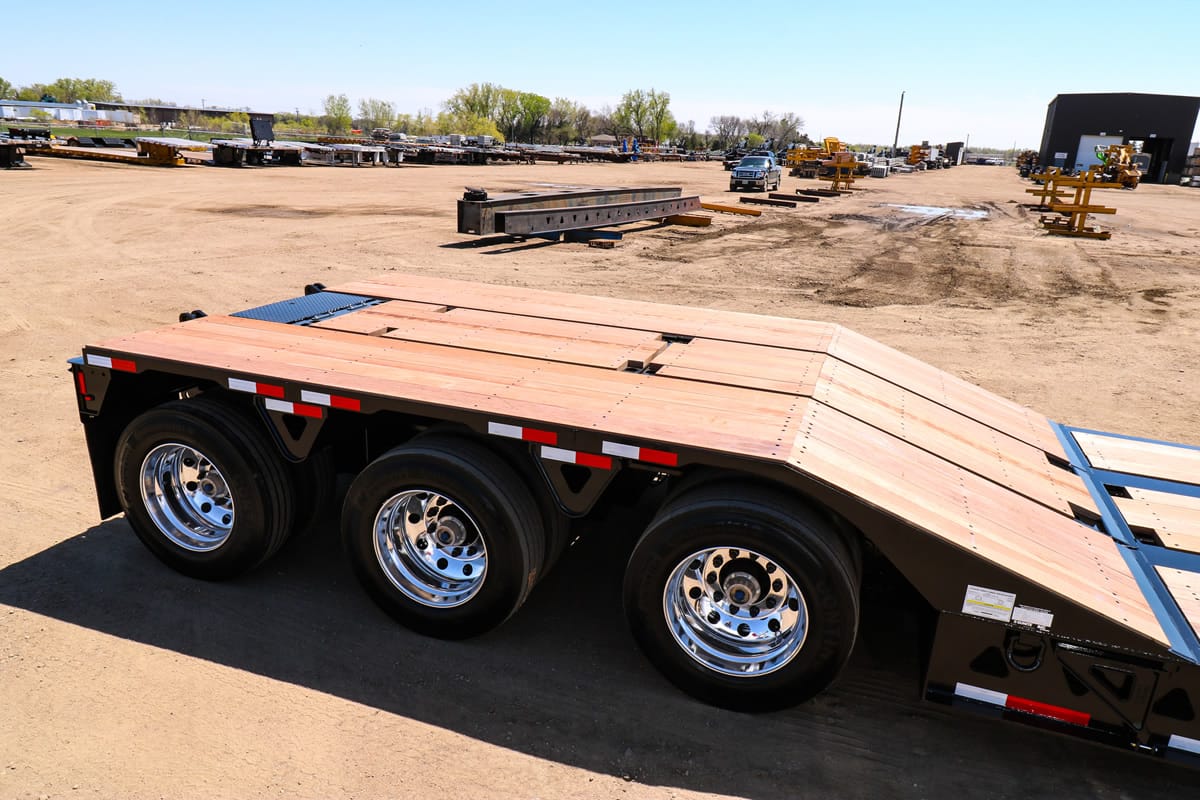

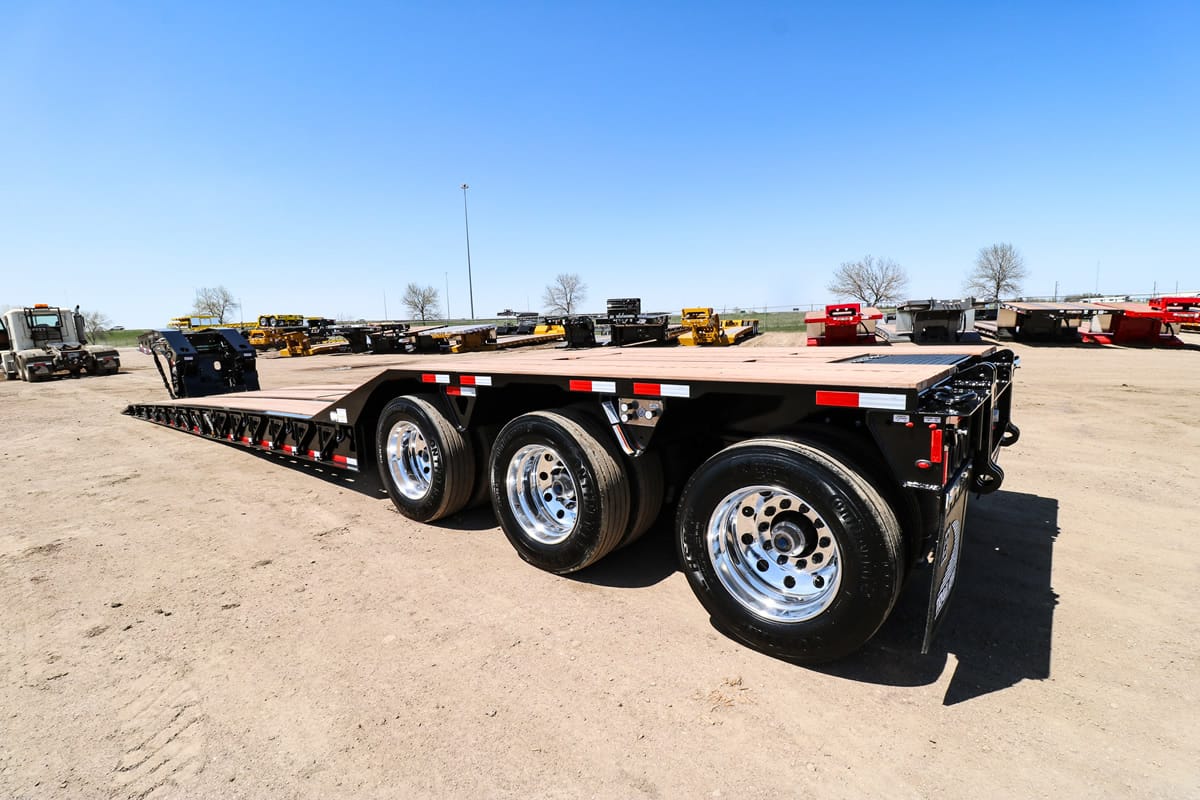

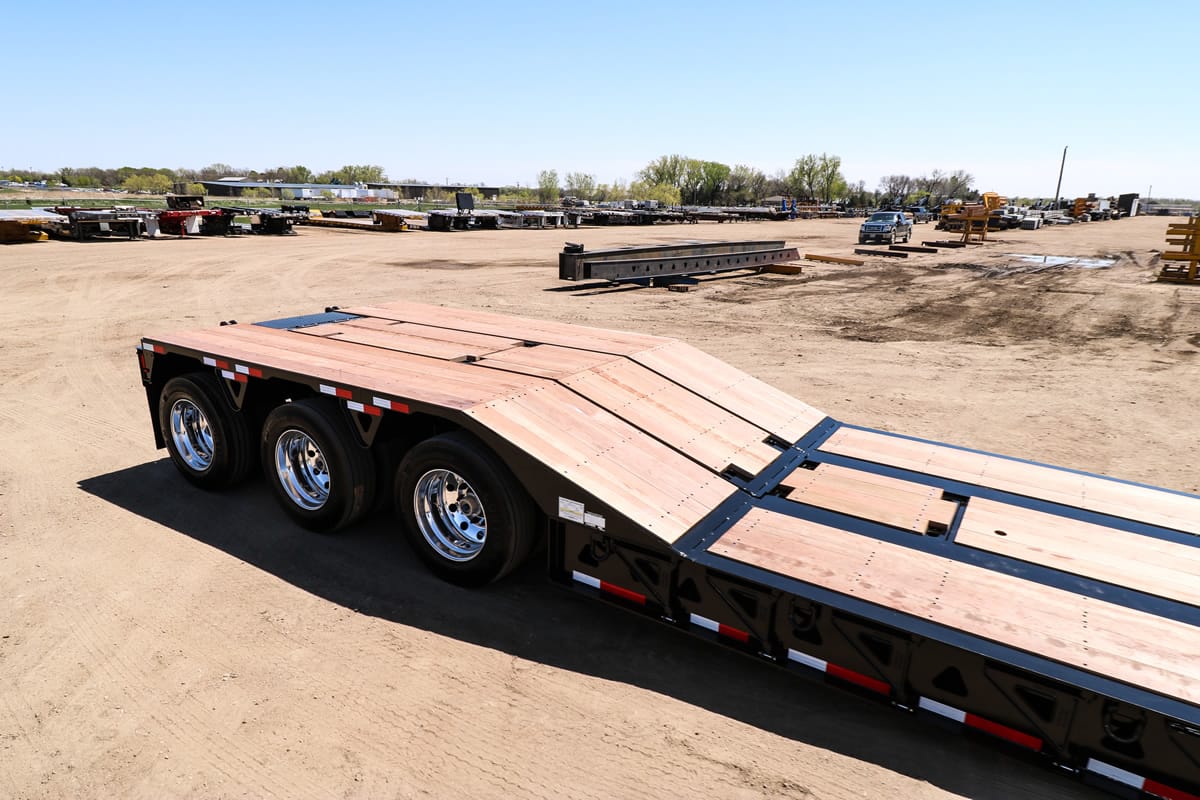

18° Rear Slope with Knife Edge Transition to the Deck
Paver Special

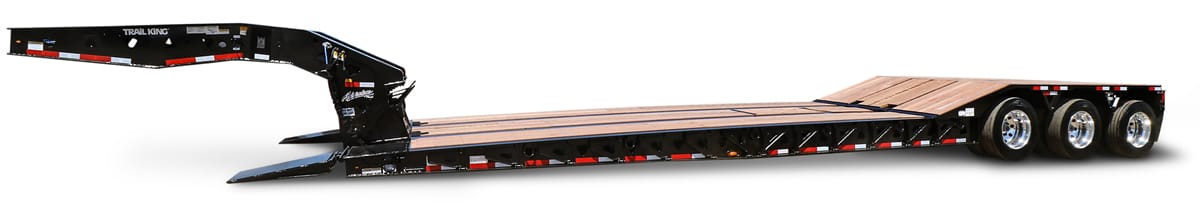

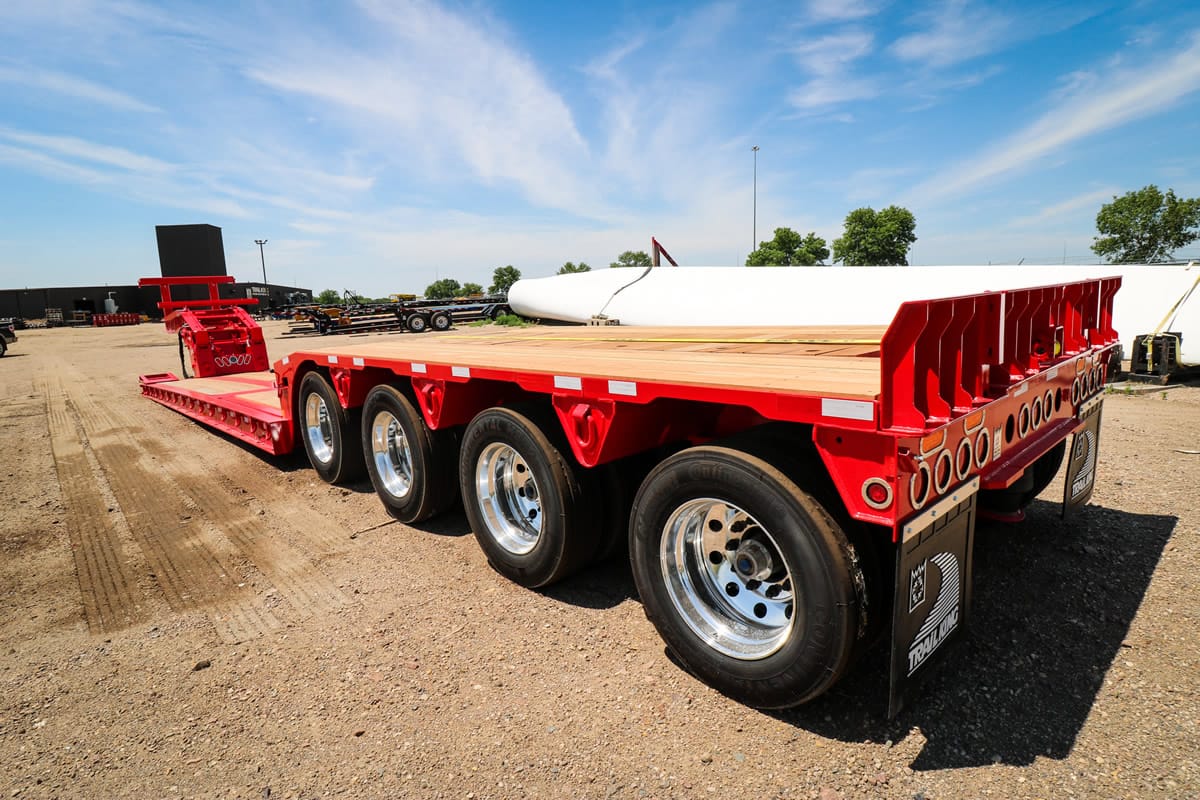

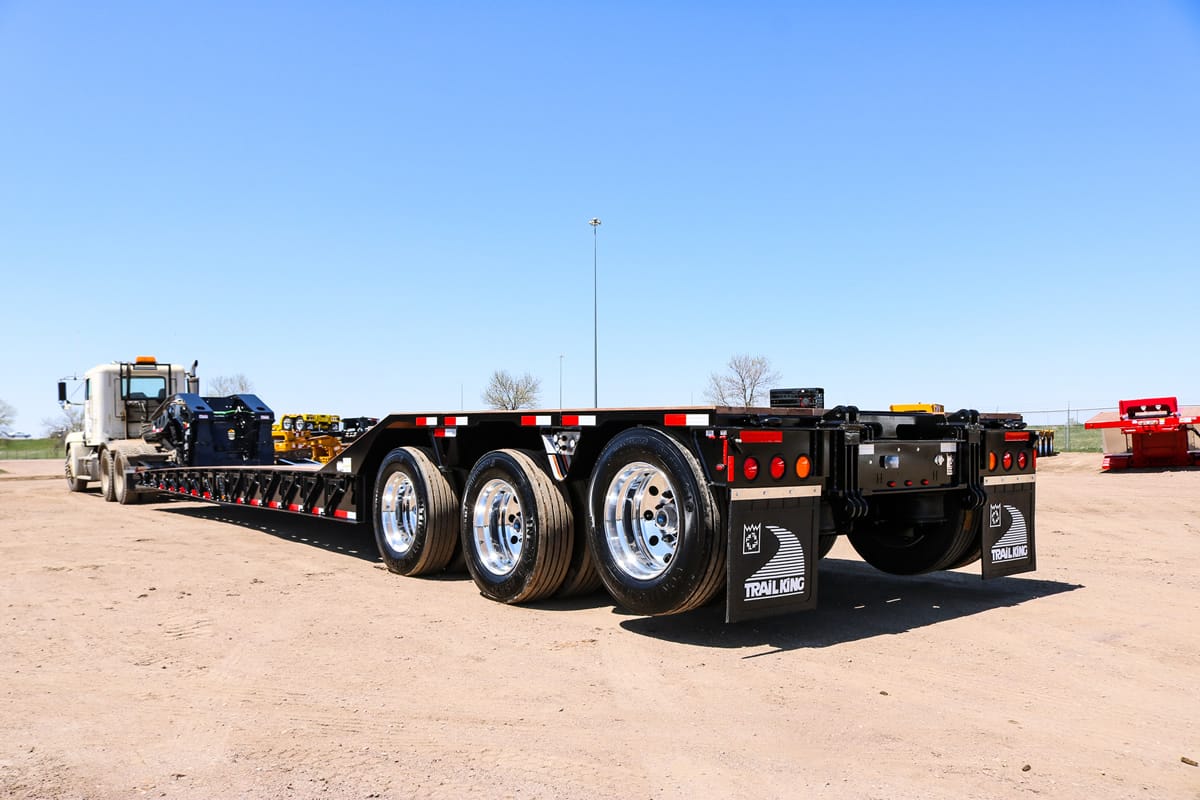

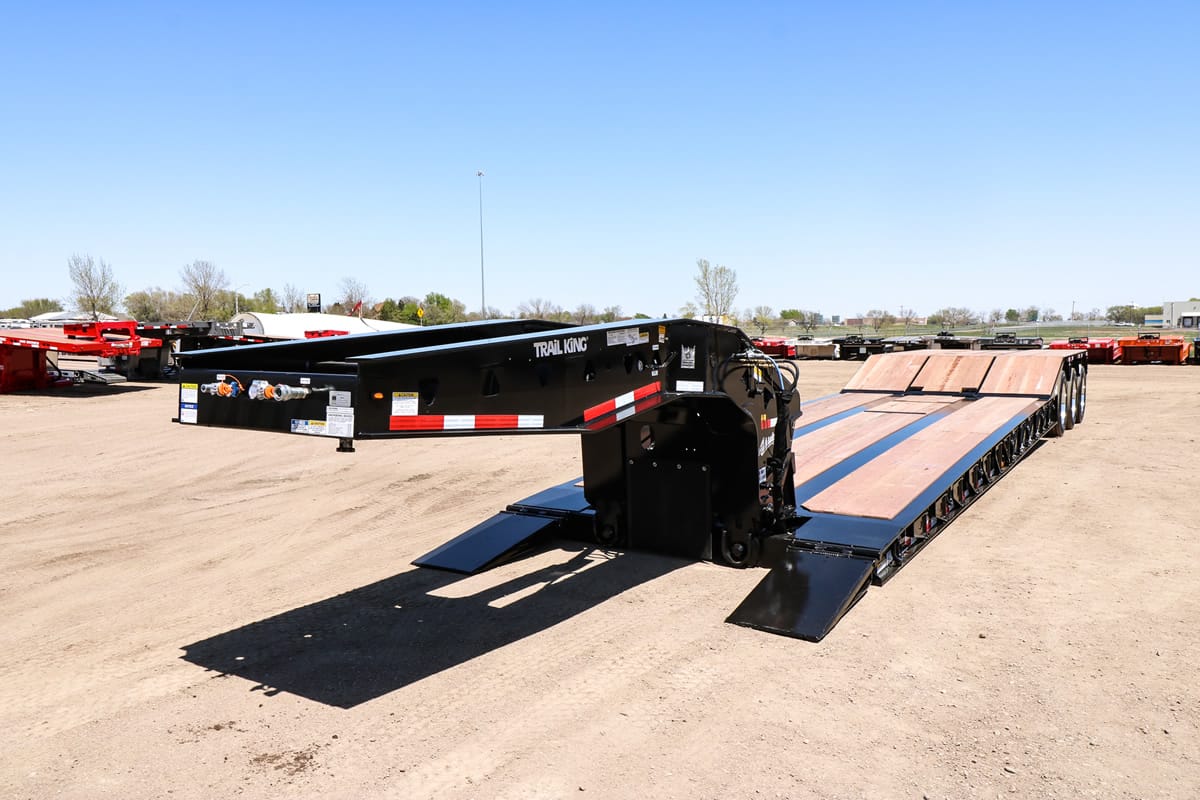

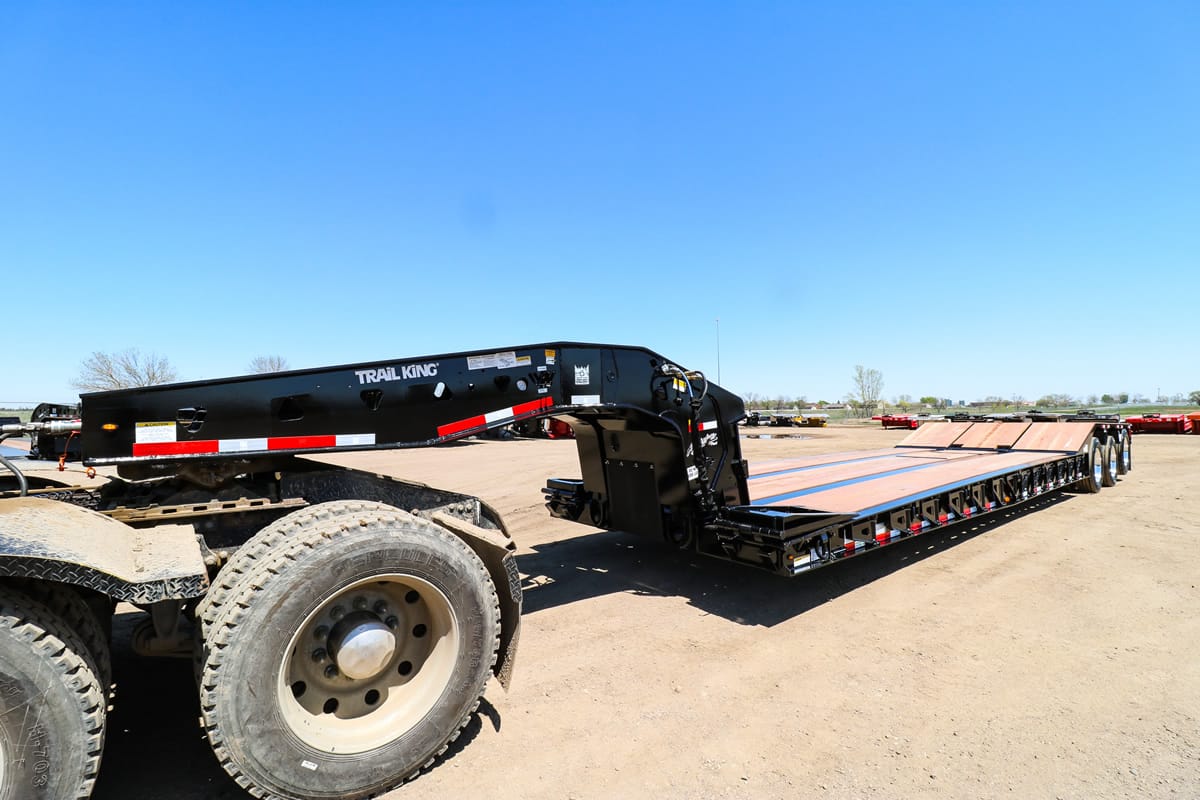

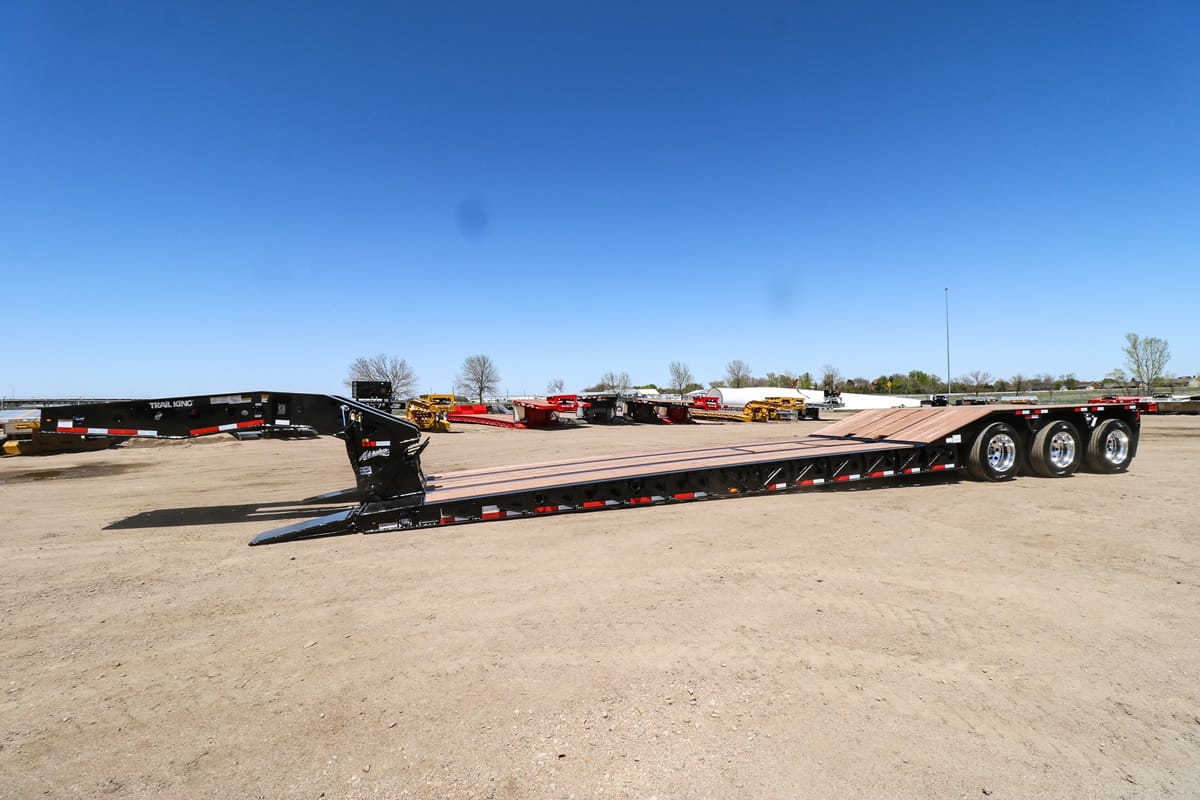

This Hydraulic Detachable Gooseneck Paver Special trailer is dependable, strong, durable, and versatile. We’ve taken our bestselling detachable lowboy and integrated its top features into this piece of equipment. Its easy-load angles and low profile create a hassle-free loading experience for construction equipment, including asphalt pavers and rollers.
Literature
Specifications
Videos
Literature
The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager.
Specifications
| PAVER SPECIAL STANDARD EQUIPMENT | TK102HDG | TK110HDG |
|---|---|---|
| Concentrated capacity (in 16′) | 92,000 lbs | 102,000 lbs. |
| Gooseneck | 11’11” | 13″ |
| 5-position gooseneck heigh adjustment +/- 3″ | X | X |
| Swing Clearance | 98″ & 86″ | 110″ & 86″ |
| 42″ front ramps w/spring assist | X | X |
| 4-beam tapered deck main frame construction | X | X |

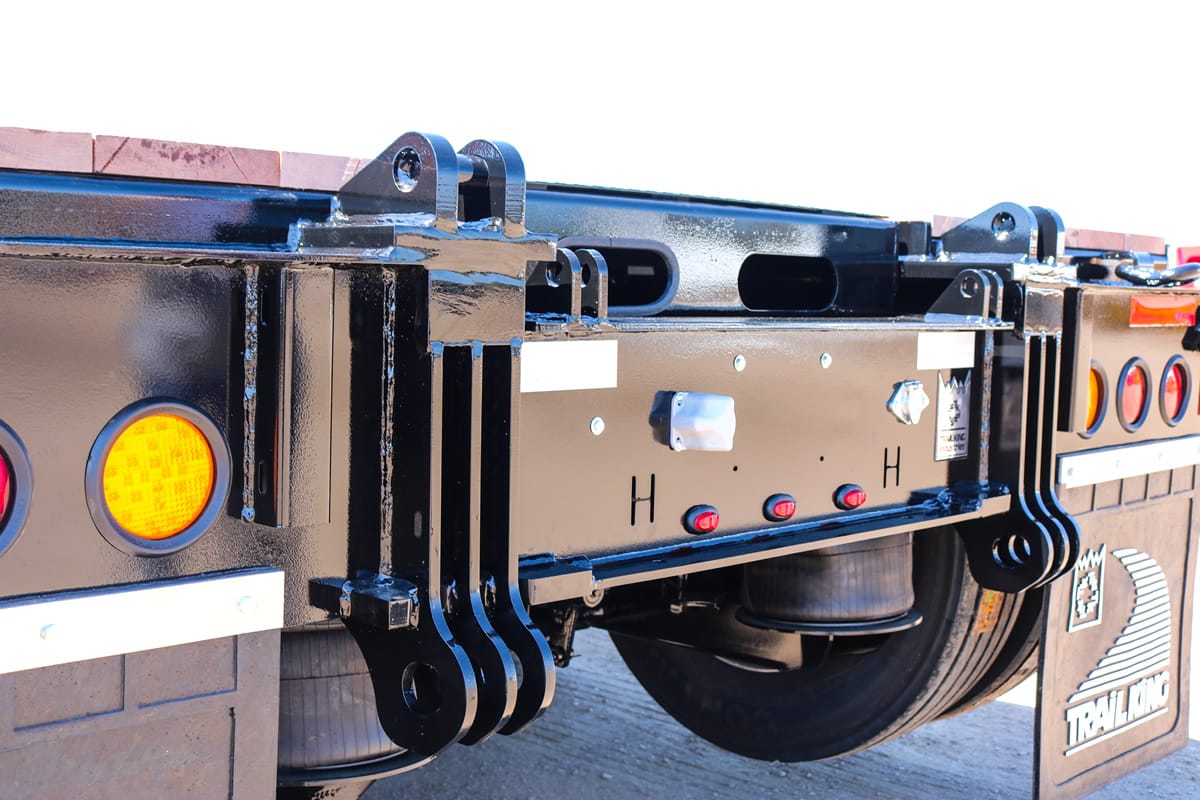

| Frame reinforced for single axle booster or flip axle | X | |

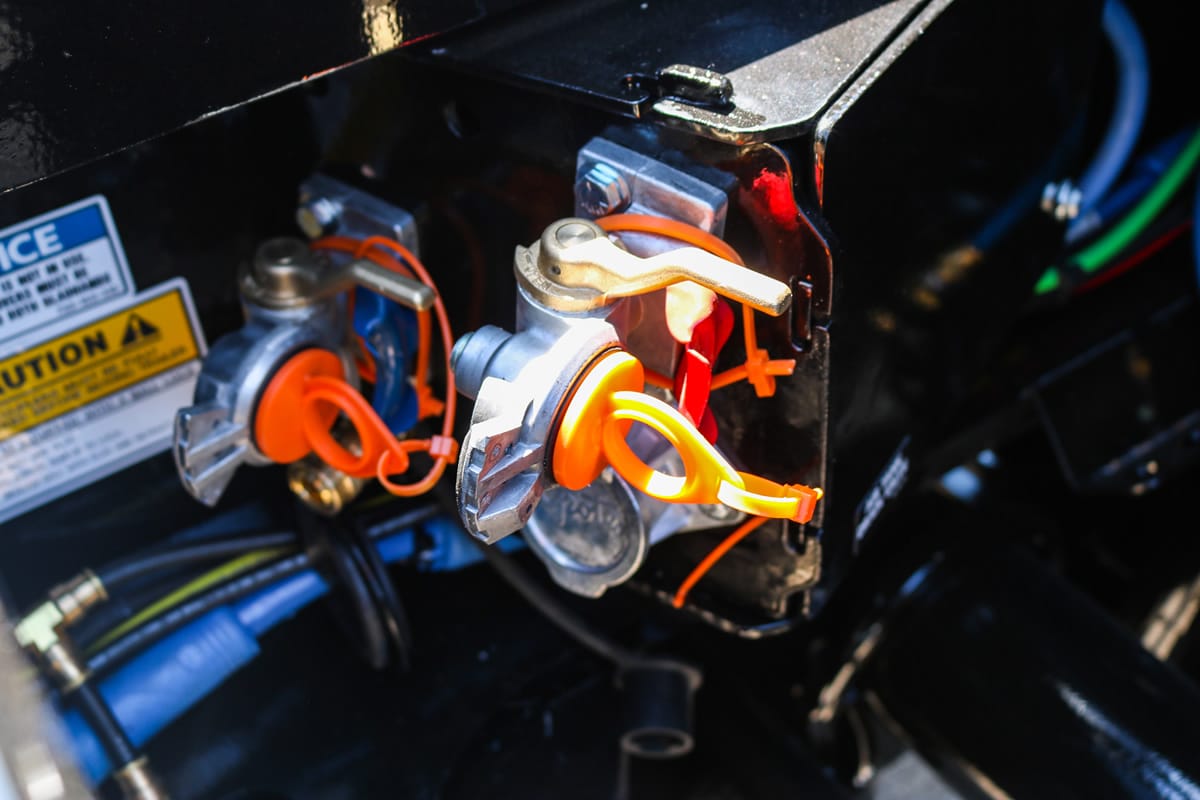

| Brackets, air and electrical for single axle booster/flip | X | |
| 22″ loaded deck height, 6″ ground clearance | X | X |
| Deck Width | 102” | 102” |
| Deck Length | 24’1” | 23’1” |

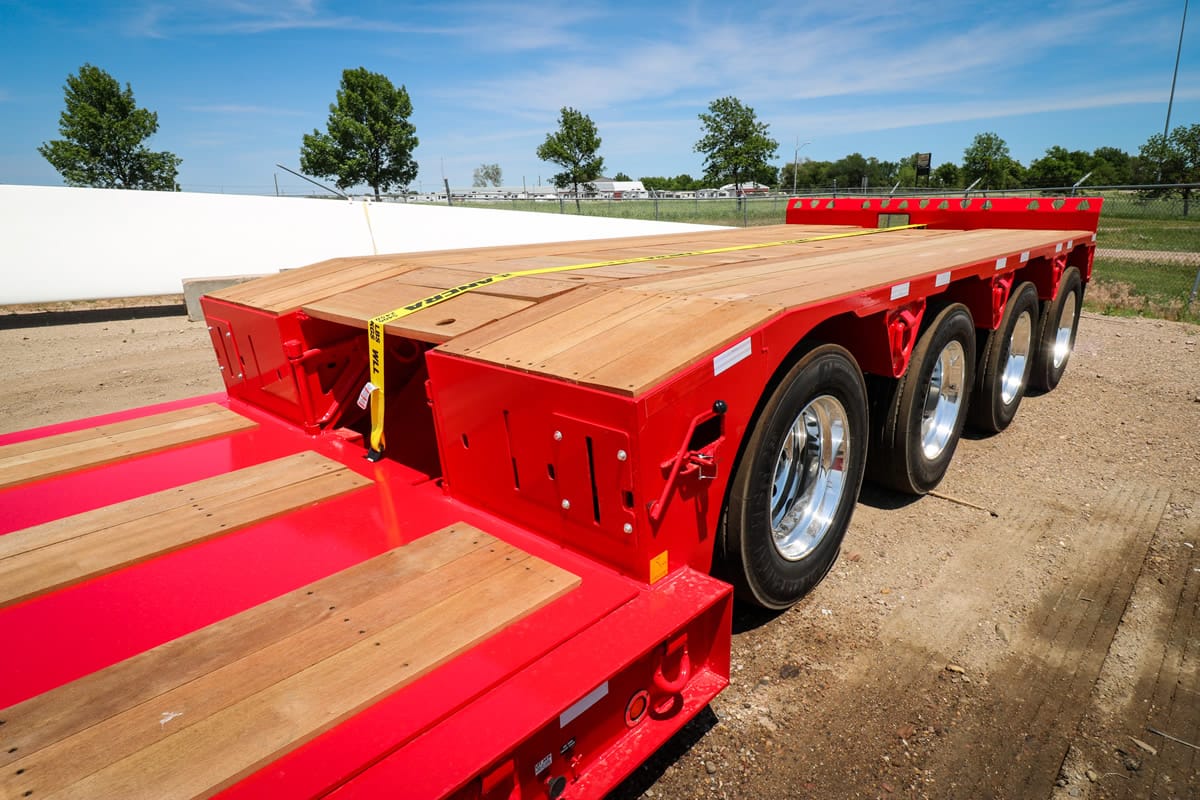

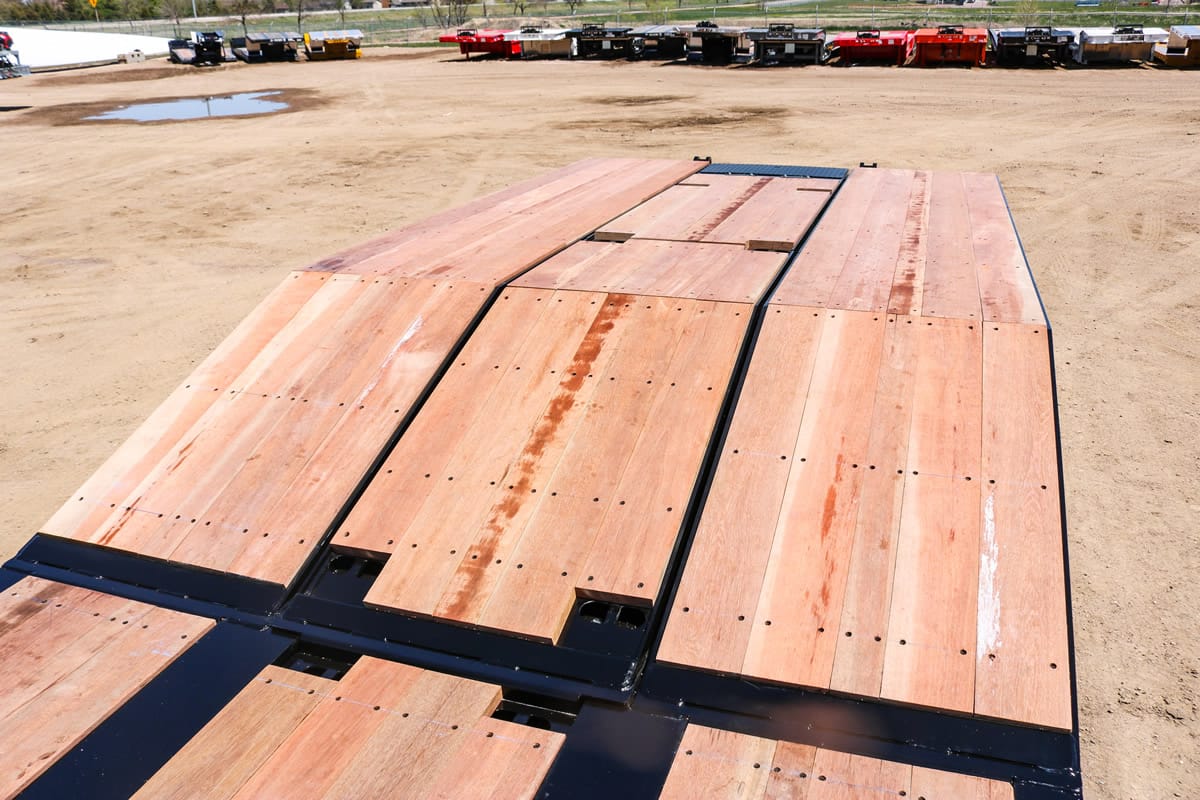

| Wood-covered wheel area w/18* slope | X | X |

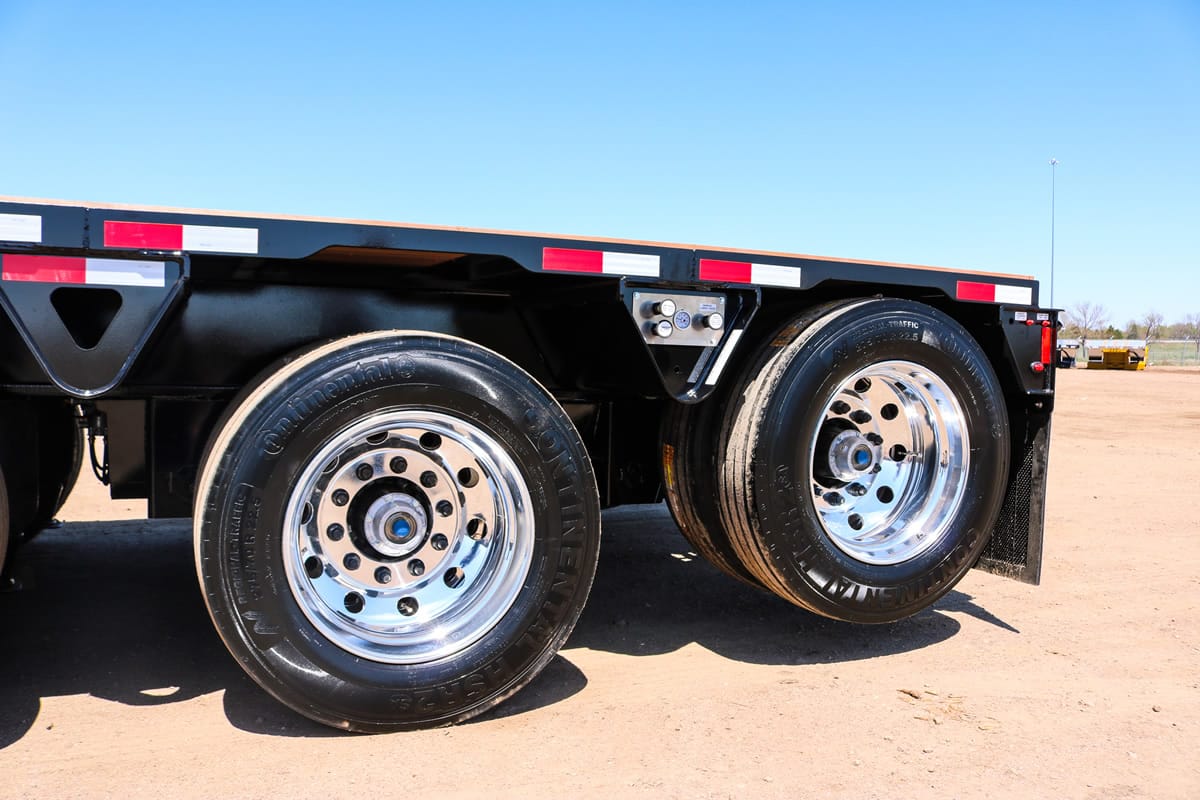

| Axle Spacing | 55” | 55” |
