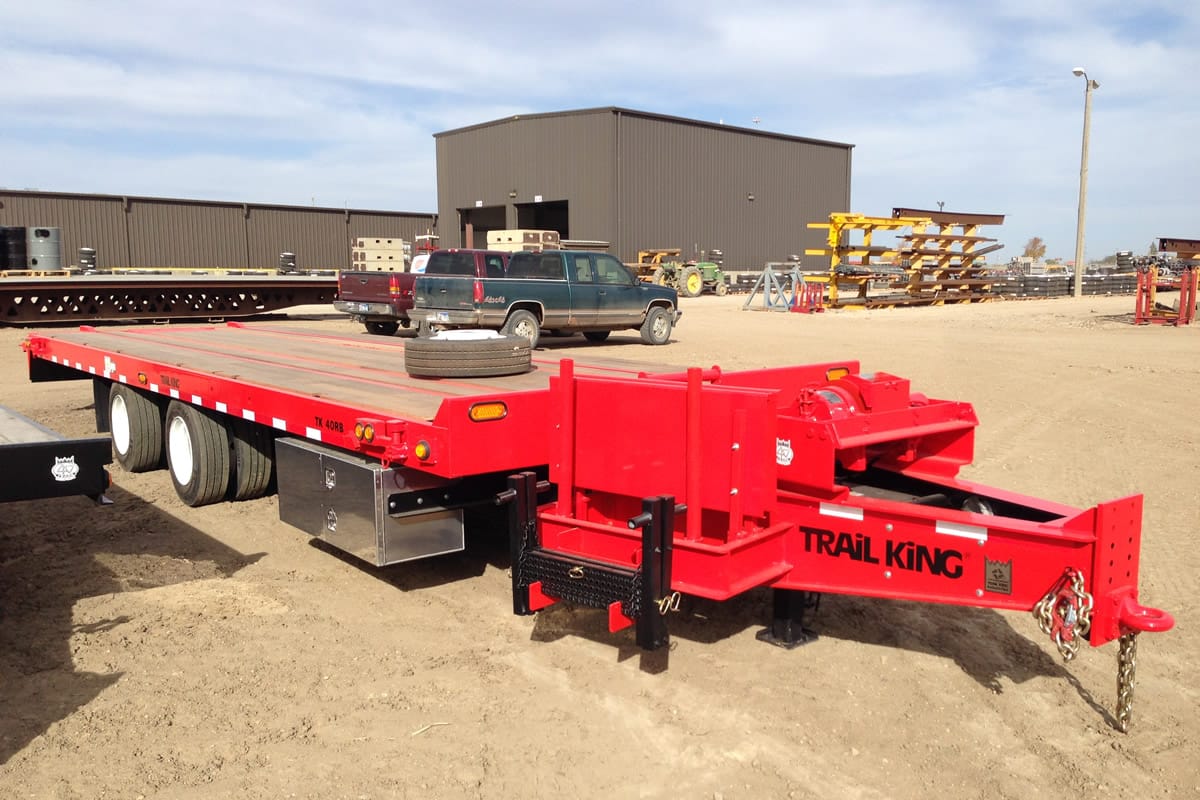

Adjustable Pintle Hitch
To accommodate a wide variety of towing vehicles, Trail King rollback trailers come with an adjustable 4-bolt pintle hitch.
Toolbox
Covered, lockable toolbox is conveniently located at the front of the trailer and is large enough to store all of your chains and tools.

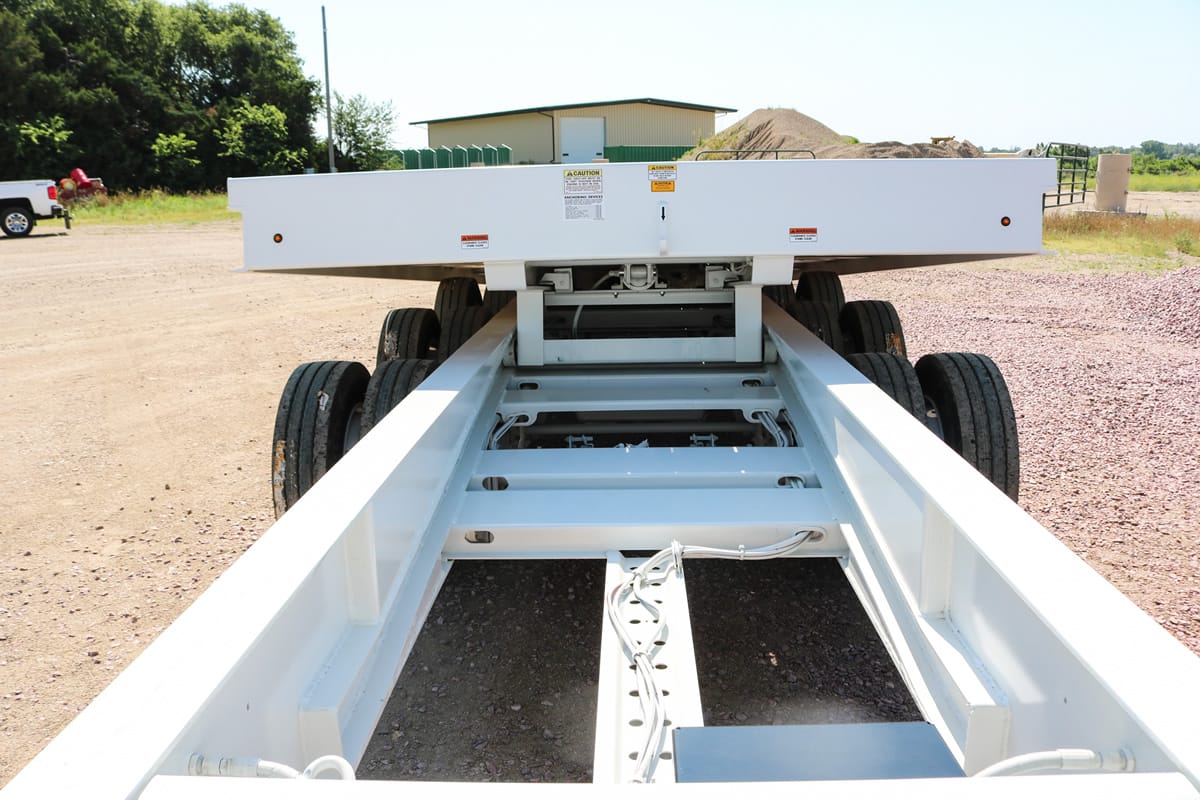

Roller Track
The roller track allows the deck to roll back in a smooth, even motion with no binding – even when the deck is fully loaded.

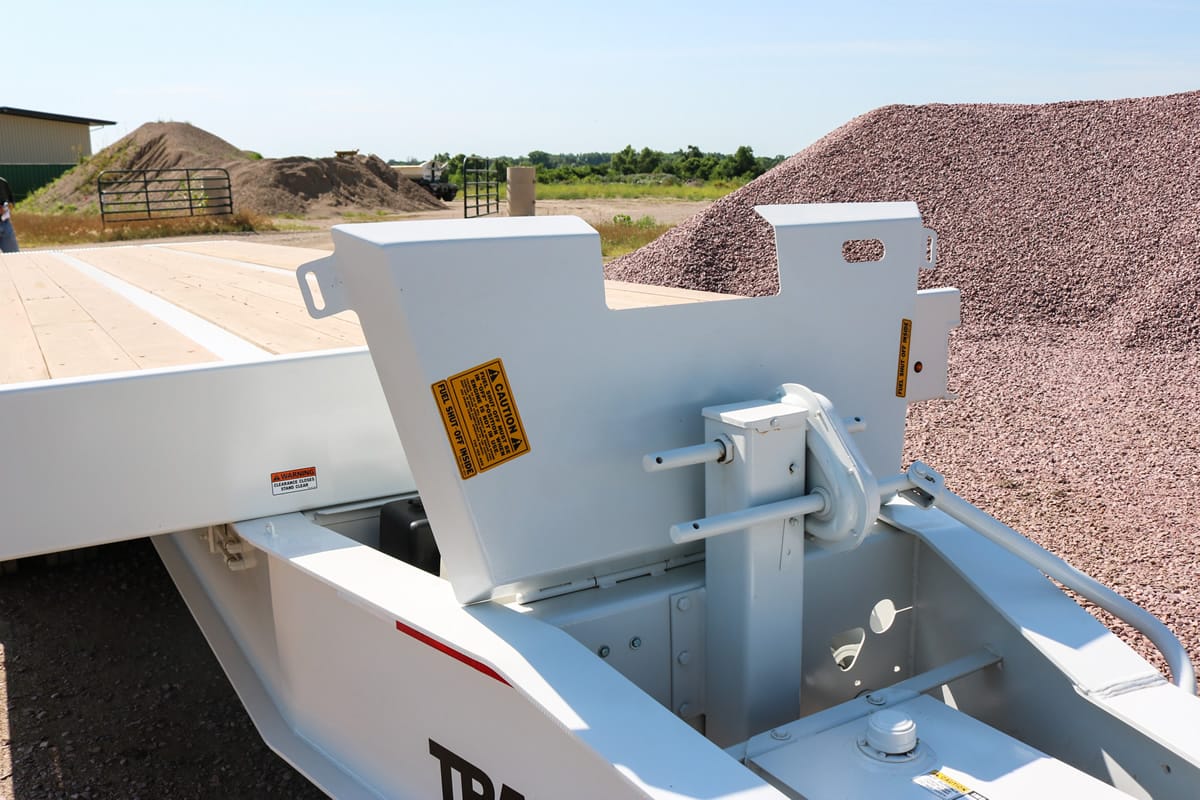

Safety Headboard
The 4 inch safety headboard provides an extra dimension of safety and load-hauling security.

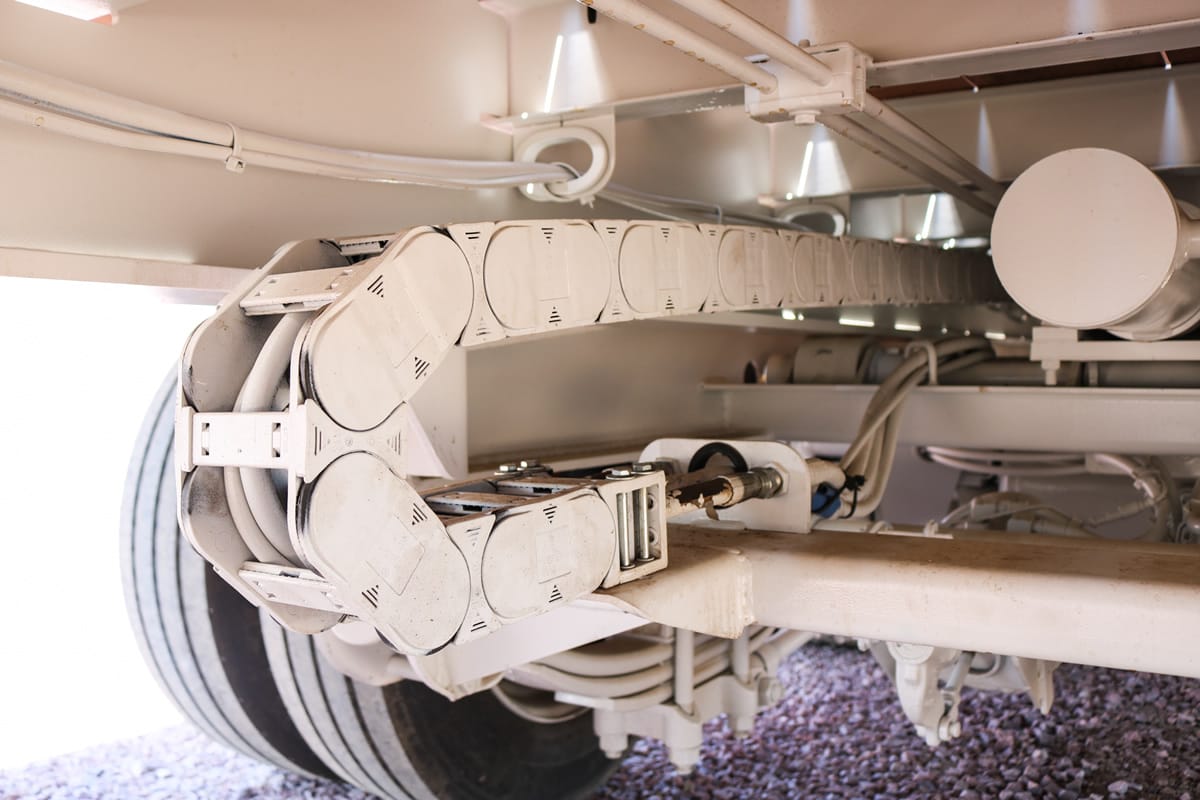

Protected Electrical System
Trail King rollback trailers feature rubber grommets wherever wiring runs through the frame or cross members, and rubber-mounted, shock-proof, sealed lights and longer, trouble free, low-maintenance performance life.

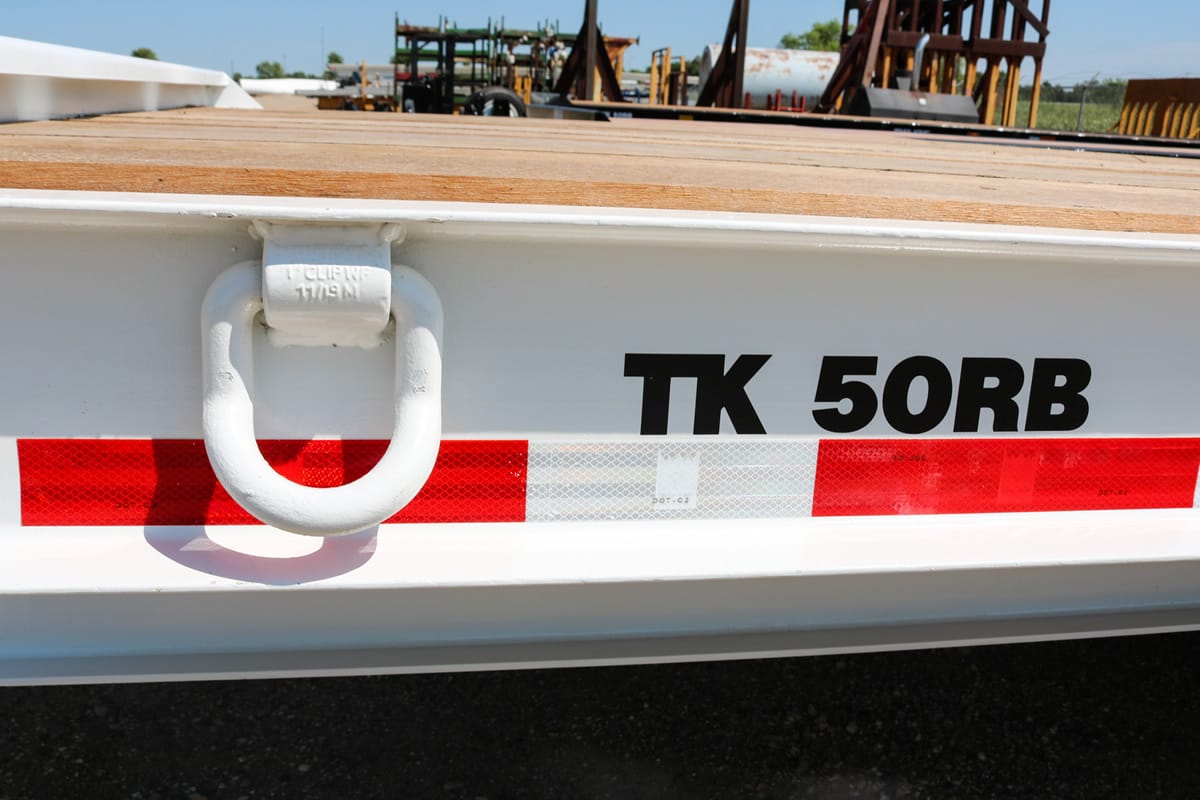

Heavy Duty D-Rings
Trail King includes heavy-duty 6 inch drop forged D-rings as standard equipment – not optional, as is the case with many manufacturers – so your rollback trailer is ready to secure even the toughest of loads.

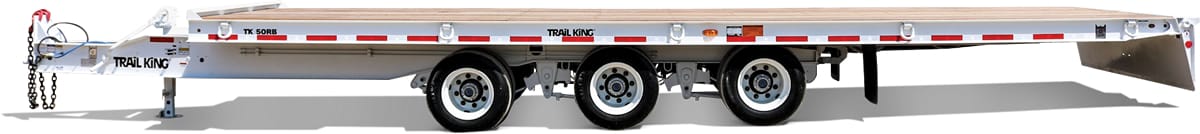

TKRB Rollback

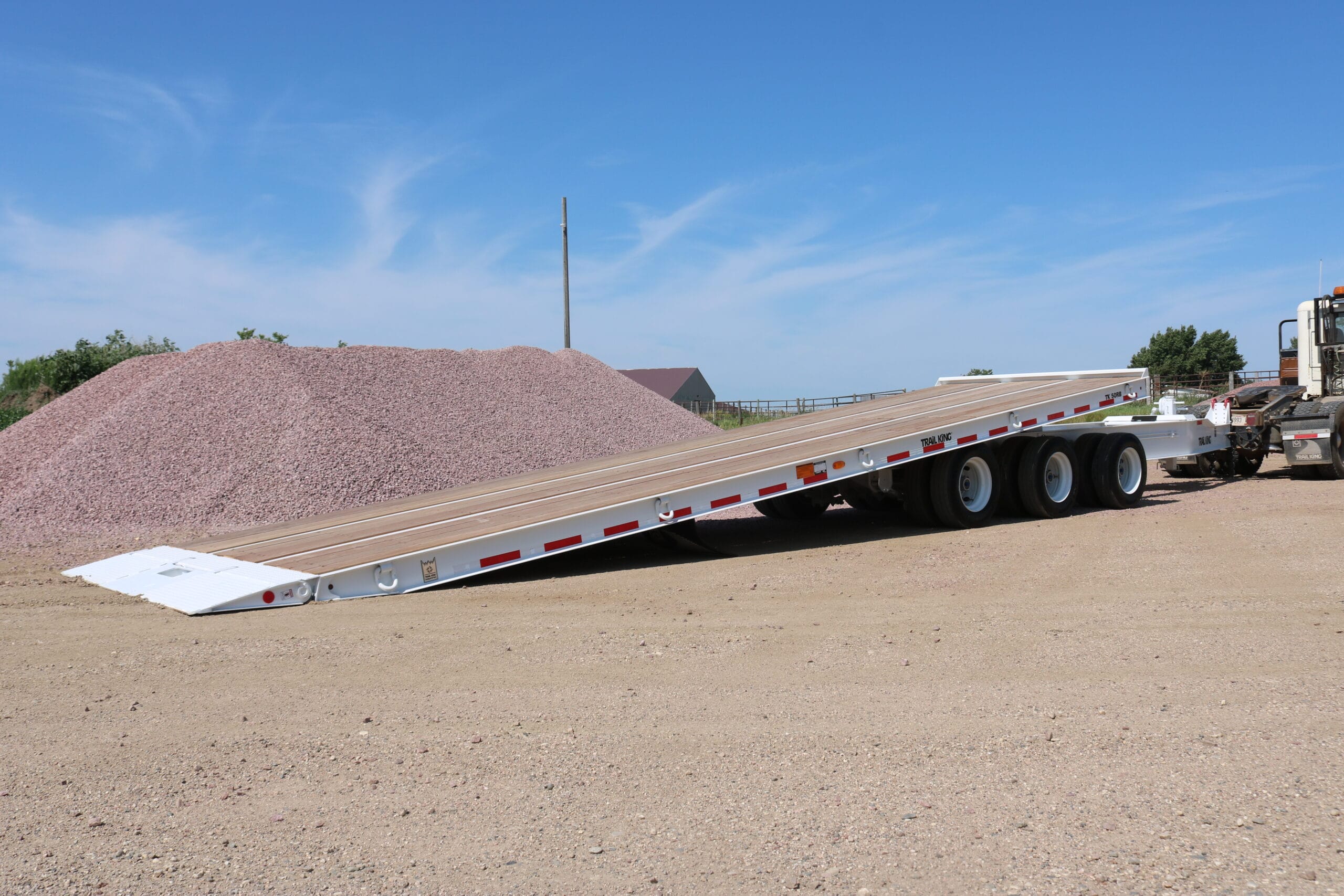

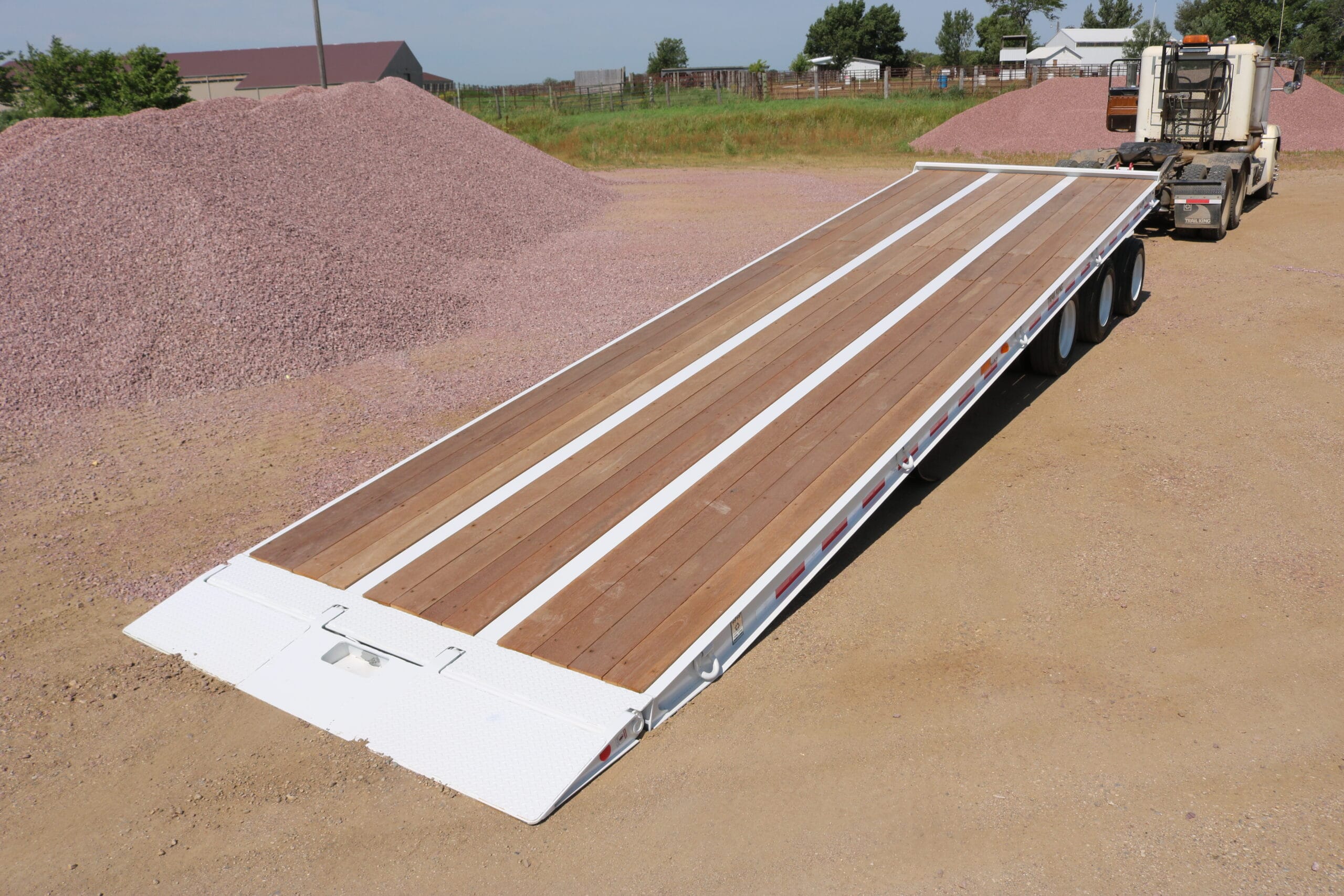

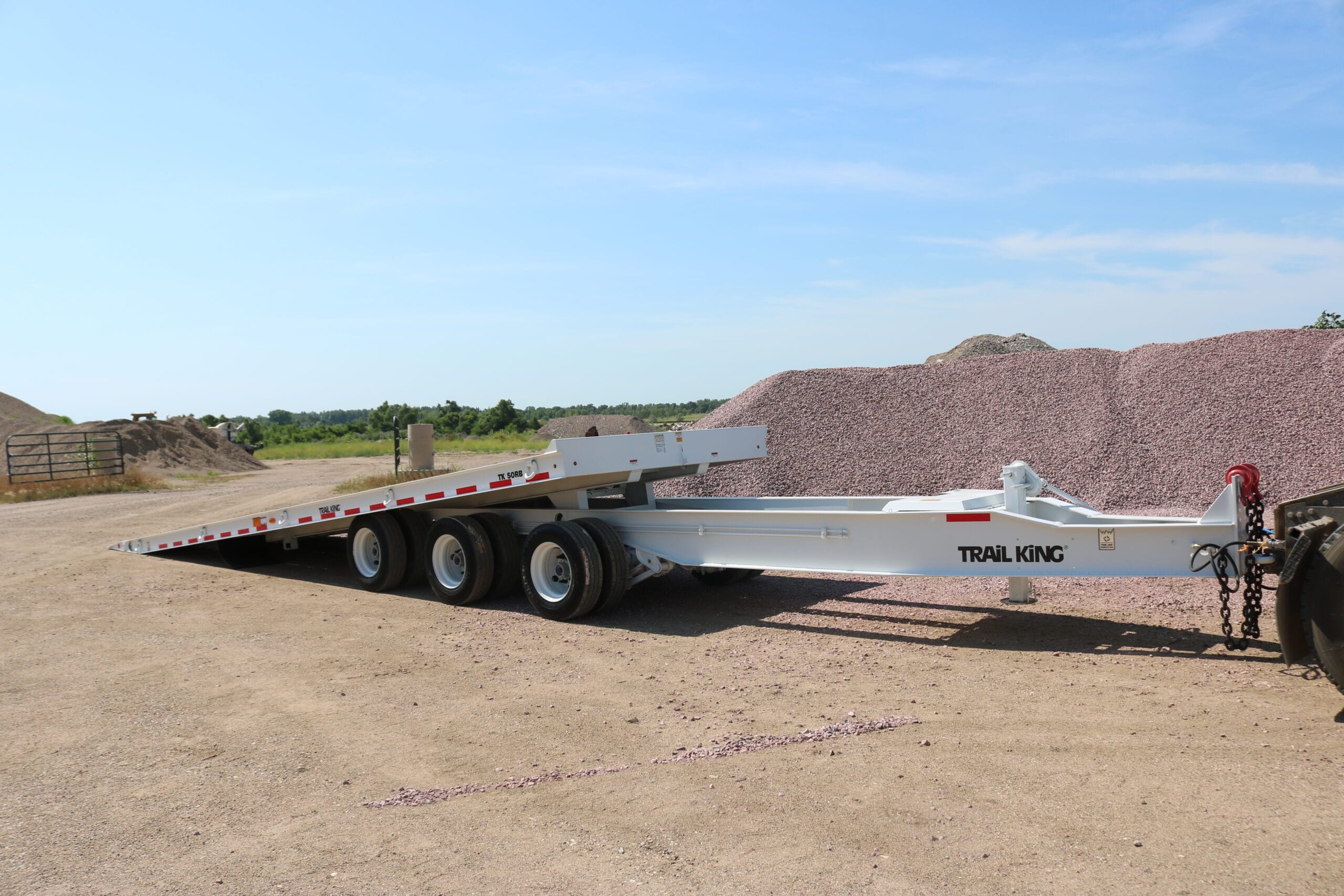

Trail King Rollback trailers are outfitted with the highest quality materials for increased durability and capacity. The continuous I-beam mainframe and I-beam cross members provide load hauling strength. With a constant 7 degree load angle for the entire length of the trailer bed, the TKRB provides a stress-free, safe and convenient operation for loading equipment.
The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager.
| TKRB Standard Equipment | TK40RB | TK50RB |
|---|---|---|
| Capacity | 40,000 lb. | 50,000 lb |
| Tongue Length | 7′ | 7’ |
| Deck Width | 102” | 102” |
| Deck Length | 28’ | 30’ |
| Pintle Eye Hitch (Adjustable Height) | 16.5” – 32″ | 16.5” – 32″ |
| Loaded Deck Height | 35.5” | 35.5” |
| Floor plate on approach plate and fold under | X | X |

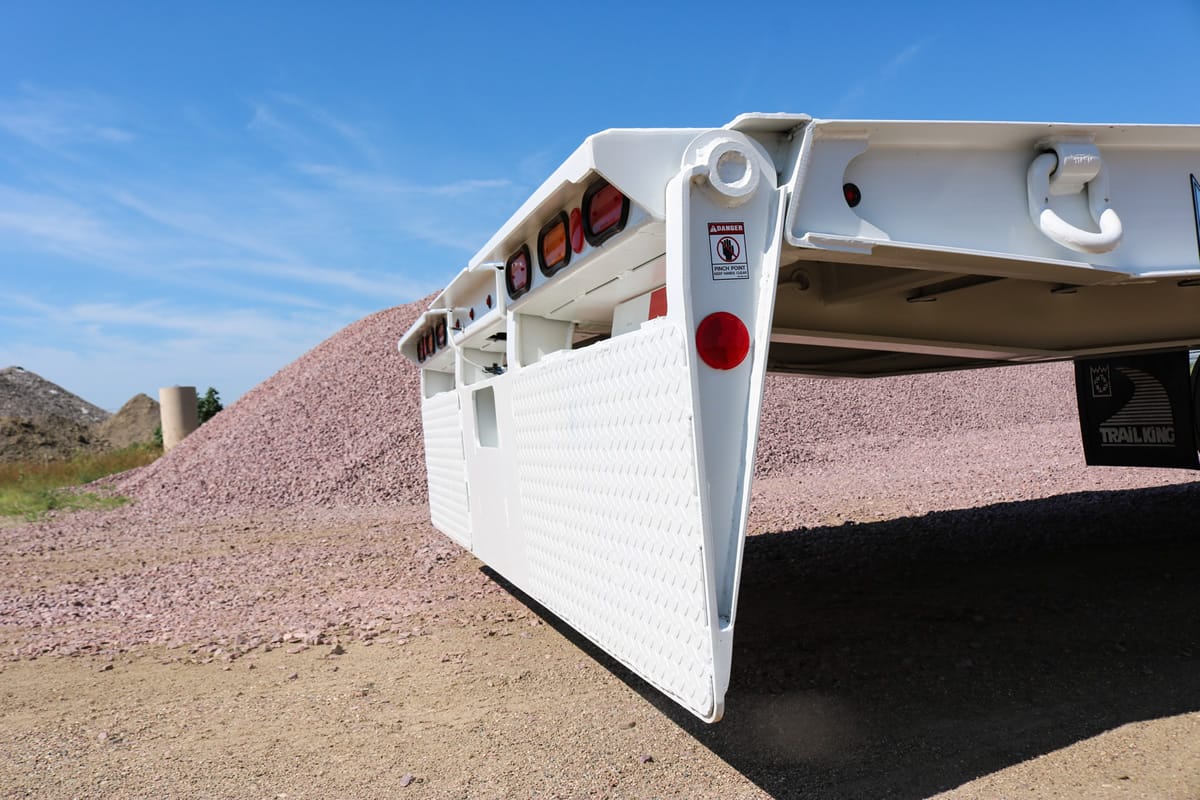

| 17” hydraulic fold-down approach plate and under-ride protection | X | X |
| Air Brakes | 12.25” x 7.5” 4S2M ABS | 12.25” x 7.5” 4S2M ABS |
| Dual Steer Disc Wheels | 6.75” x 17.5” dual steel 8-stud hub-piloted | 6.75” x 17.5” dual steel 8-stud hub-piloted |
| Tires | 215/75R x 17.5 | 215/75R x 17.5 |
| Axles | (2) 20,000 lb. / 49” spacing | (3) 20,000 lb. / 51.5” spacing |
| Spring Suspension | X | X |
| Safety chains with grab hooks | X | X |
| Covered Lockable Toolbox | X | X |
| (10) D-Rings | X | X |
| Headboard | X | X |
