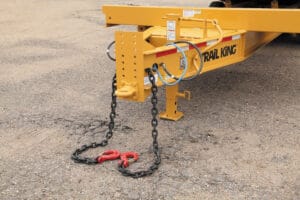

Adjustable Hitch
Accommodate a wide variety of towing vehicles with an adjustable 4-bolt hitch rated for the full GVWR of the trailer.

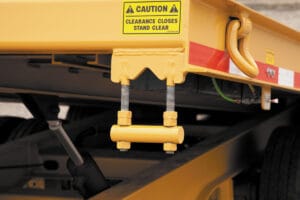

Adjustable Platform Lock
Keep your deck tram accidentally tilting while in the transport mode with the adjustable platform Iock mechanism and satety Iock pin.

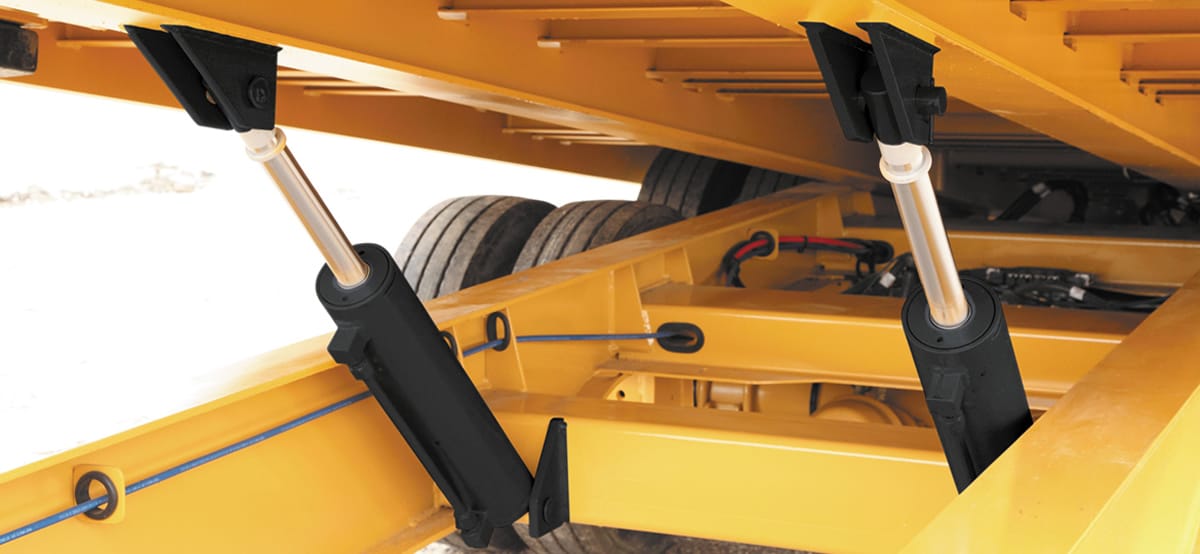

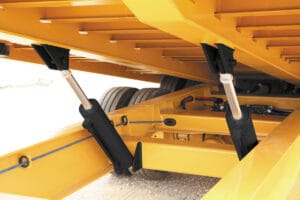

Platform Cushioning Cylinders
Dual platform cushioning cylinders make loading and unloading a smooth operation.

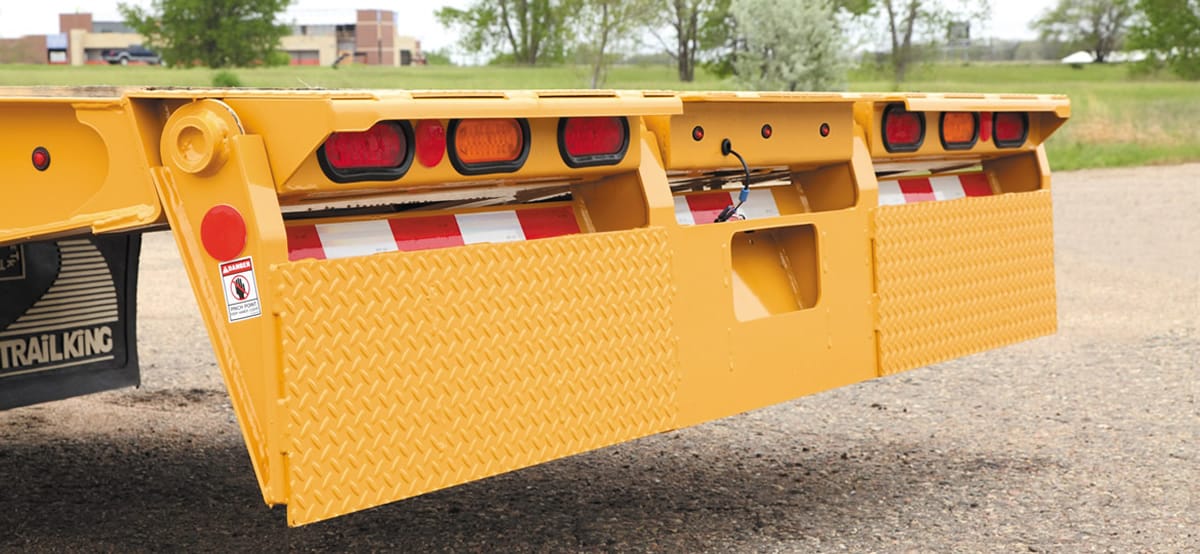

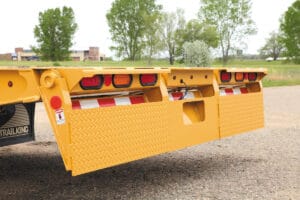

Fold-Down Approach Plate
Fold-down approach plate is designed to meet U.S. Federal under-ride protection requirements. lt also achieves the lowest possible load angles and provides extra protection for tail lights.

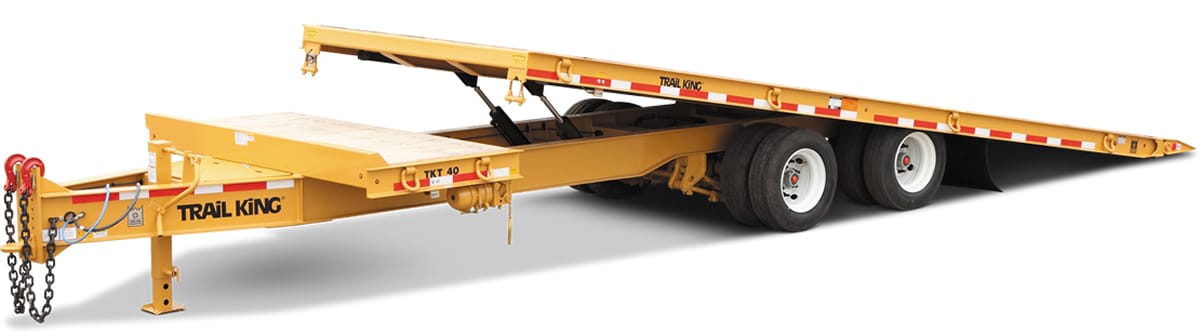

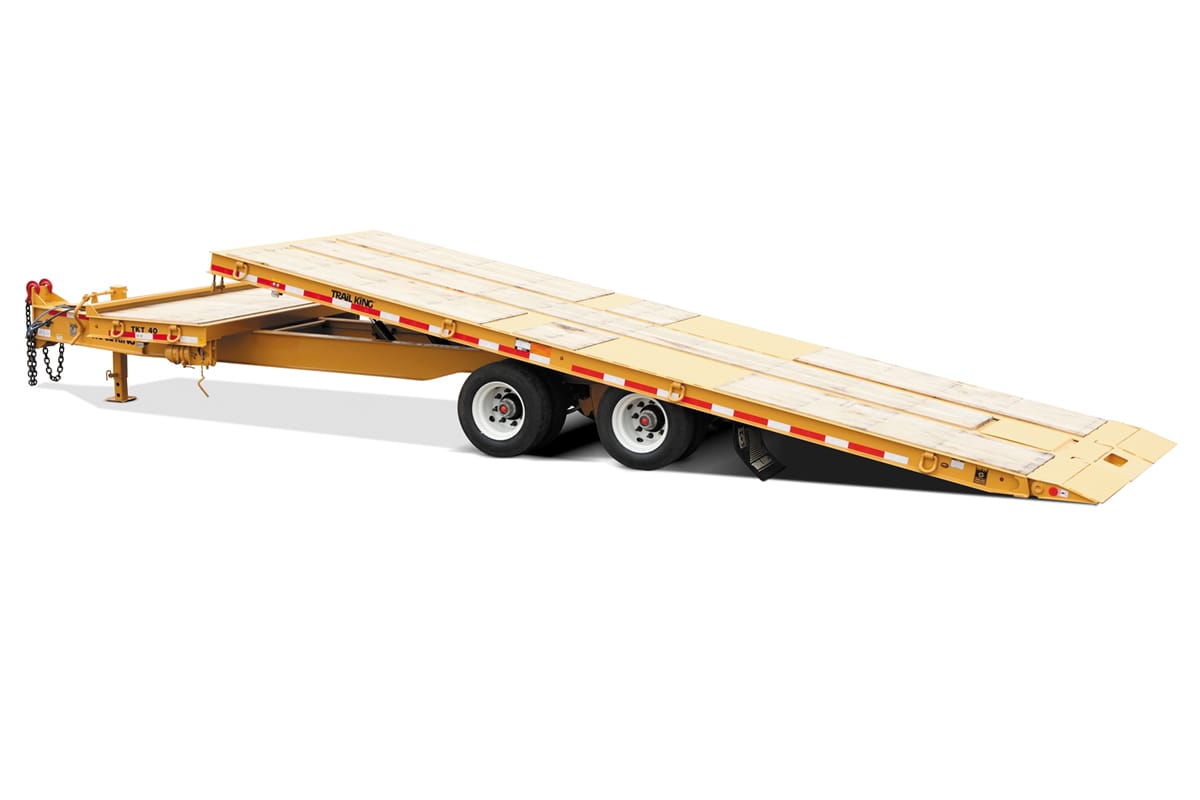

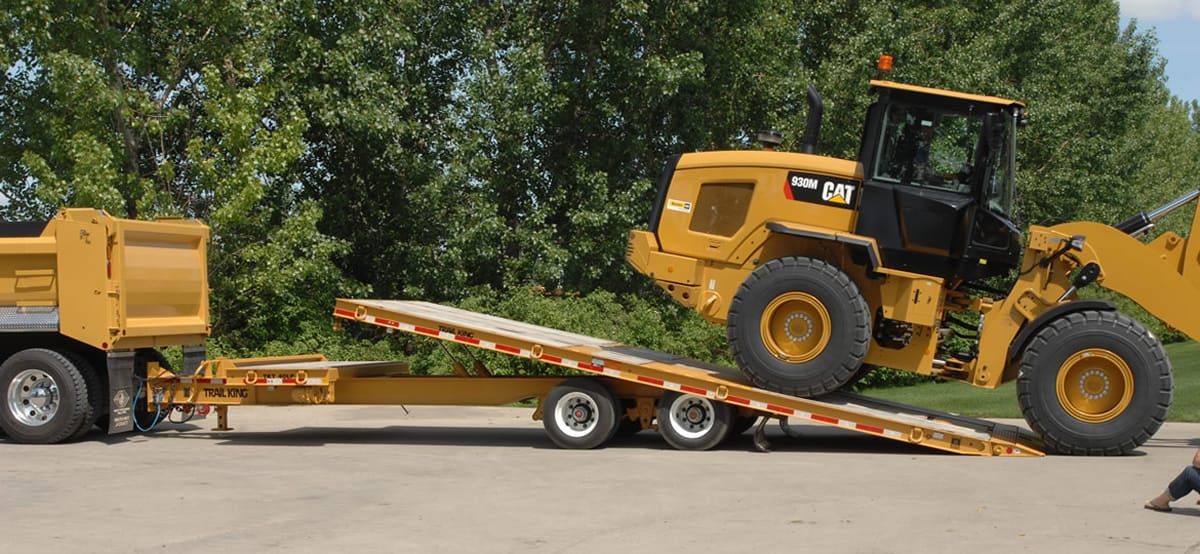

TKTLP Tilt
Trail King’s Tilt trailer is equipped to haul medium-sized to heavy-duty equipment with easy loading and unloading. Our tilt trailers have powerful suspension systems, strong steel main frames, and platform-cushioning cylinders that make hauling long-distance or over rough terrain smoother and more secure.
The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager.
| TKLP Standard Equipment | TKT24LP | TKT40LP | TKT50LP | TKT60LP |
|---|---|---|---|---|
| Payload Capacity | 24,000 lb. | 40,000 lb. | 50,000 lb. | 60,000 lb. |
| 5′ Tongue Length | X | X | X | X |
| Pintle Eye Hitch (Adjustable Height) | 19.5″ to 30.5″ | 18.5″ to 30″ | 18.5″ to 30″ | 18.5″ to 30″ |
| 12,000 lb. HD Jack with Spring foot | X | |||
| 25,000 lb. Single two-speed langing gear | x | x | x | |
| Deck Length (Stationary / Tilt) | 4′ Stat/ 24′ Tilt | 4′ Stat/ 24′ Tilt | 6′ Stat/ 24′ Tilt | 6′ Stat/ 24′ Tilt |
| Deck Width | 102″ | 102″ | 102″ | 102″ |
| Loaded Deck Height | 34″ | 33″ | 33″ | 33″ |
| Structural Steel Main Frame | X | X | X | X |

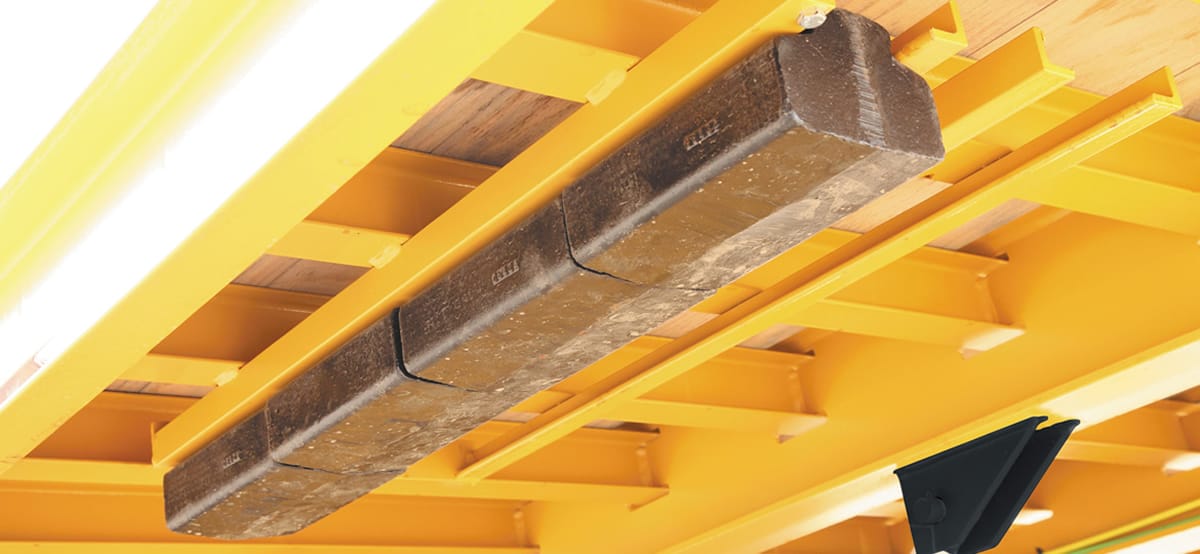

| 1.5″ Oak (Raised) Decking | X | X | X | X |
| (12) D-Rings: (4) on Stationary Deck – (8) on Tilt Deck | X | X | X | X |
| 12 Degree Tilted Deck Slope | X | X | X | X |
| Hydraulic Cushioning Cylinder | 2 | 2 | 2 | 2 |
| Manual Deck Lock | X | X | X | X |
| Fold-Down Approach & Under Ride Protection | X | X | X | X |
| Floor Plate on the Approach & Fold-Down | .25” | .25” | .25” | .25” |
| Axles | 2) 12,000 lb. | (2) 22,500 lb. | (3) 22,500 lb. | (3) 22,500 lb. |
| Suspension | Hutch 9700 | Hutch 9700 | Hutch 9700 | Hutch 9700 |
| Brakes | Electric | 12.25″ X 7.5″ | 12.25″ X 7.5″ | 12.25″ X 7.5″ |
| ABS | N/A | 4S2M | 4S2M | 4S2M |
| Dual Steel Disc Wheels (8 Hole) | 6″ X 16″ | 6.75″ X 17.5″ | 6.75″ X 17.5″ | 6.75″ X 17.5″ |
| Tires | 235/80R x 16 | 215/75R x 17.5 | 215/75R x 17.5 | 235/75R x 17.5 |
| Safety Chains with Grab Hooks | X | X | X | X |
| Lockable Toolbox | X | X | X | X |
| Headboard | X | X | X | X |
| Registration Holder | X | X | X | X |
| LED Lights | X | X | X | X |

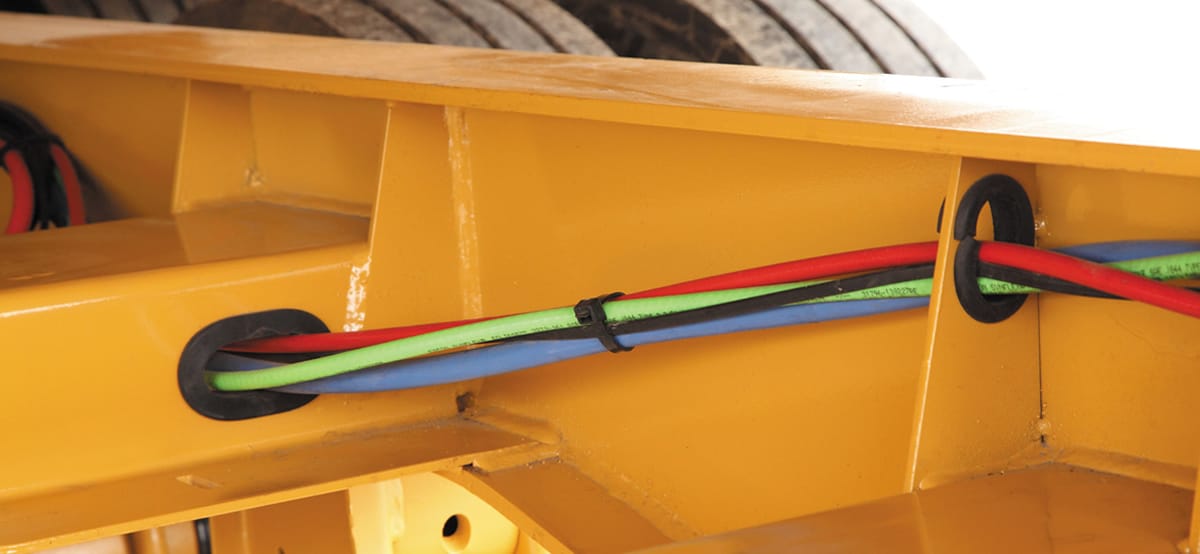

| Rubber Mounted Sealed Lights w/ Sealed Harness System | X | X | X | X |
| Electrical System per DOT Regulations | X | X | X | X |
| Mud Flaps | X | X | X | X |
| Red and White Conspicuity Markings | X | X | X | X |
