Adjustable Hitch
Accommodate a wide variety of towing vehicles with an adjustable 4-bolt hitch rated for the full GVWR of the trailer. Available in ball hitch or pintle hitch configurations.
Lightweight Ramps

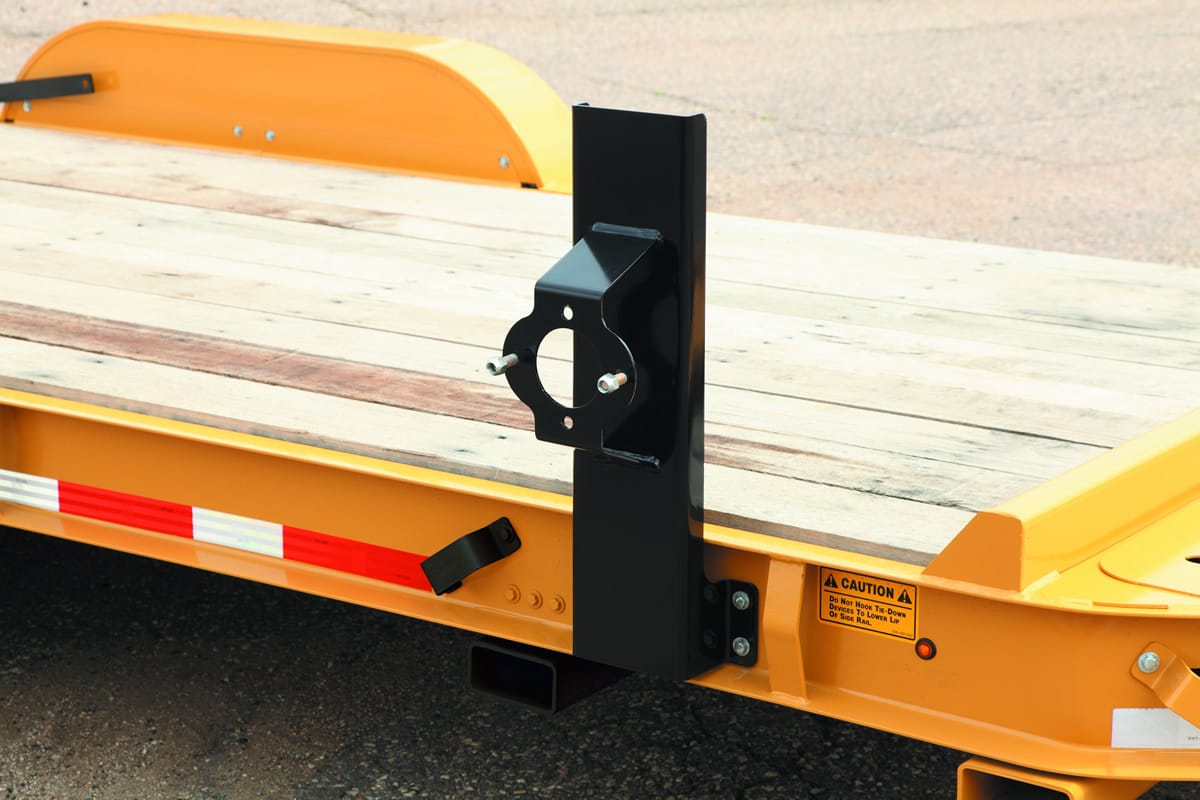

60 inch lightweight ramps with pin on stow bar and spring assist.
Tie-Down Brackets
lncludes 6 heavy-duty tie-down brackets as standard equipment for securely transporting your toughest loads.

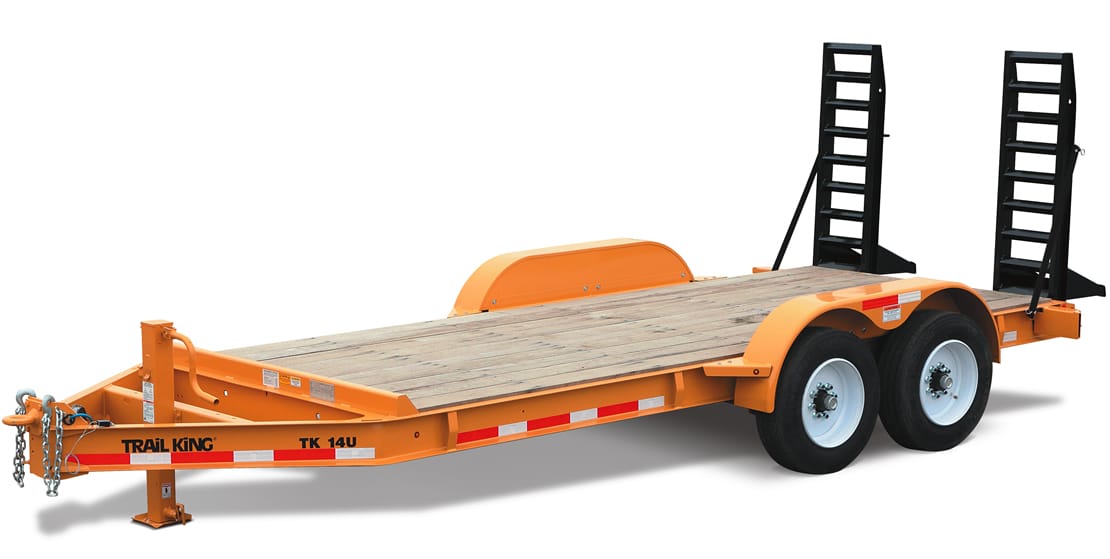

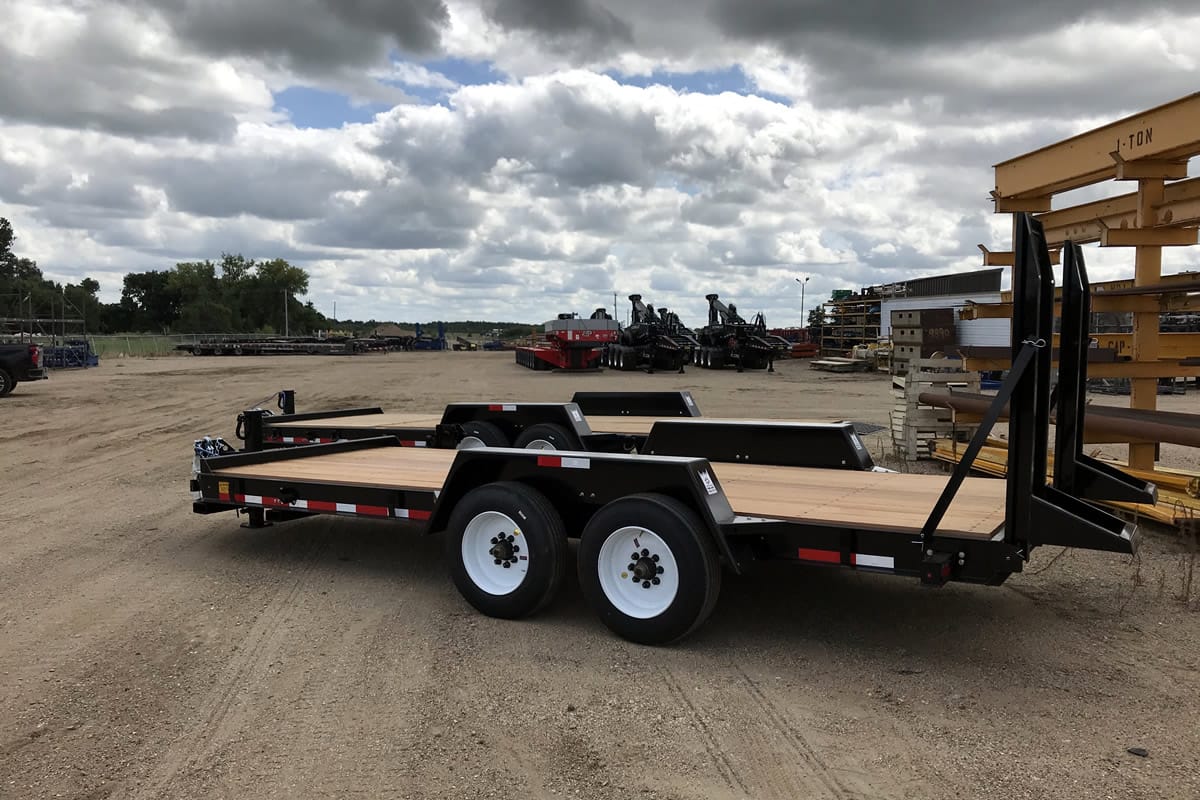

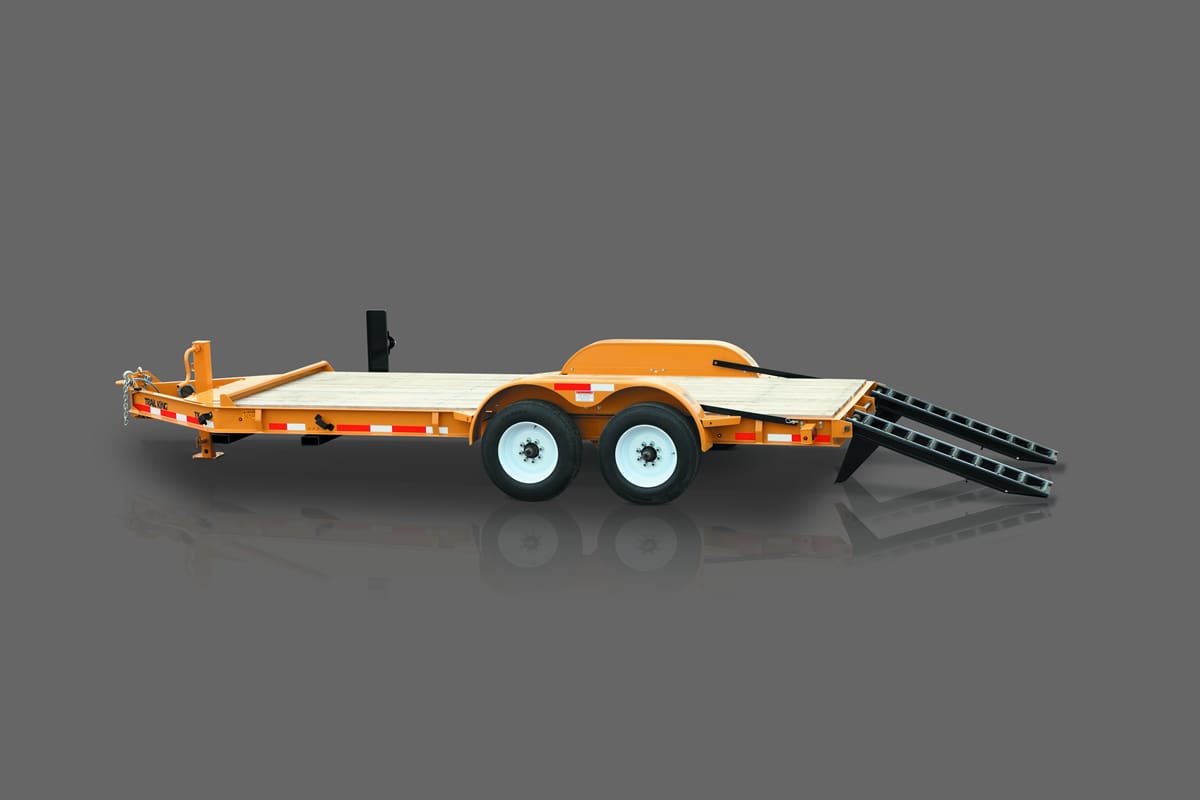

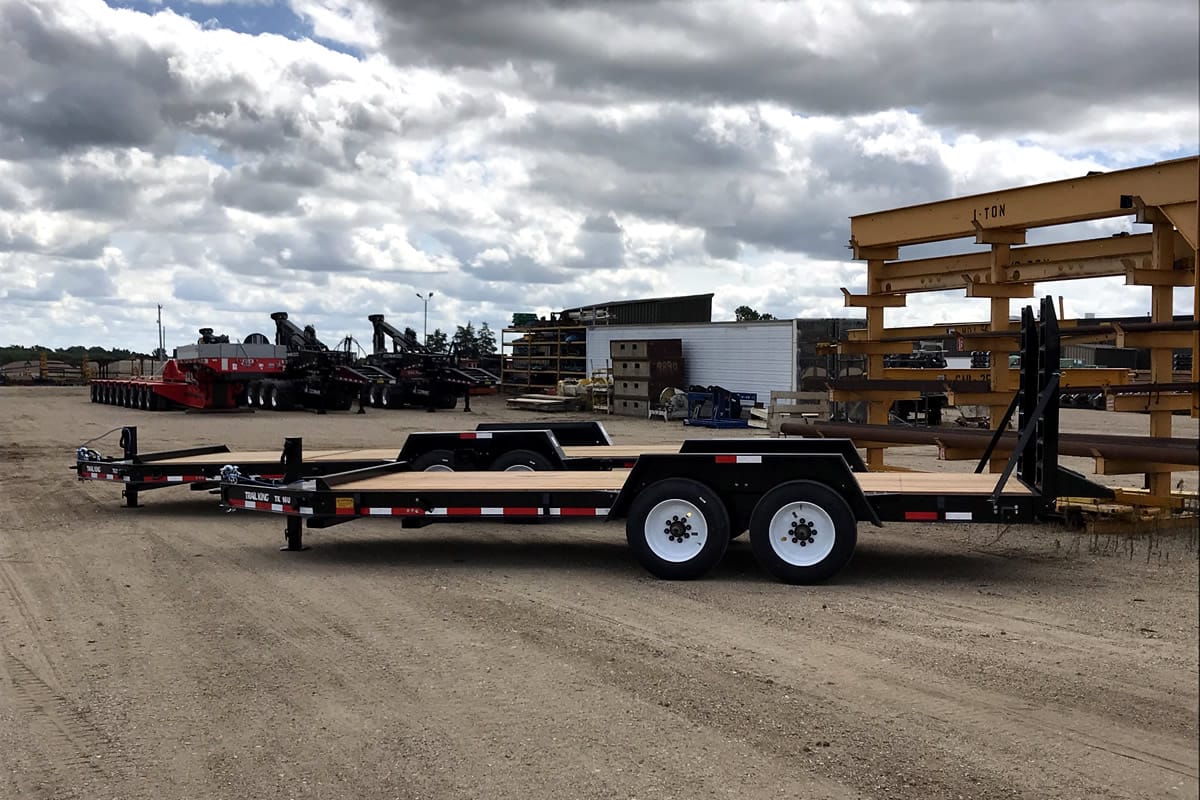

TKU Utility
Our Utility trailer is manufactured to be small, strong, and stable. These models have a 12,000-lb to 16,000-lb capacity, including self-supporting, lightweight ramps that create secure loading for versatility and maximum payload.
The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager.
Trail King TKU Utility Trailer
| TKU Standard Equipment | TK12U | TK14U | TK16U |
|---|---|---|---|
| Payload Capacity | 12,000 lb. | 14,000 lb. | 16,000 lb. |
| Structural Steel Main Frame | X | X | X |
| Overall Width | 102” | 102” | 102” |
| Deck Width between Fenders | 82” | 82” | 82” |
| Overall Deck Length | 16’ | 16’ | 16’ |
| Loaded Deck Height | 23” | 23” | 23” |

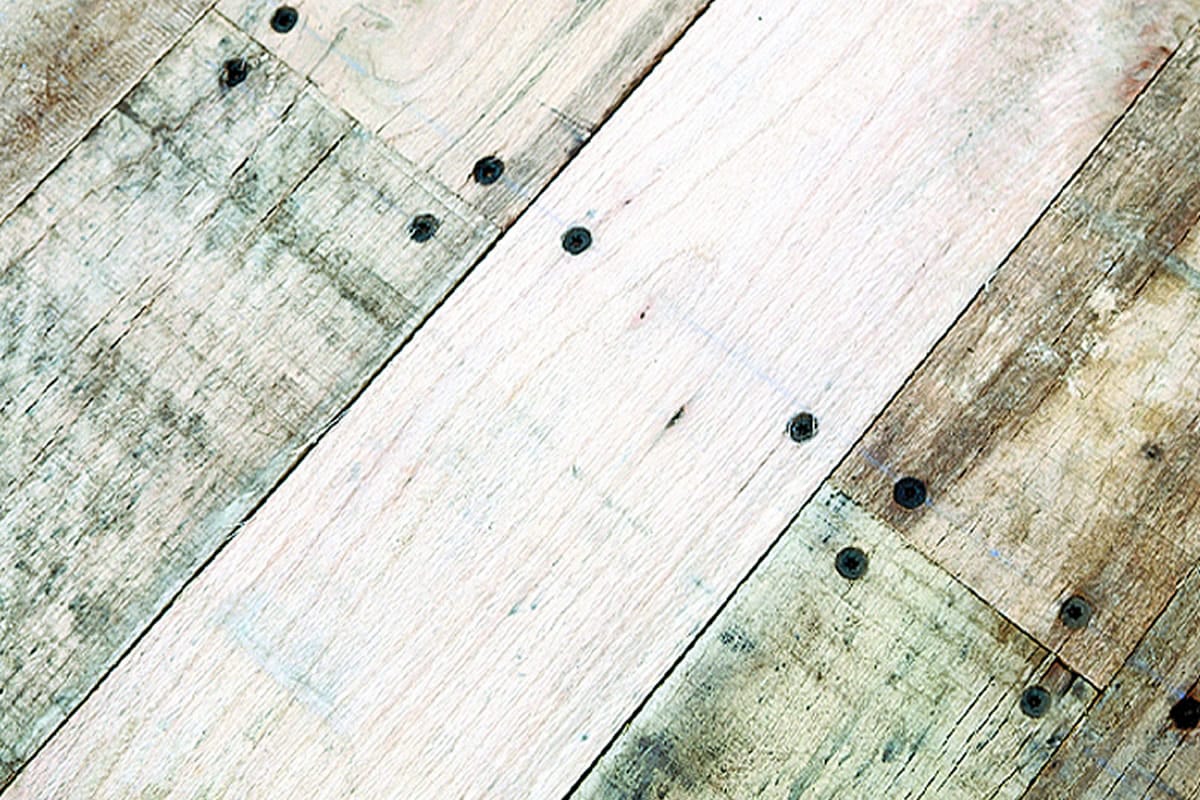

| 1.5″ Oak (Raised) Decking | X | X | X |
| Torflex Axles | (2) 7,000 lb. | (2) 7,000 lb. | (2) 8,000 lb. |

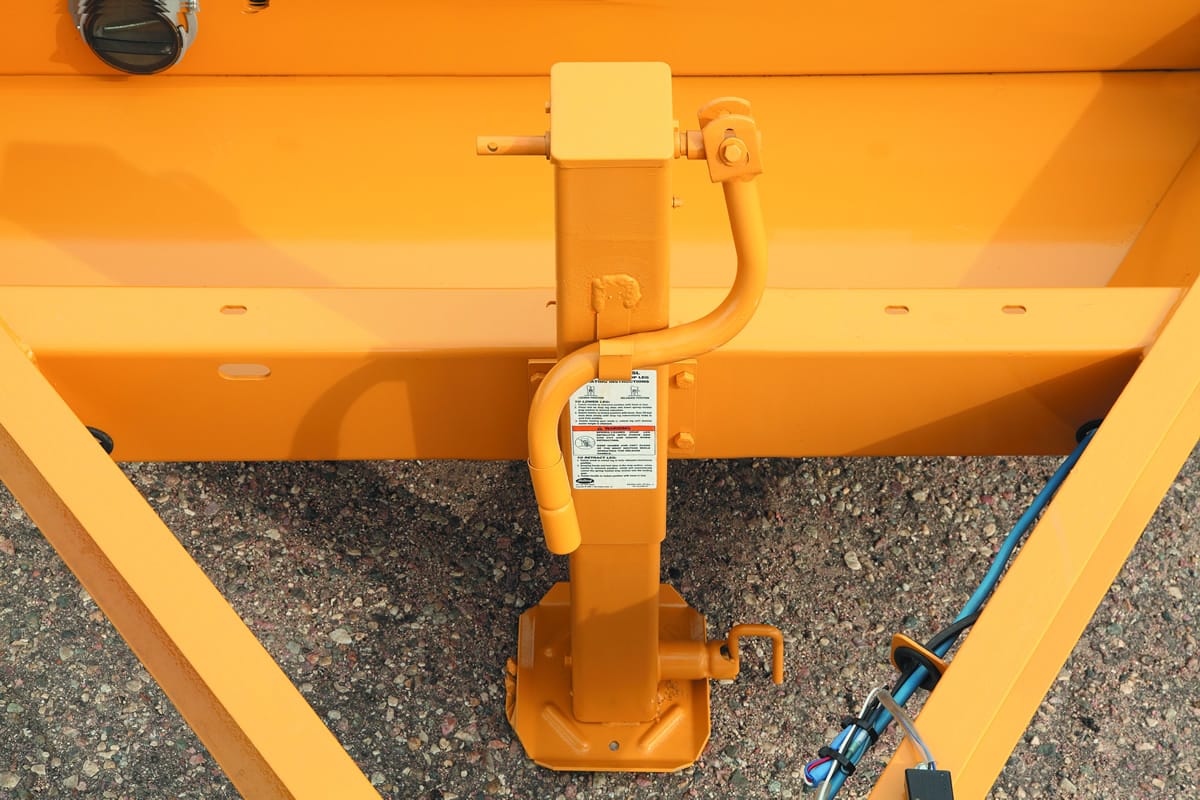

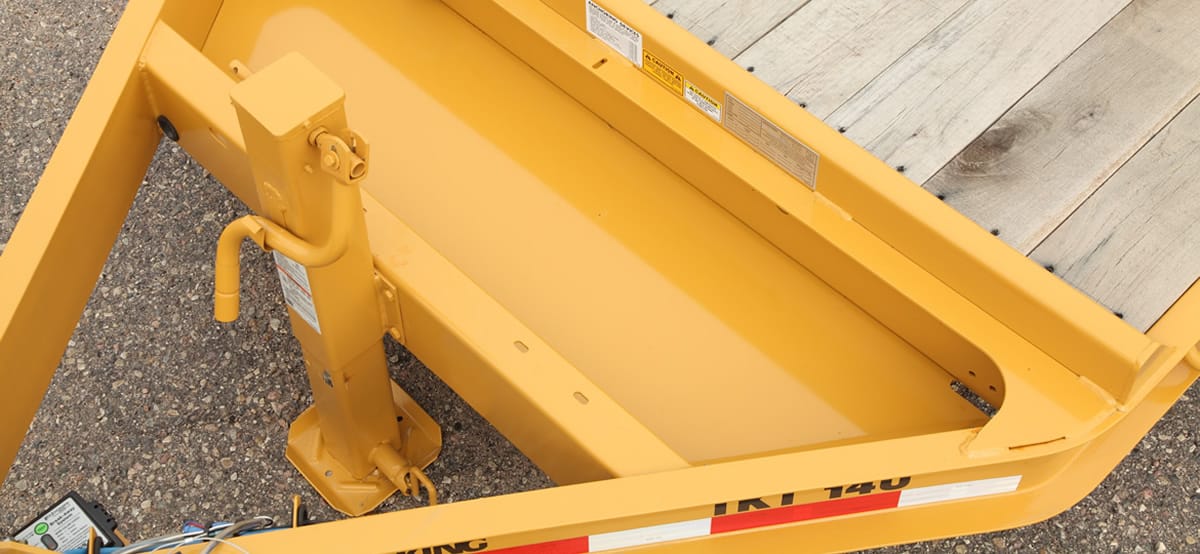

| 12,000 HD Jack with Spring Foot | X | X | X |
| 4-Bolt Pintle Eye Hitch, adjustable range | 19” – 23.5” | 19” – 23.5” | 19” – 23.5” |
| (6) Tie-Down Brackets | X | X | X |
| 5’ Self-Supporting Loading Ramps | X | X | X |
| Electrical System per DOT Regulations | X | X | X |

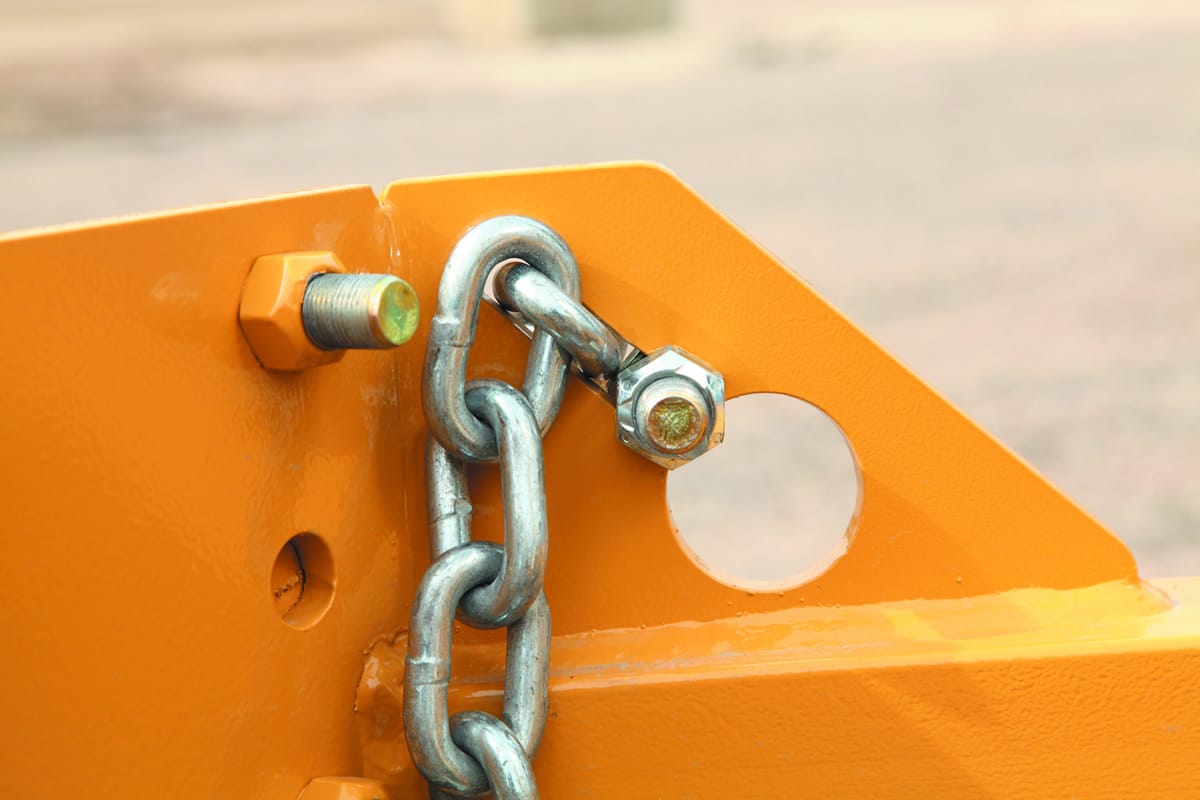

| Safety Chains with Grab Hooks | X | X | X |
| 14 Gauge Fenders | X | X | X |

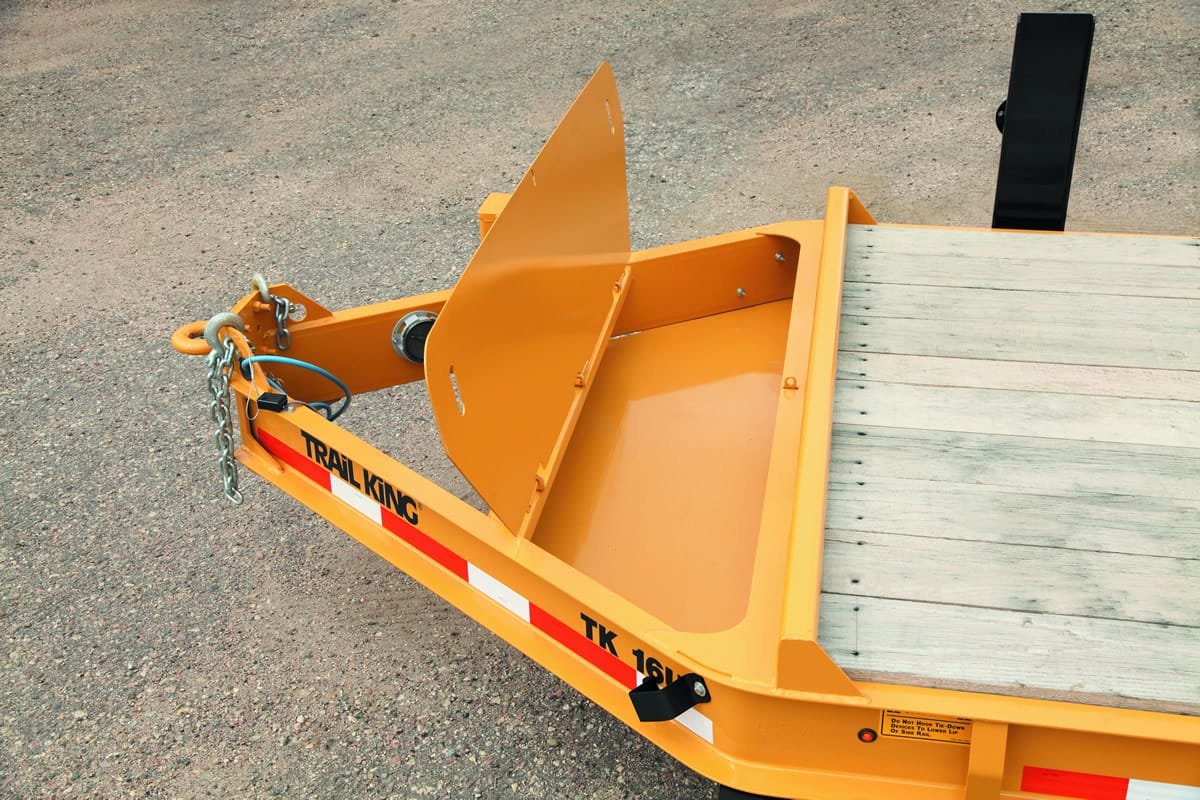

| Headboard | X | X | X |

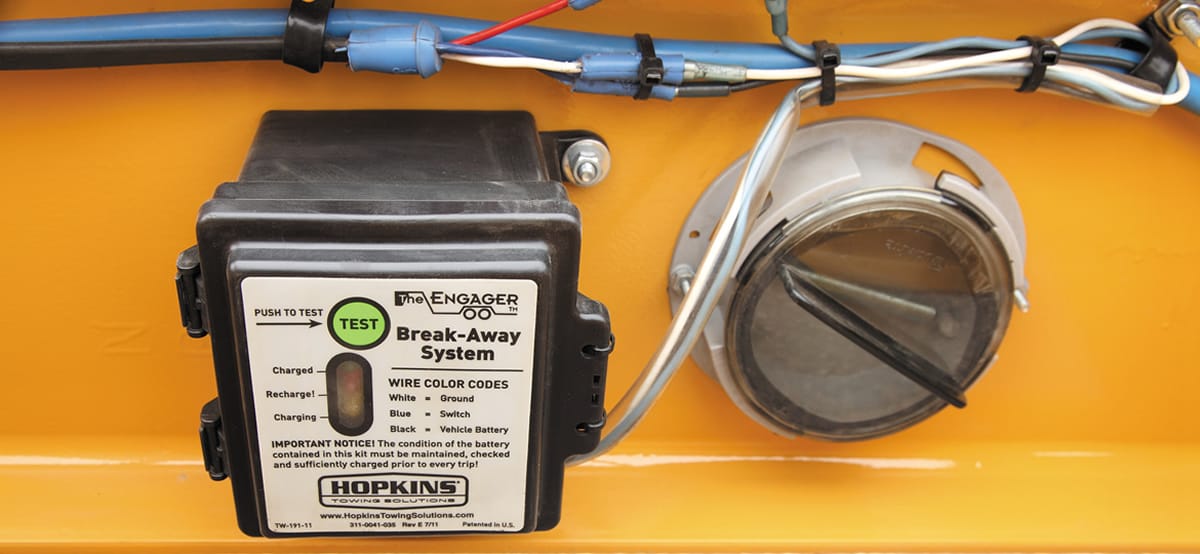

| Breakaway Switch | X | X | X |
| Single Disc Wheels (8 Hole) | X | X | X |
| Tires | 235/80R x 16 | 215/75R x 17.5 | 215/75R x 17.5 |
| Red and White Conspicuity Markings | X | X | X |
