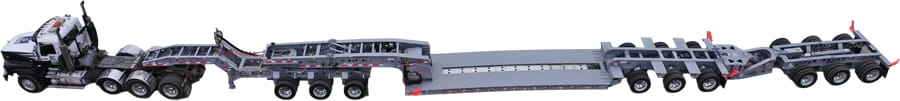

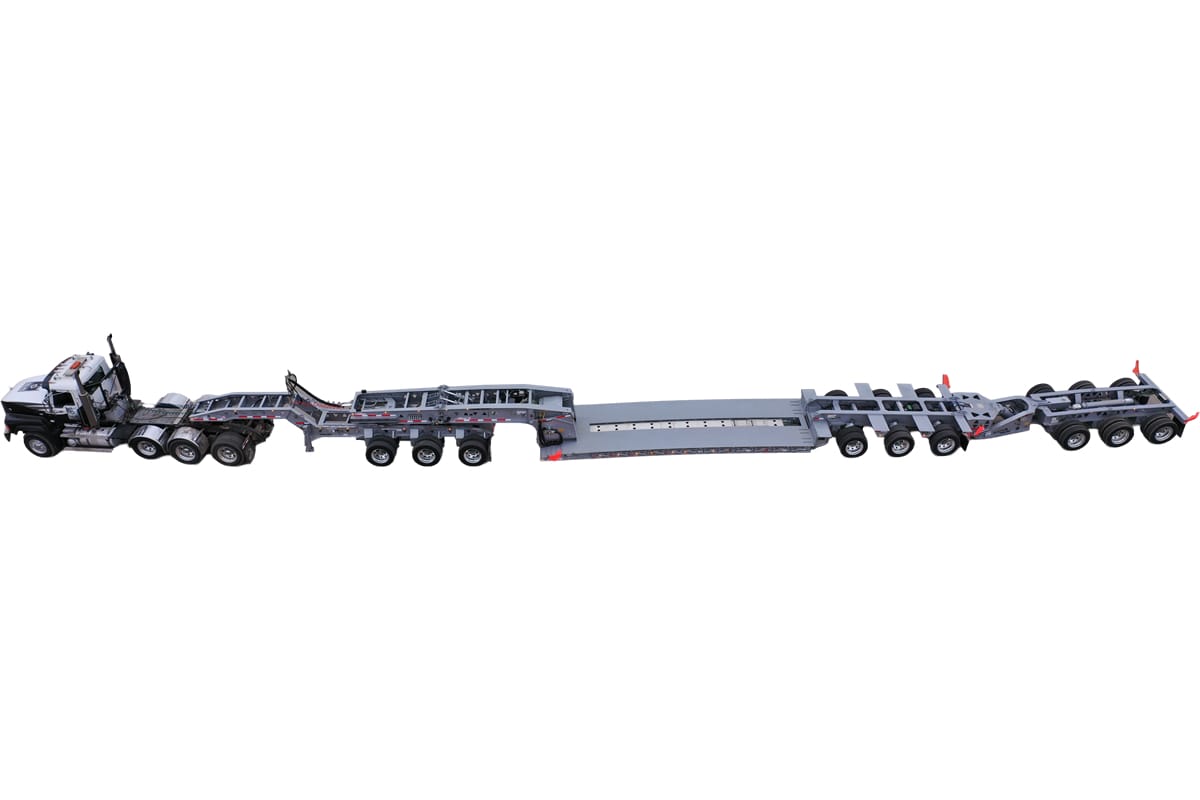

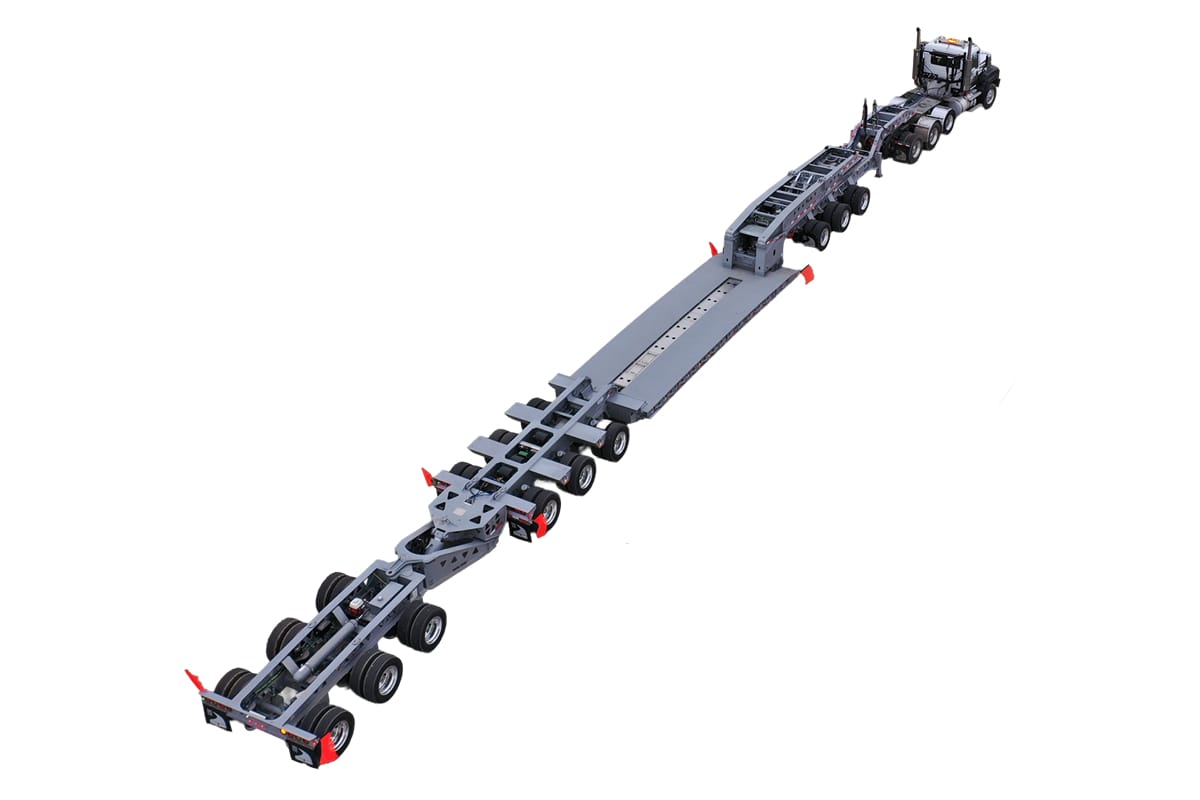

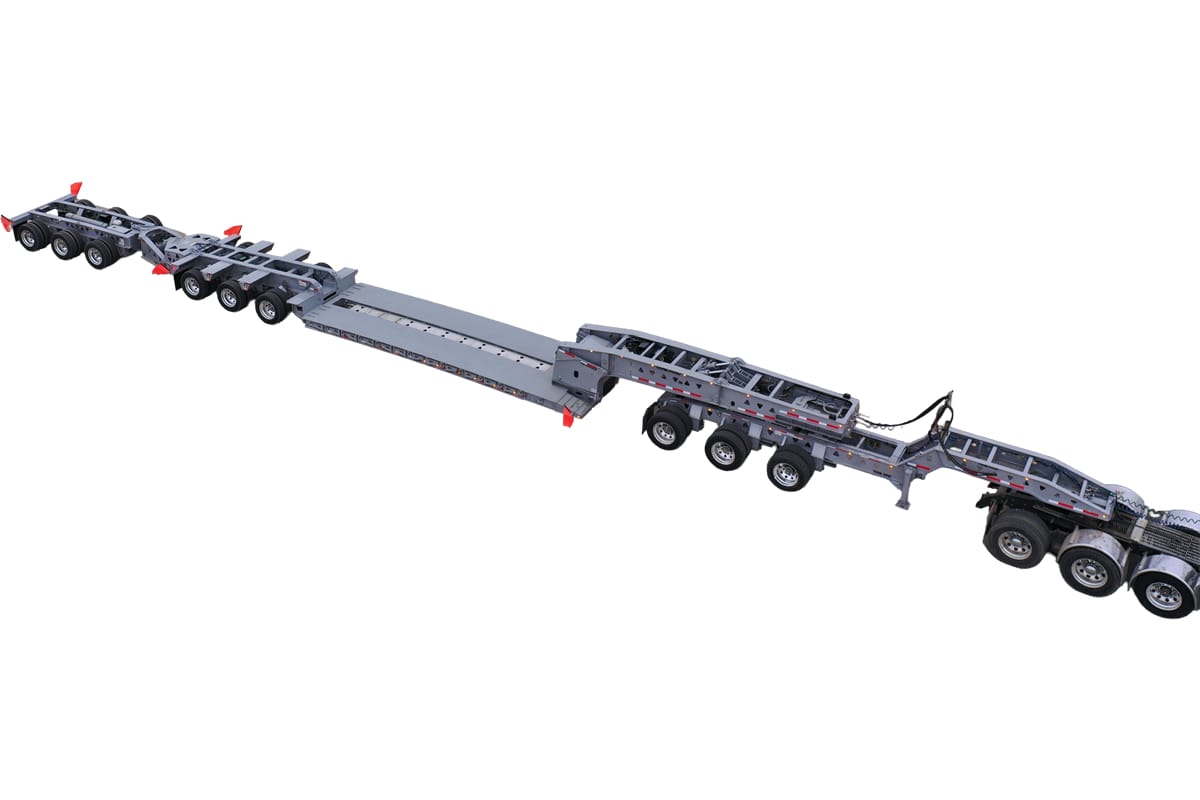

HDG-S
Designed for extreme heavy-duty hauling, Trail King’s HDG-S trailer delivers exceptional strength, capacity, and control. Built to handle up to 160,000 lb., this trailer features a double box perimeter beam–style deck, with an optional extendable configuration that maximizes versatility across a wide range of oversized and high-weight loads. With precision automatic kingpin steering this allows for maximum maneuverability on the highway and in tight job sites.
Literature
Specifications
Literature
The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager.
Specifications
- Capacity:160,000 lbs. overall, reinforced for tri-axle booster
- 24’ 3” Hydraulic gooseneck
- 219” Swing clearance
- 26’ Mini deck design, 160,000 lbs. in 20’
- Various deck lengths and styles
- Optional extendable or insert configurations
- 17” Loaded deck height with 6” ground clearance (mini-deck)
- Automatic kingpin steering system with 33° of steering angle
- Manual override steering with up to 38° of steering angle
