HES-S

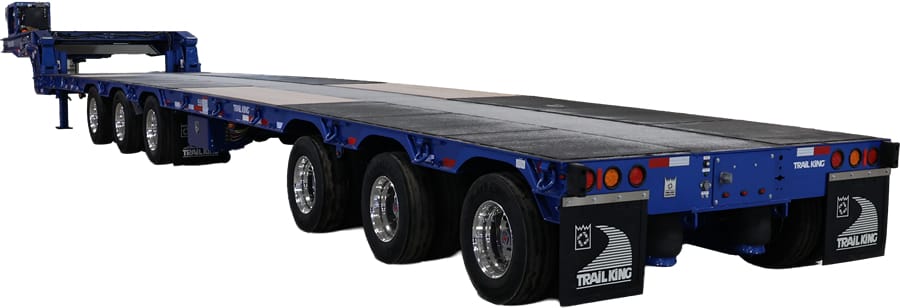

Designed for dependable heavy-duty hauling, Trail King’s HES trailer delivers the strength, stability, and performance operators rely on every day. Built to handle up to 130,000 lb., this trailer features a mono box beam–style deck that provides long-term durability and confident load support. With precision automatic kingpin steering on the rear tridem and caster steer on the front tridem this allows for maximum maneuverability on the highway and in tight job sites.
Literature
Specifications
3D Model
Literature
The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager.
Specifications
- Capacity: 130,000 lbs. overall, 110,000 lbs. in 10’ closed

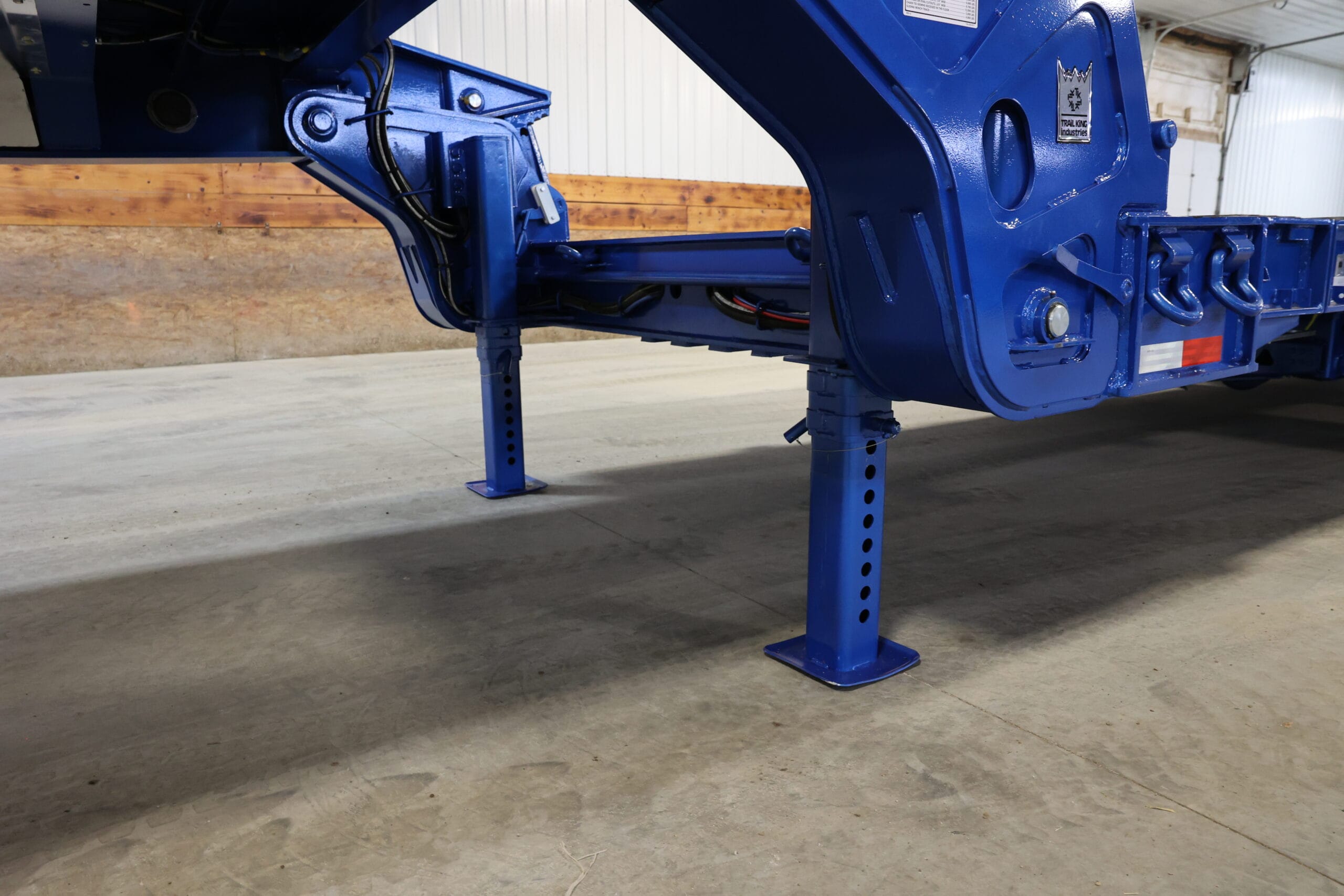

- 13’ 9” Hydraulic gooseneck with 7-position adjustment
- 59‘10” total closed length
- 81’ 1” open well length (94‘10” total open length)
- 125“Swing clearance
- 24” removable roller bunk
- 38” Loaded deck height
- Automatic kingpin steering system with 35° of steering angle
- Manual override steering with up to 40° of steering angle
3D Model
TKHES-S in Augmented Reality powered by JigSpace
