Schnable System

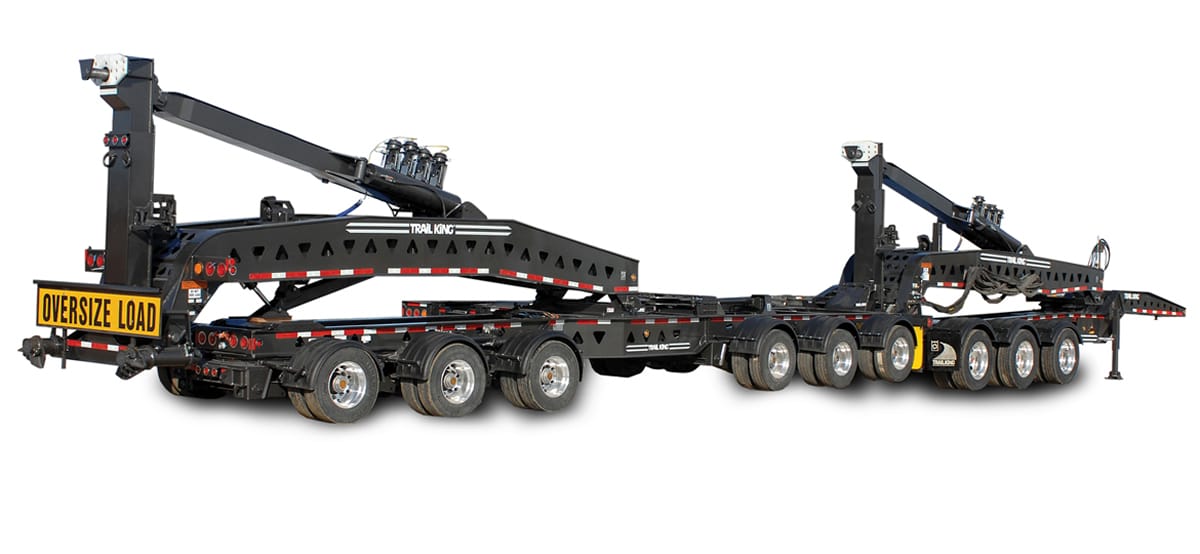

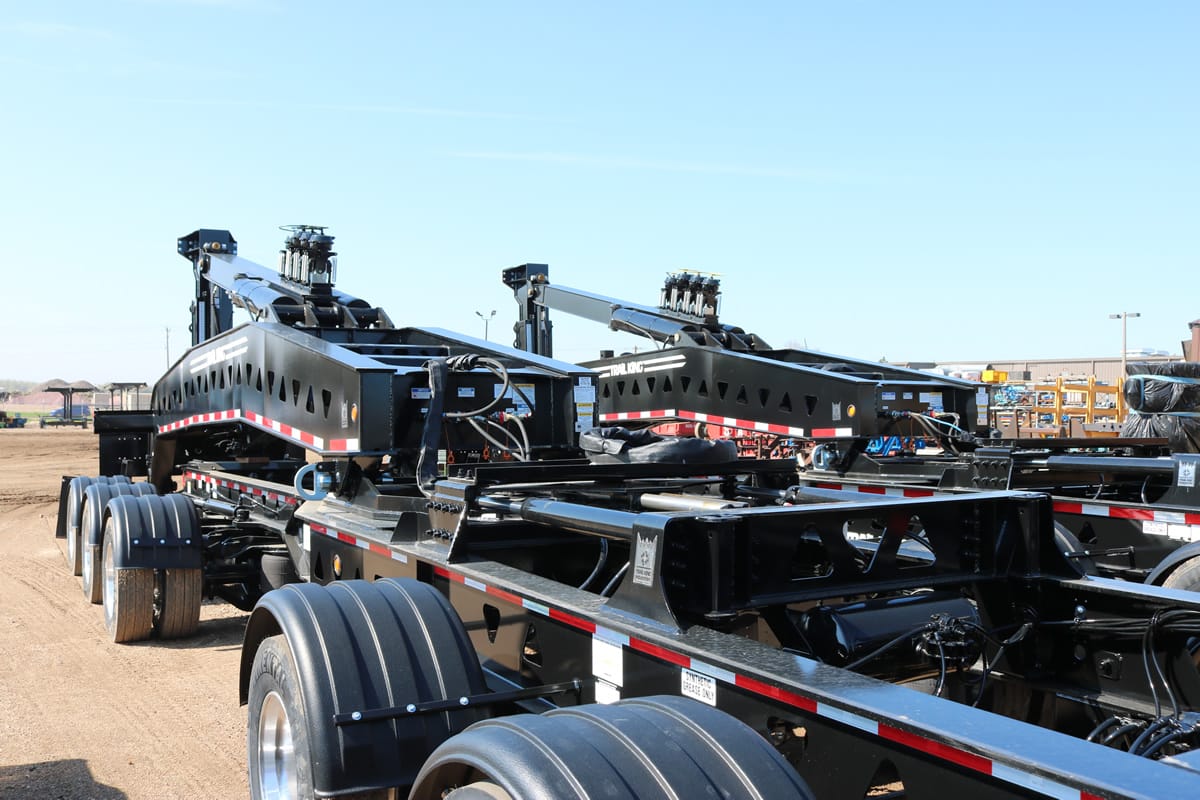

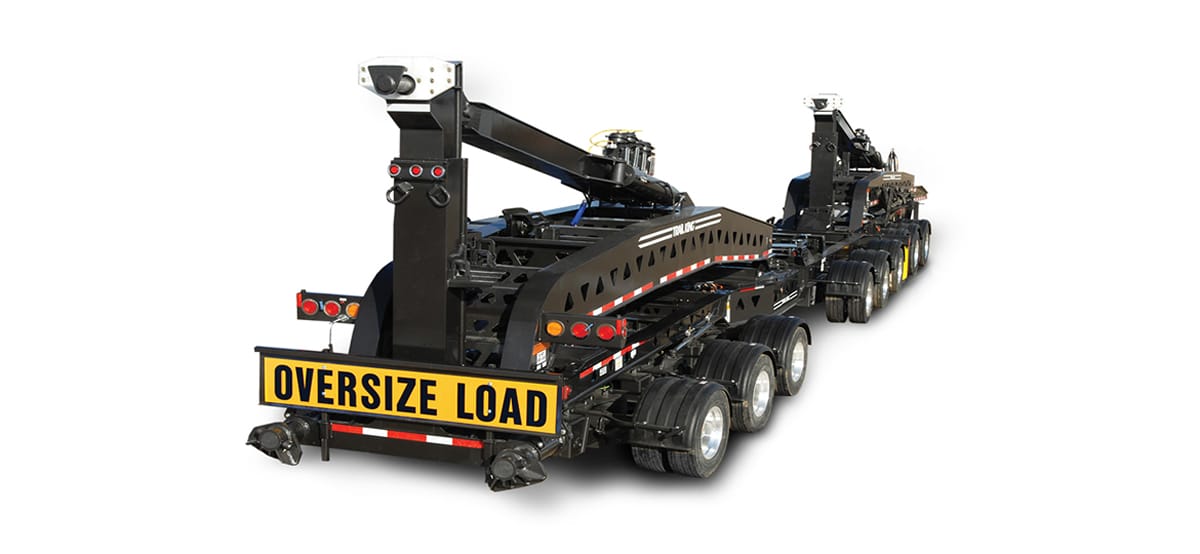

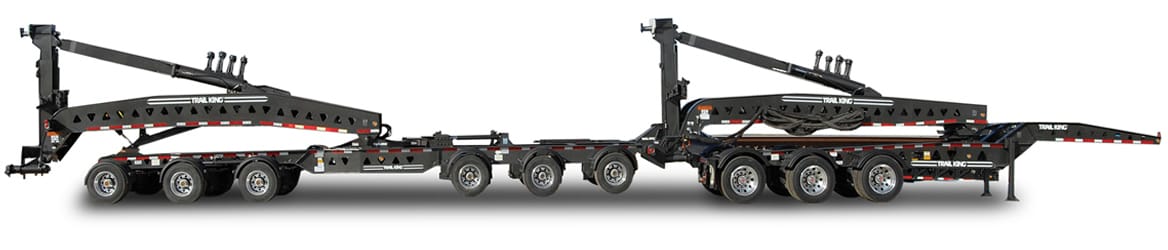

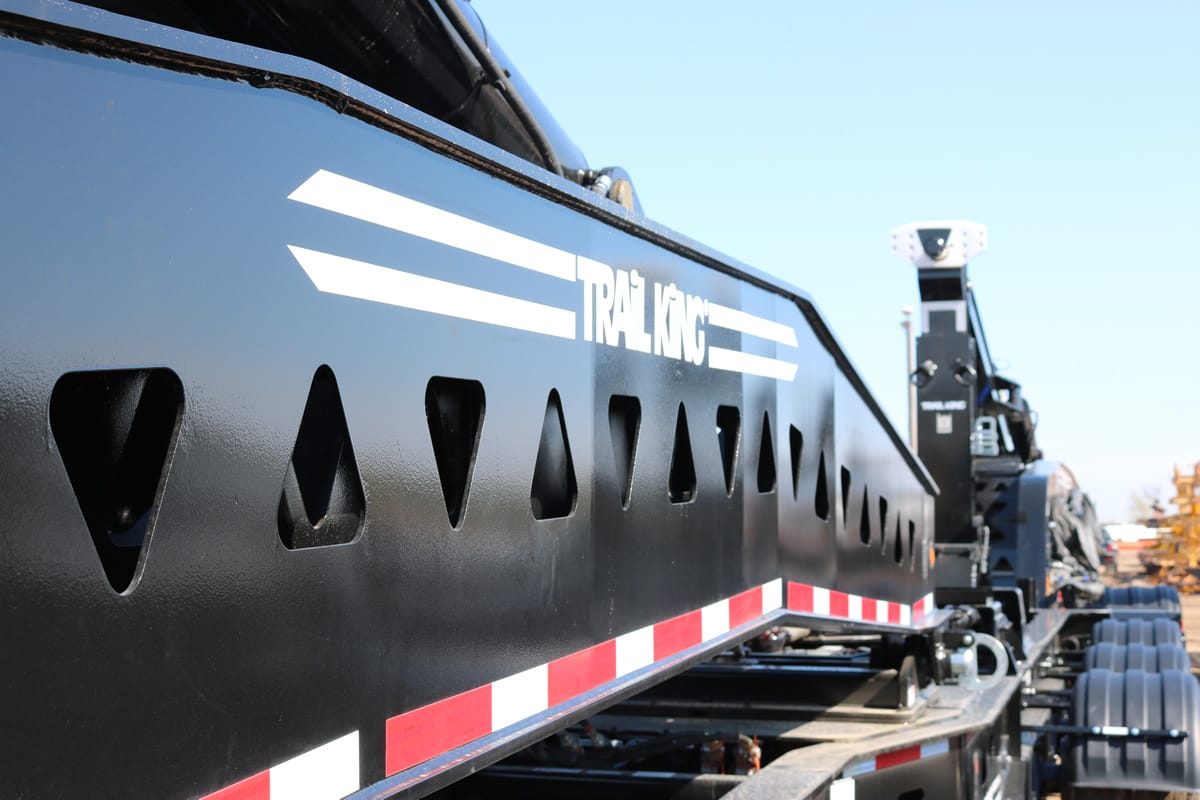

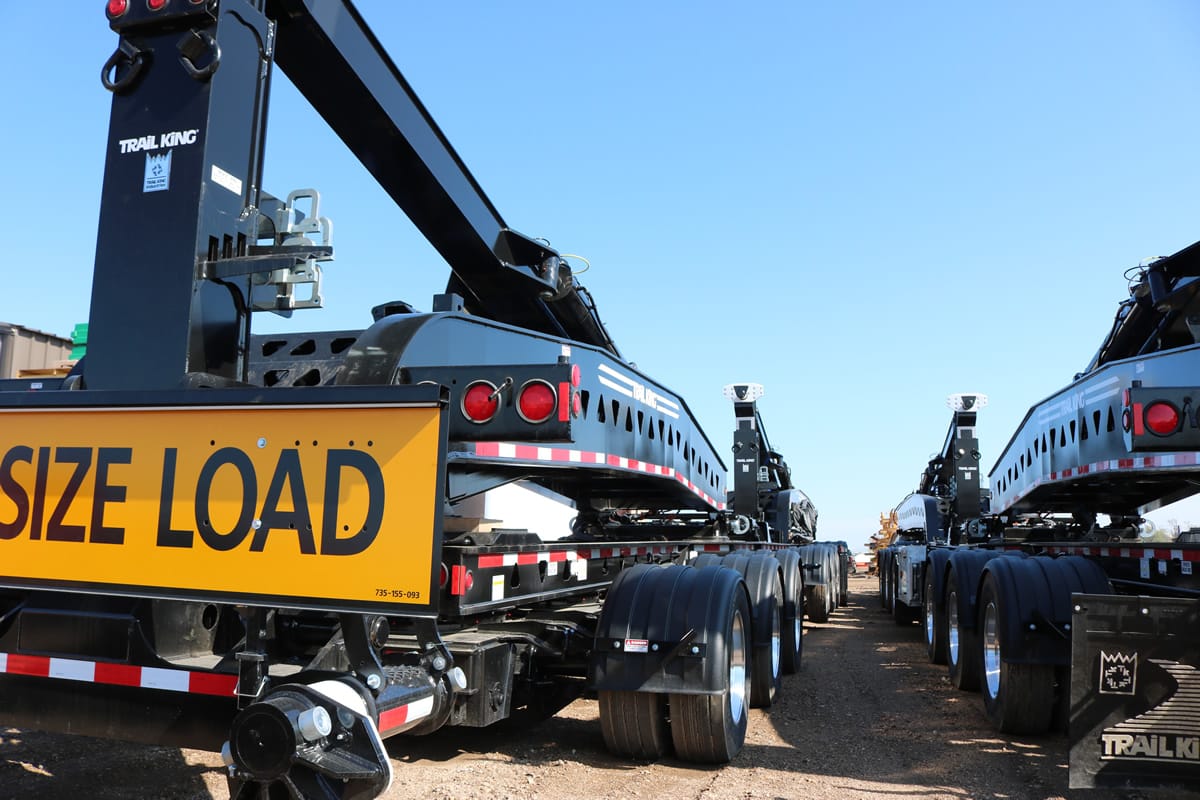

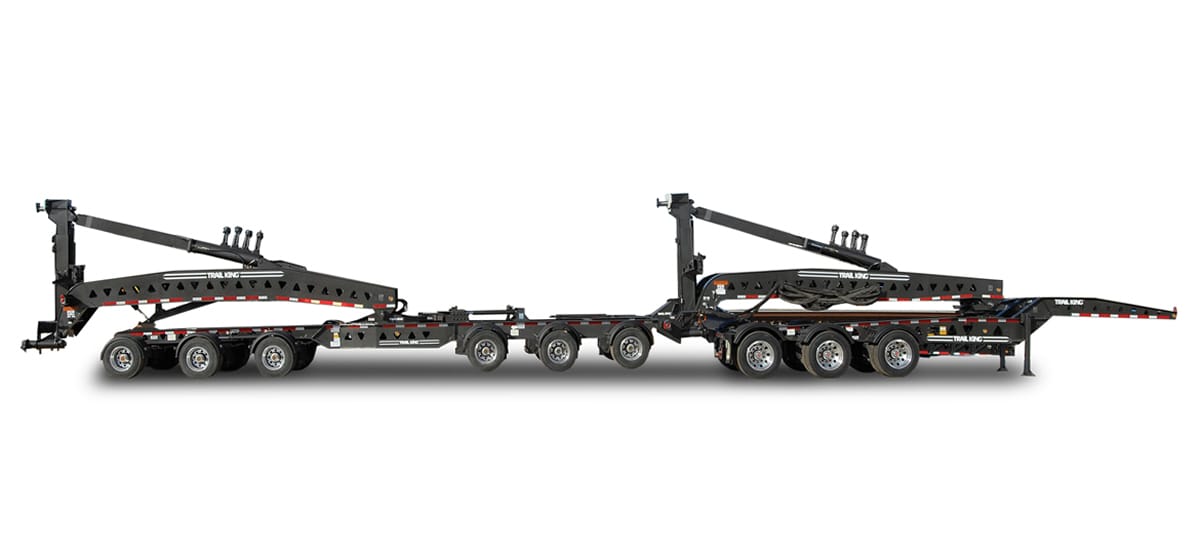

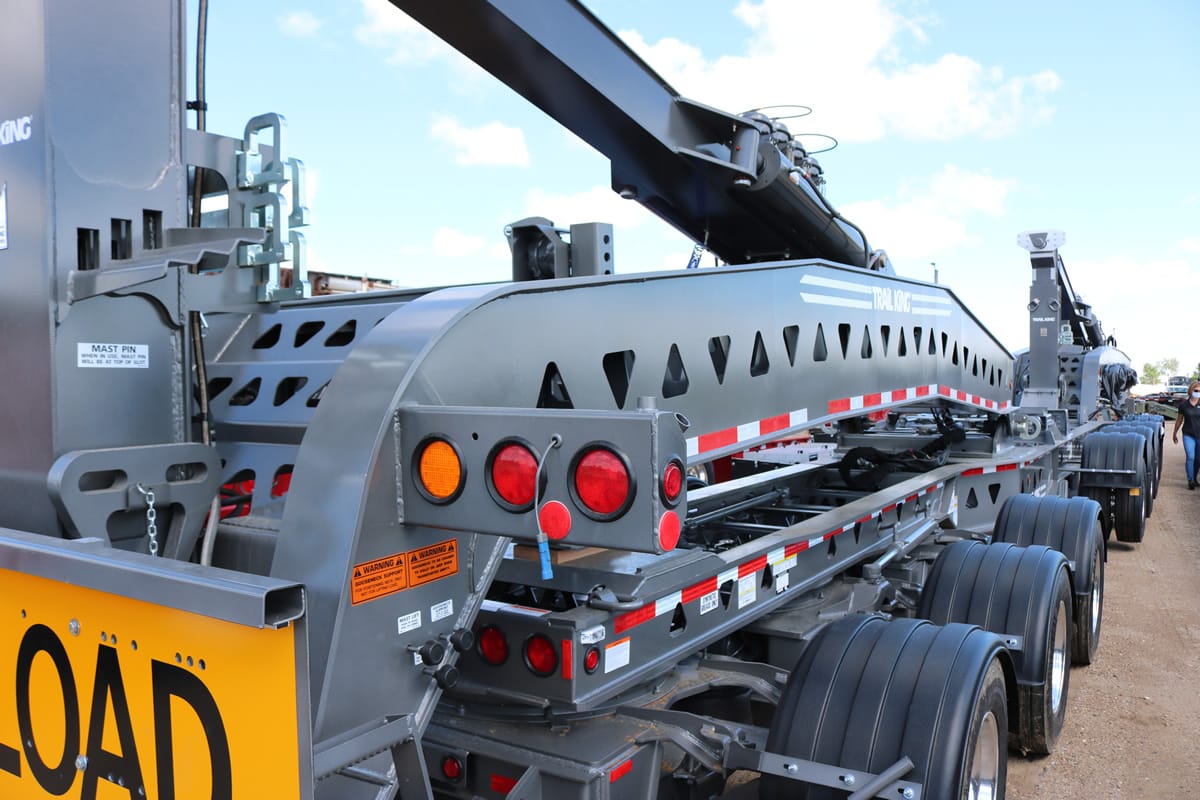

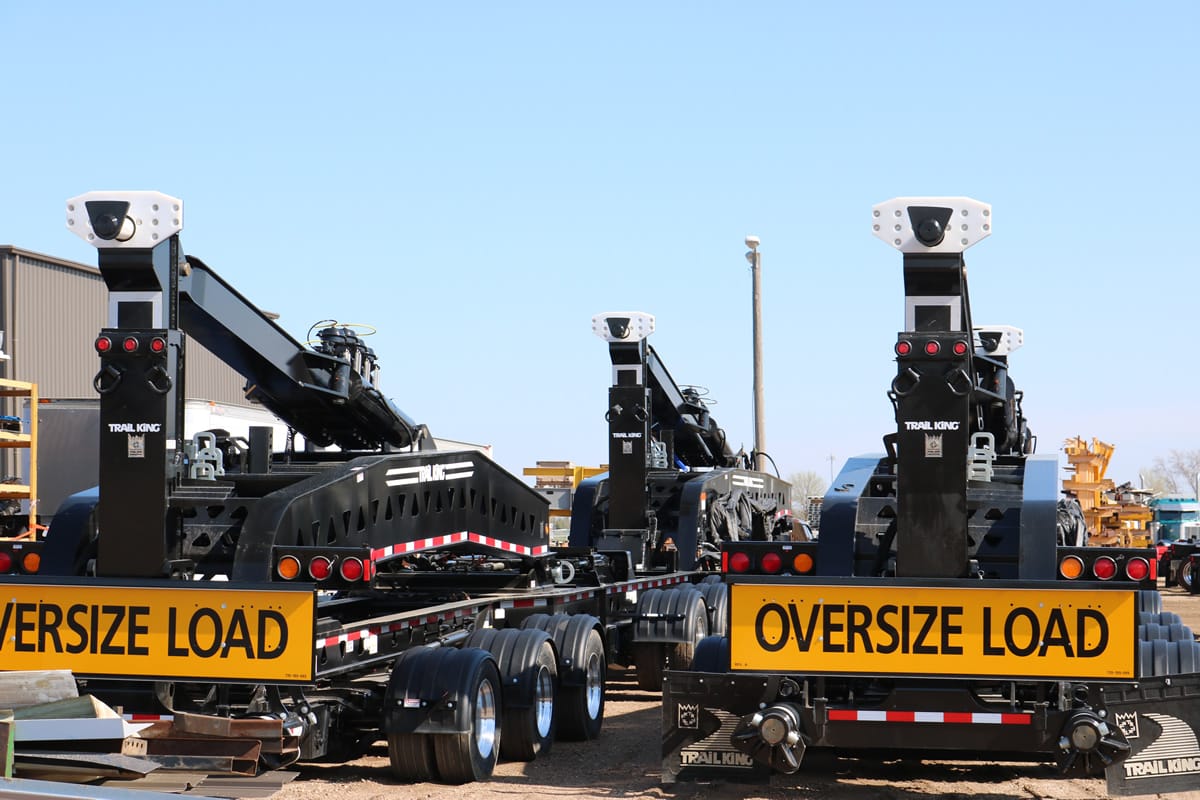

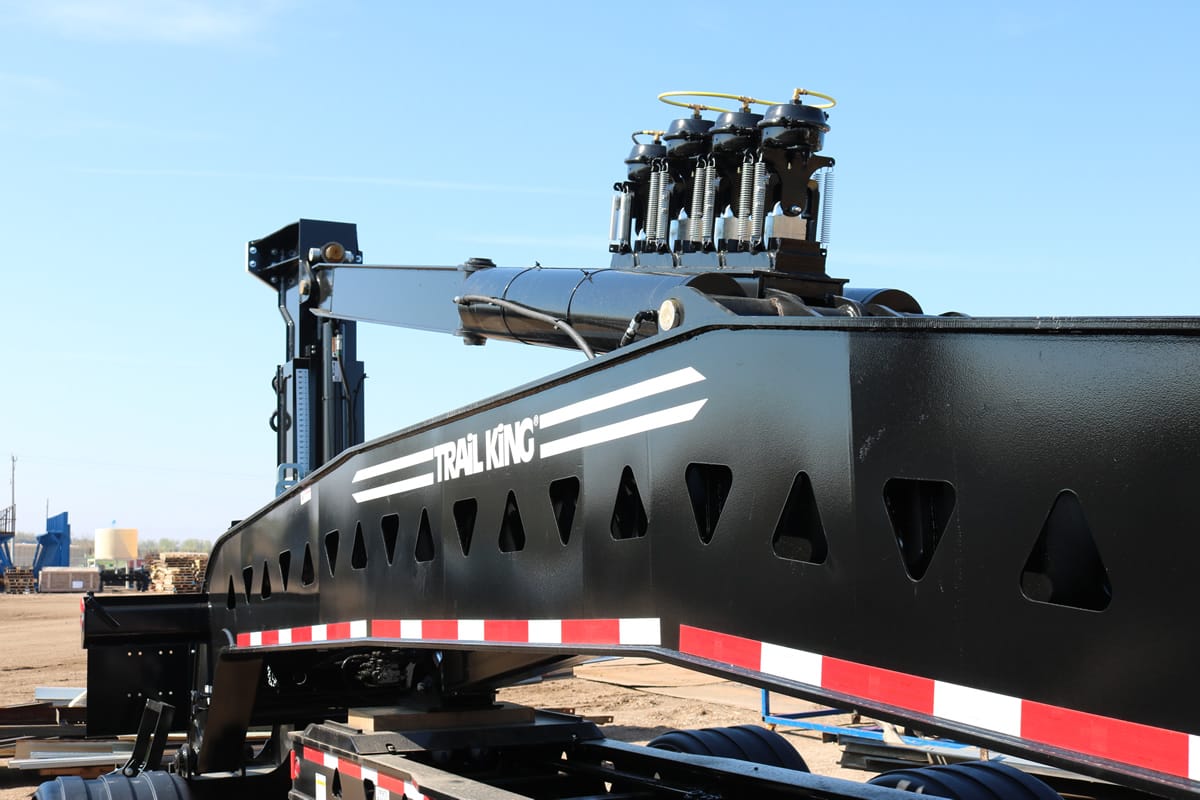

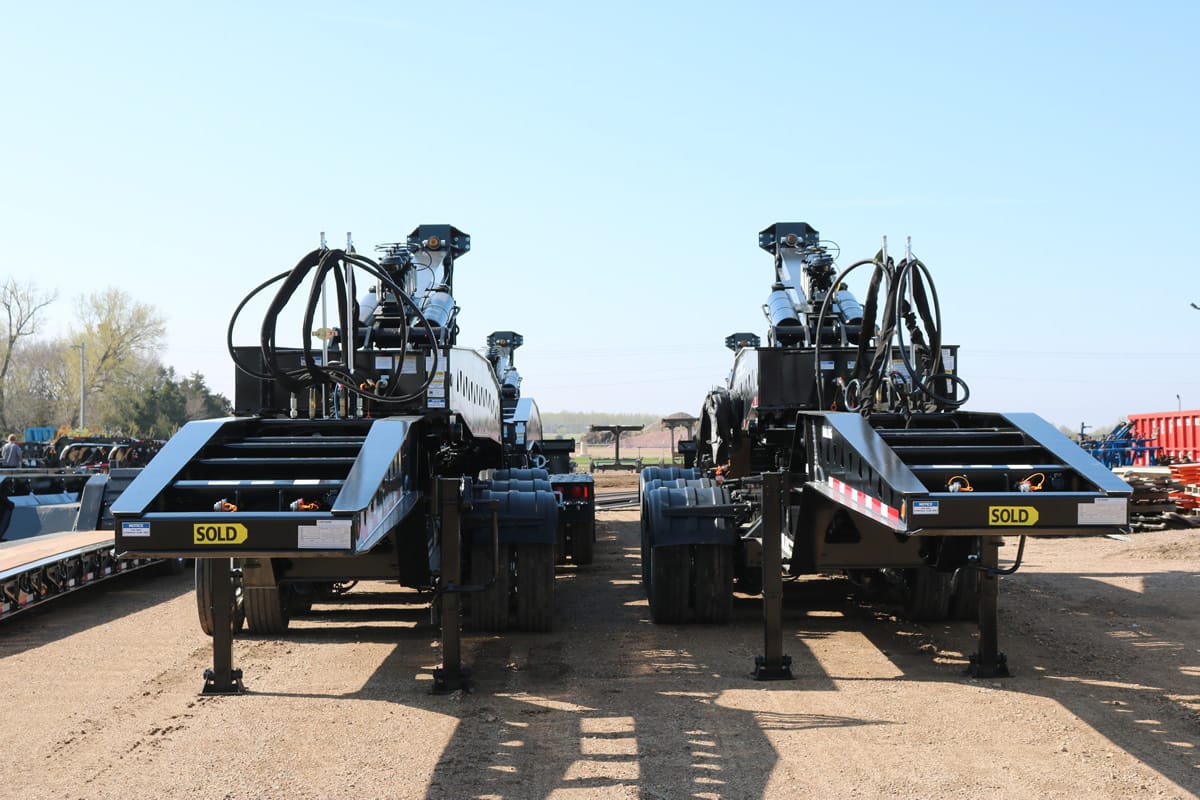

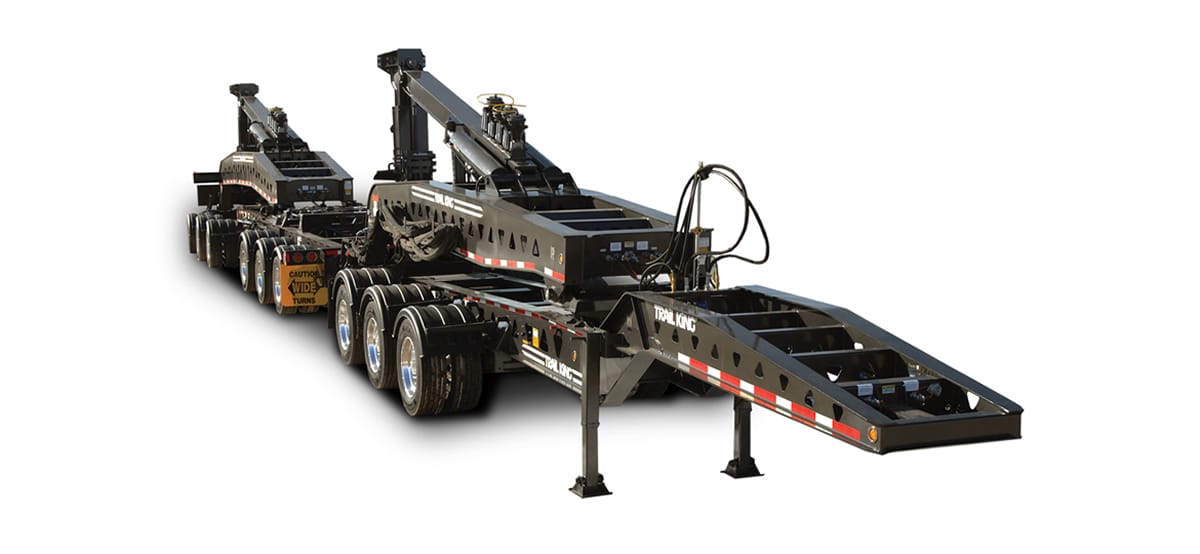

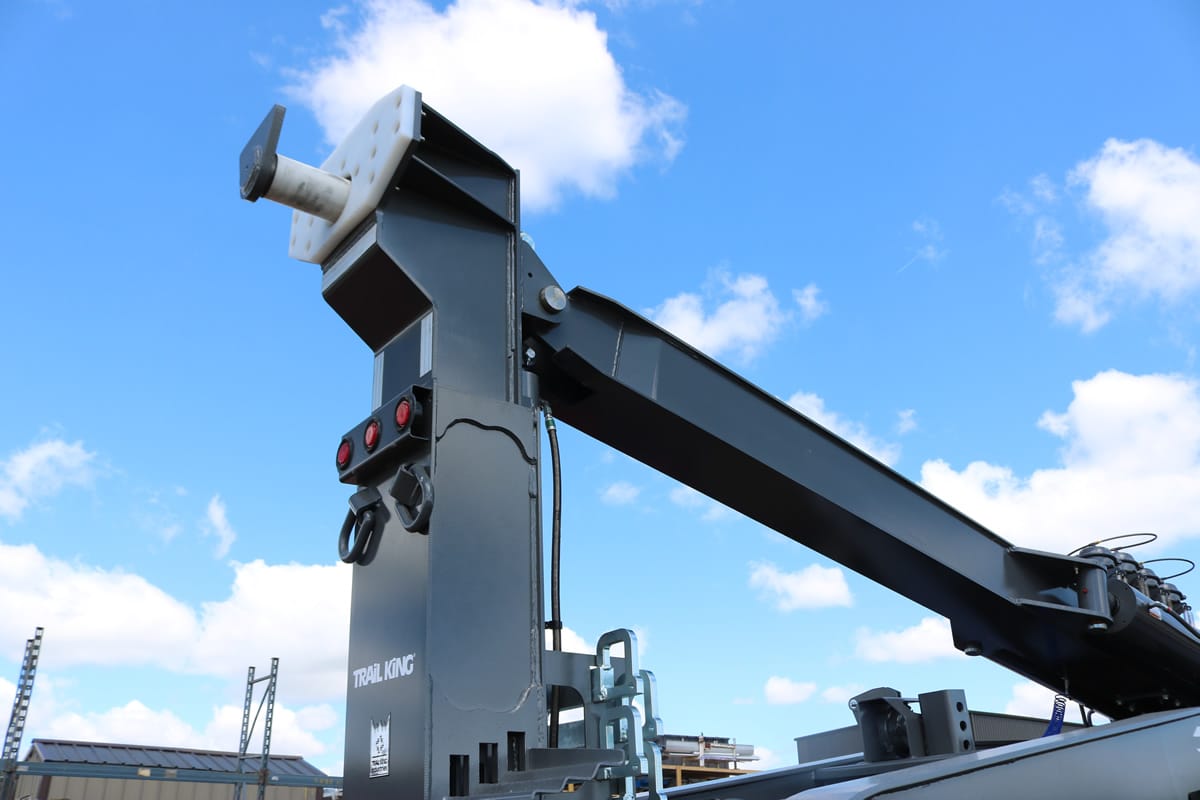

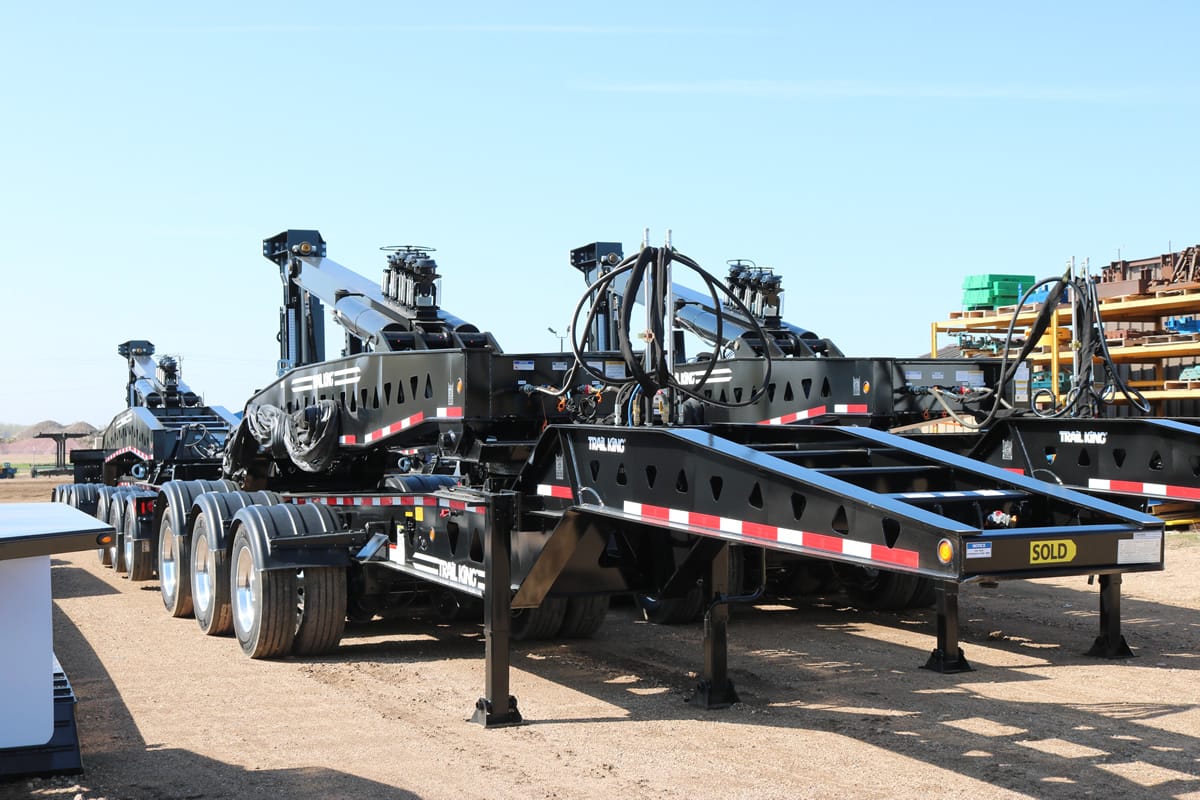

Trail King offers front and rear schnable goosenecks engineered to be lightweight while still increasing payload. This product offers more lifting power enabled by operating at a lower hydraulic pressure. The supportive truss brace at the top of the tower offers greater stability and service life and the dual-side controls are accessible from the ground level for user-friendly operation.
Literature
Specifications
Videos
Literature
The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager.
Specifications
| Schnable System – Standard Equipment | 24’ Gen 3 Front Gooseneck | 24’ 6” Gen 3 Rear Gooseneck |
|---|---|---|
| Capacity | 85,000 lbs. | 85,000 lbs. |
| Pivoting tower raises and lowers load | X | X |
| Telescoping single tower adapts to flange diameter | X | X |
| Hydraulic support (requires external supply) | X | X |
| Hydraulic Controls | Both sides | Both sides |
| Air lock for main lift and gooseneck support arm | X | X |
| Single upper tower support | X | X |
| 1 set of tension hooks | X | X |
| Weight | 11,850 lbs. | 11,220 lbs |
