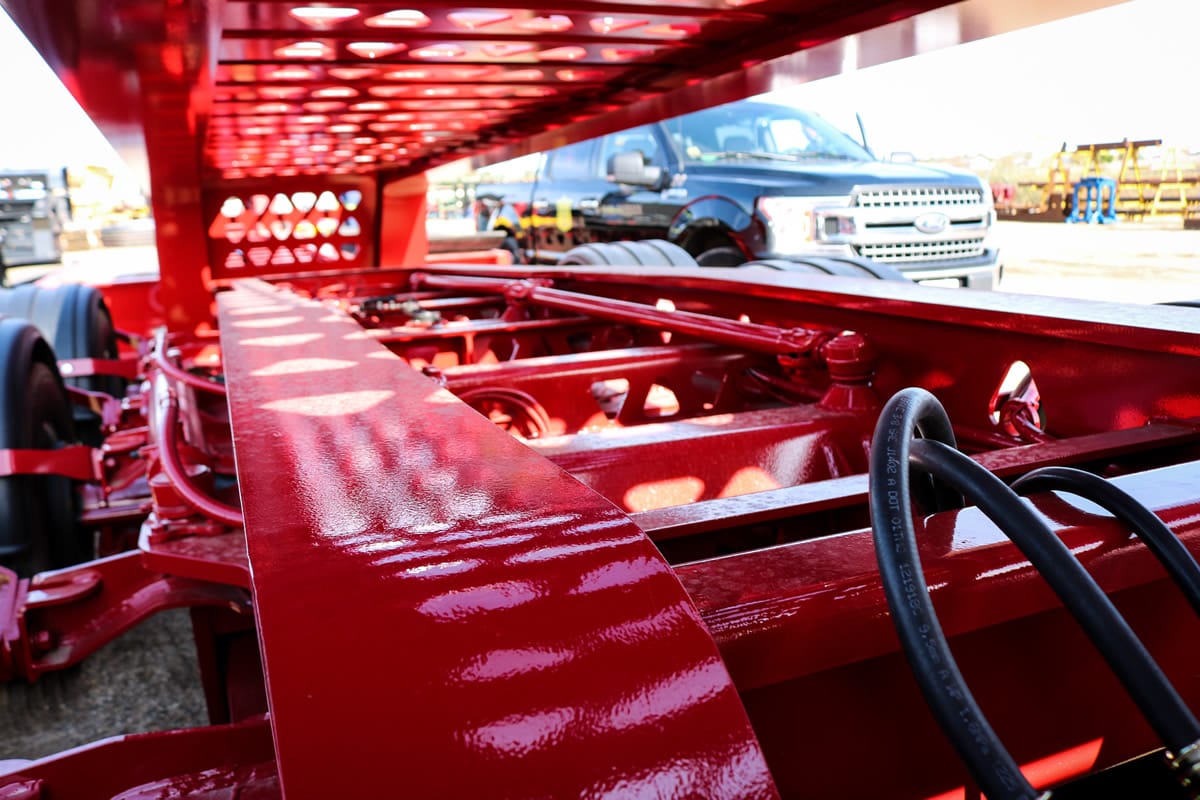

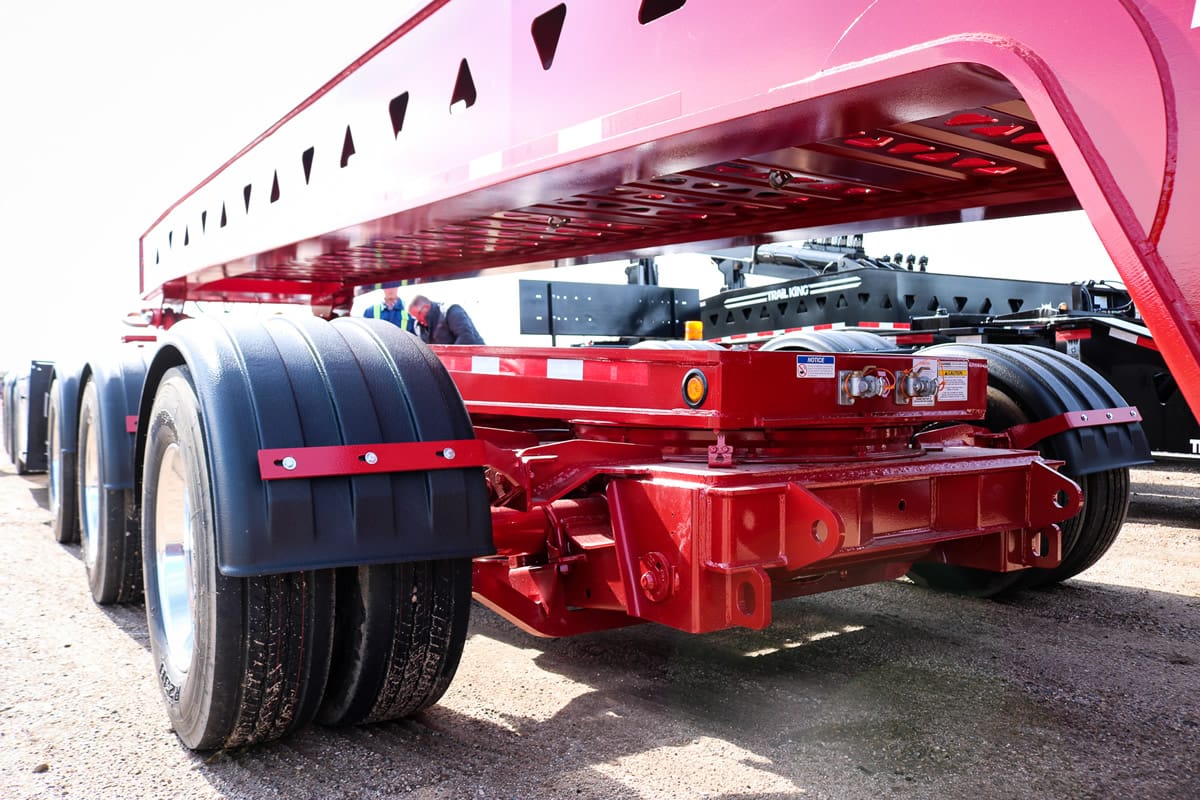

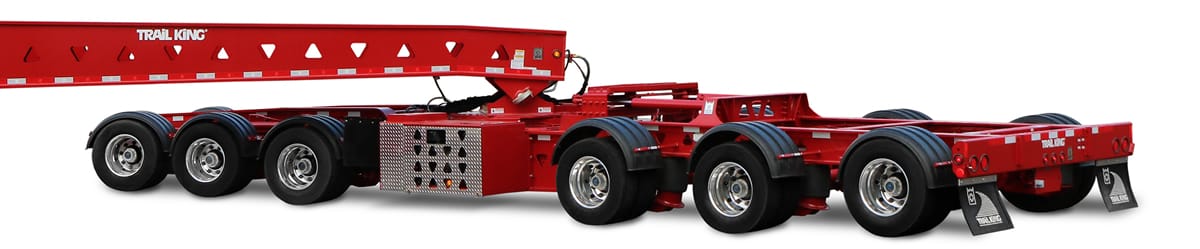

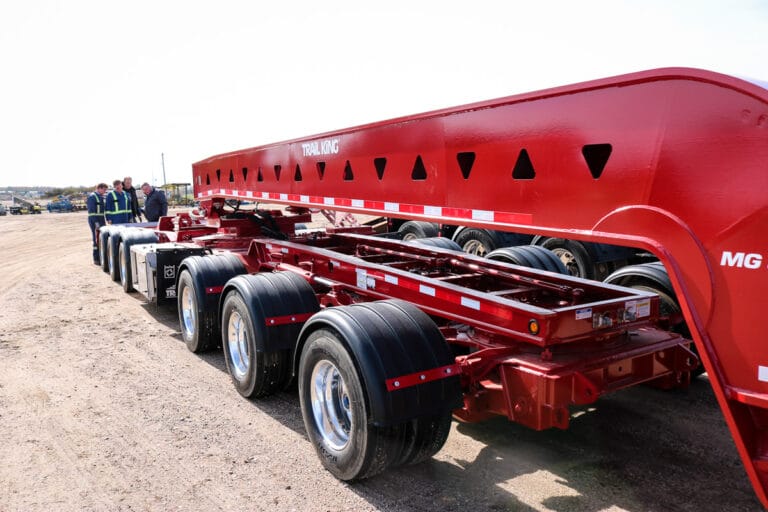

Steerable Dolly
This versatile dolly can be used with a Schnabel setup, replace standard wheel area for a steerable 13 axle configuration, or can be used in combination with a Jeep/Dolly for Bunk work. This new design allows for better maneuverability for a greater steering angle, tighter corners and less manual steering. The dolly offers remote wireless manual steer and auto alignment after manual steer for an automatic self-centering function.
The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager.
At Trail King, our primary goal is your success, and our trailers are customized for unique challenges. We specialize in designing custom solutions for hauling your unique loads. Talk to your District Sales Manager to learn more.
| Standard Equipment | 120 LPSD-HS |
|---|---|
| Capacity | 120,000 |
| Width | 10’ |
| Axle Spacing | 60”, 14’1” group spacing |
| Front Steer Design | X |
| Hydraulic Steering | X |
| Hatbox rotation | 60 degrees (each way) |
| Auto or manual steer | X |
| Adjustable steer ratio | X |
| Manual steer | Wireless or wire type remote |
| Auto-alignment after manual steer | X |
| Tires | 235/75R 17.5 |
| Brakes | 12.25 x 7.5 (20,000 GAWR) |
| Poly fenders on all axles | X |
| Air ride | With raising and lowering |
| Hydraulic hat box | 8” lift |
| Wide load sign | Brackets at rear |
| Support plate for gooseneck support arm | X |
| Spring brakes on rear axle group | X |
| Grote sealed wiring harness | X |
| Aux air outlet for power tools | X |
