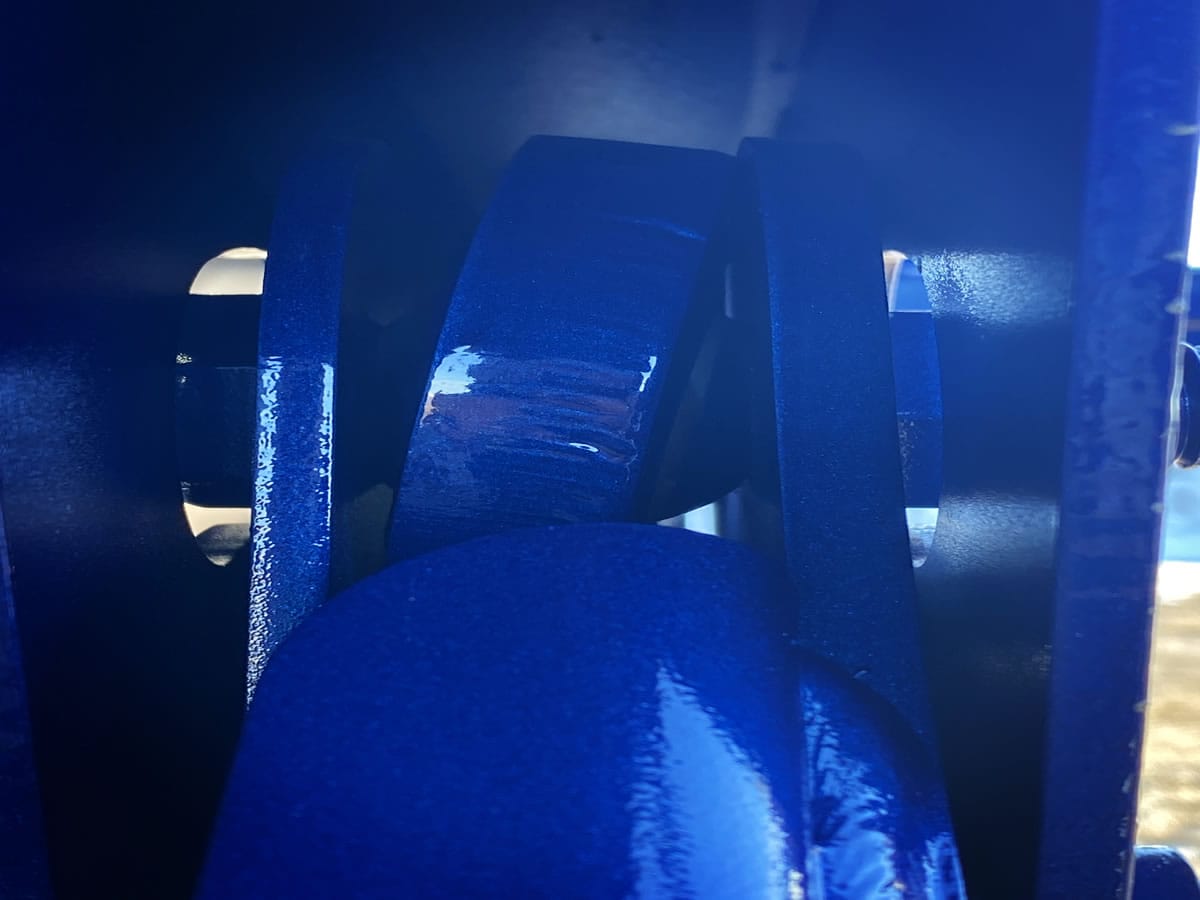

Full Oscillating Fifth Wheel Plate
Features a spherical, chrome-brushed design that reduces trailer stress and extends the service life of the tractor and frame.

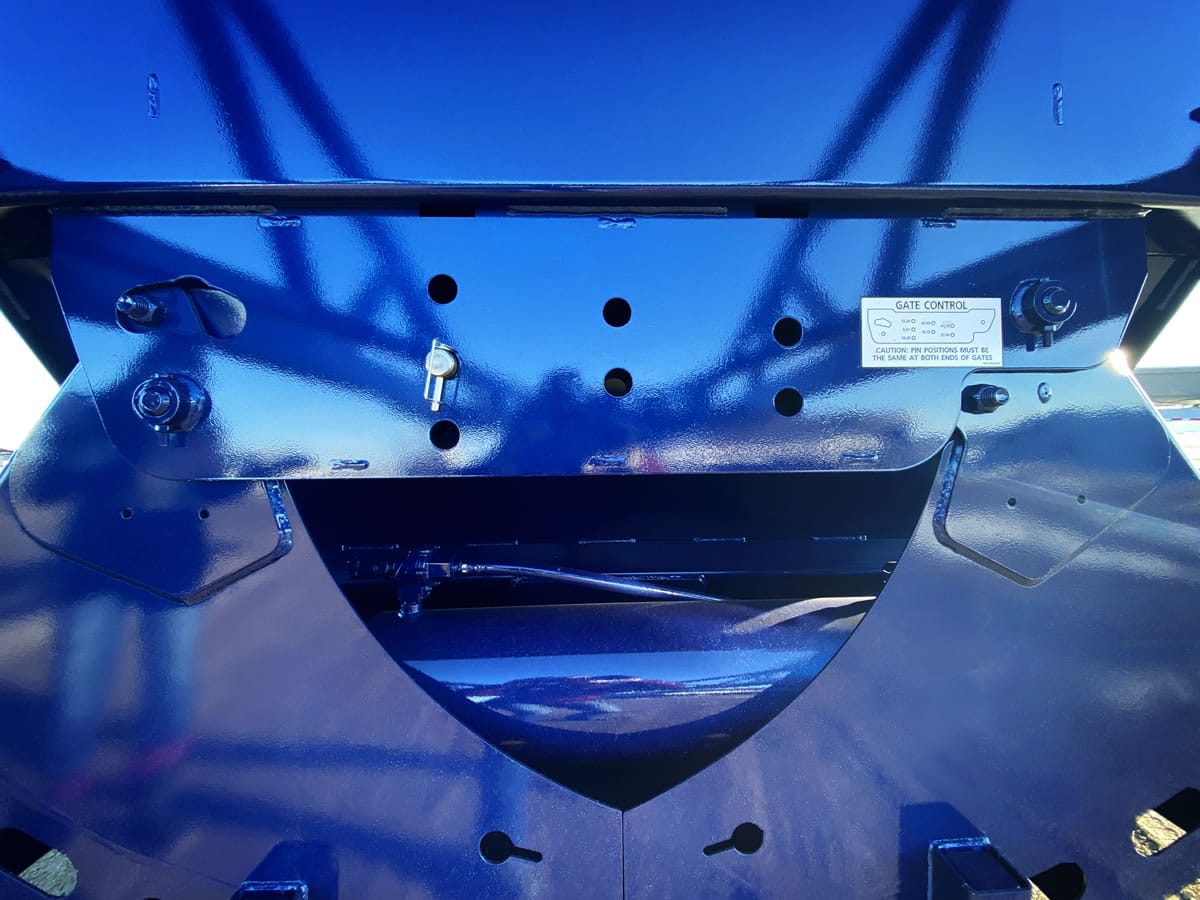

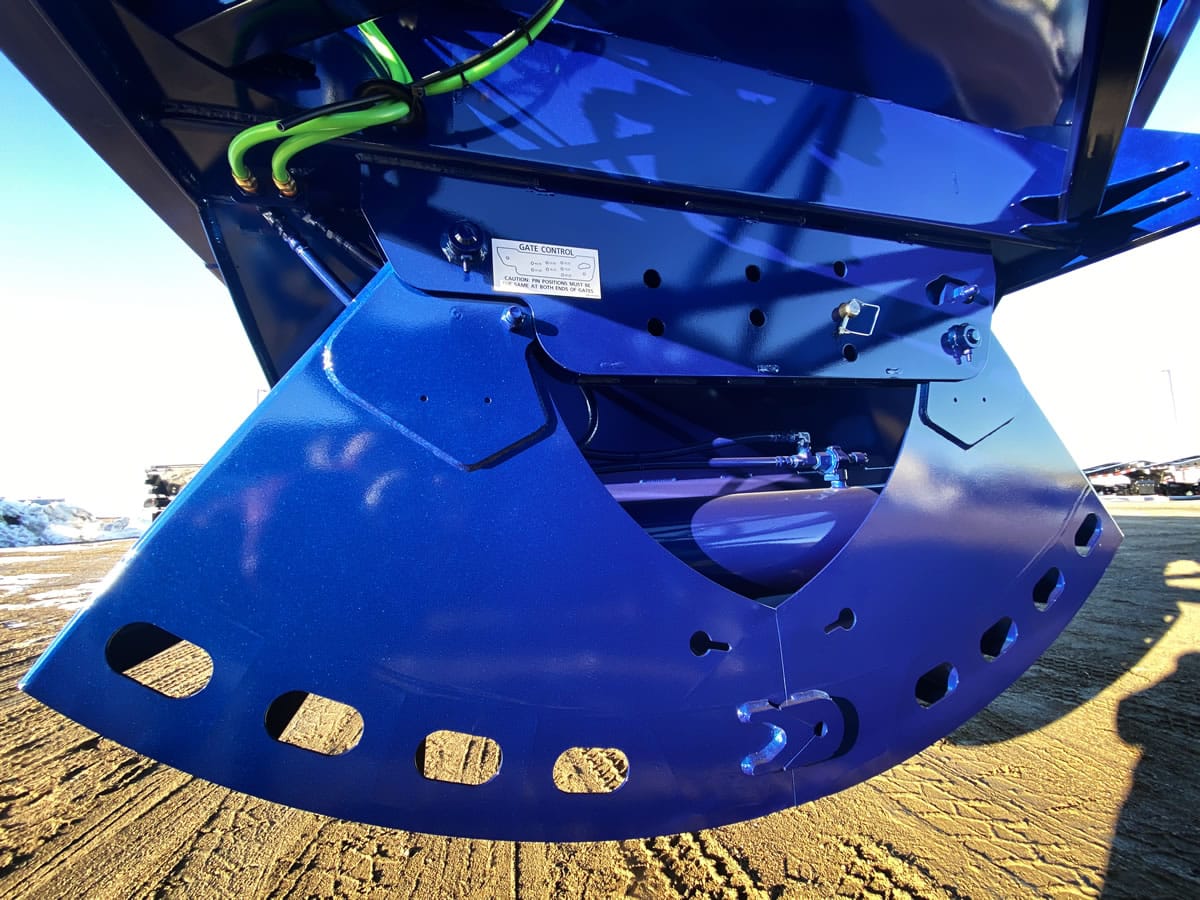

Heavy-Duty Gate Stop

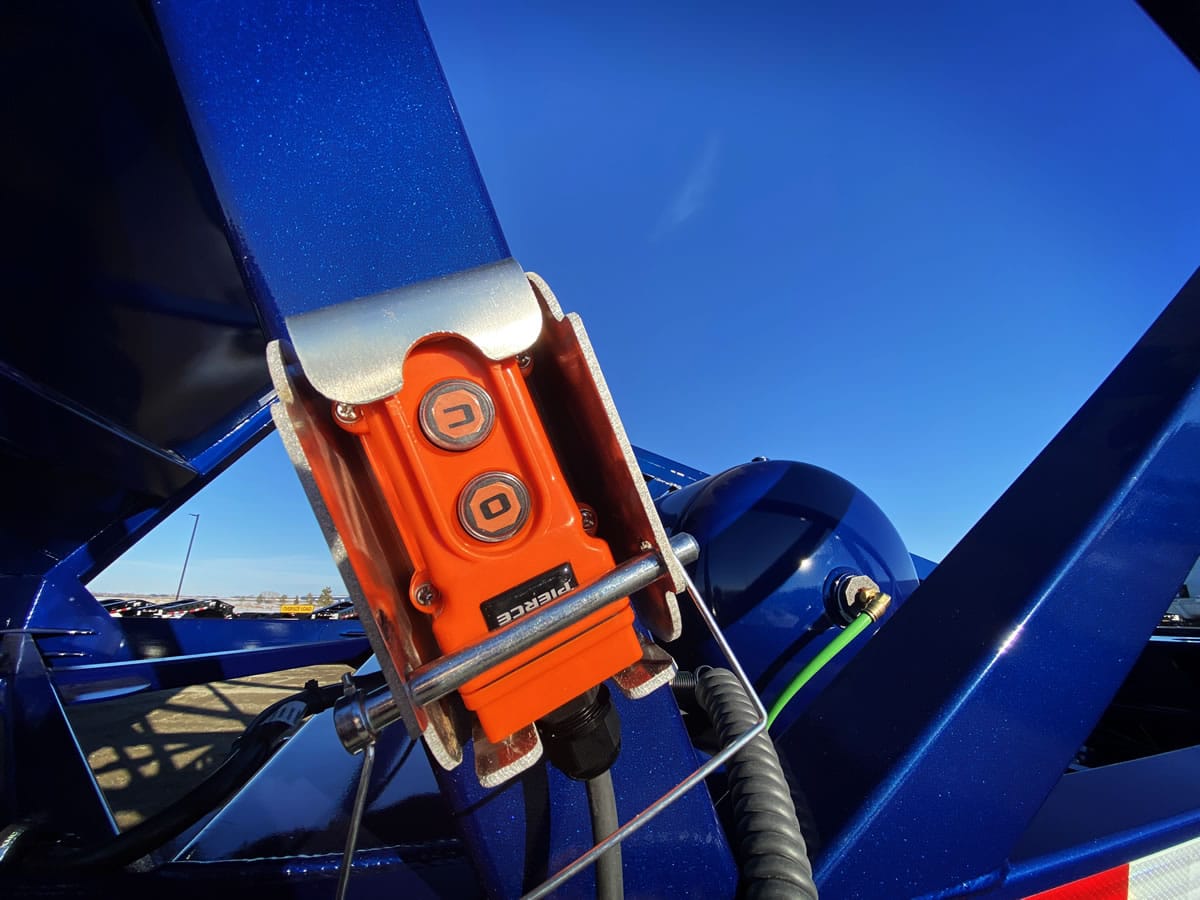

Increased productivity and greater output with fast cycle times and recently modified easy-to-use gate limit setting. Convenient position with 6 adjustable locations. Infinite gate control available.

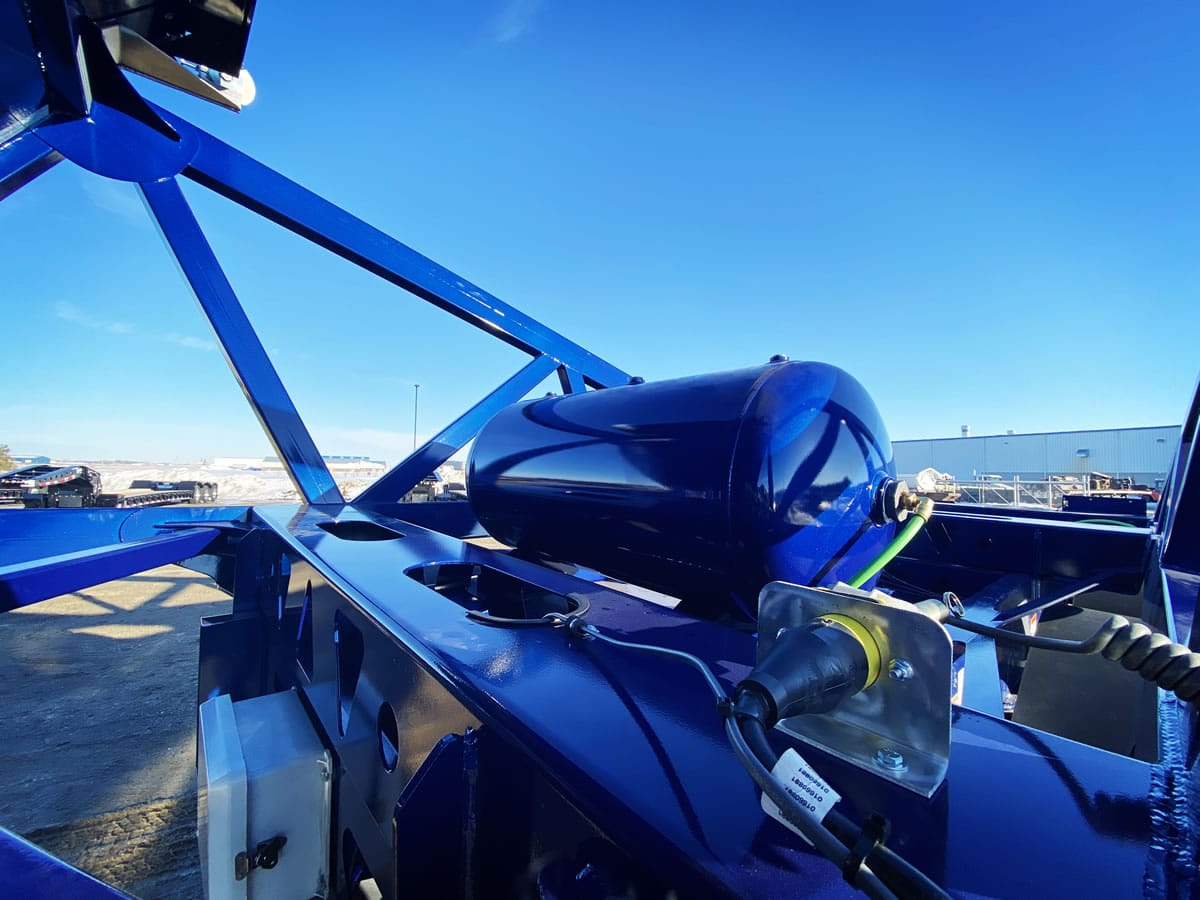

Large Air Reservoir
Standard 60 gallon air resevoir allows more capacity for the gate and quicker operation.

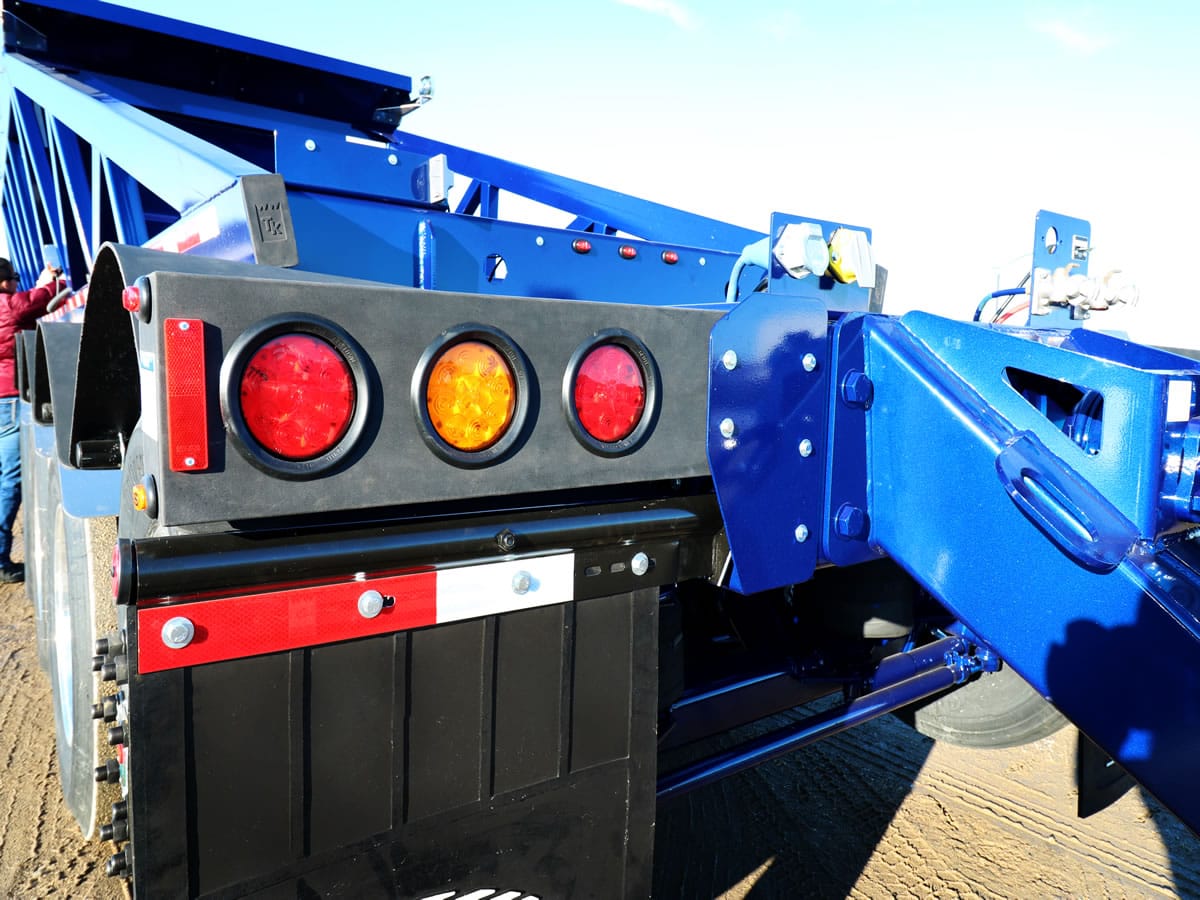

Bolt-on Push Block
Also available with a pintle hitch

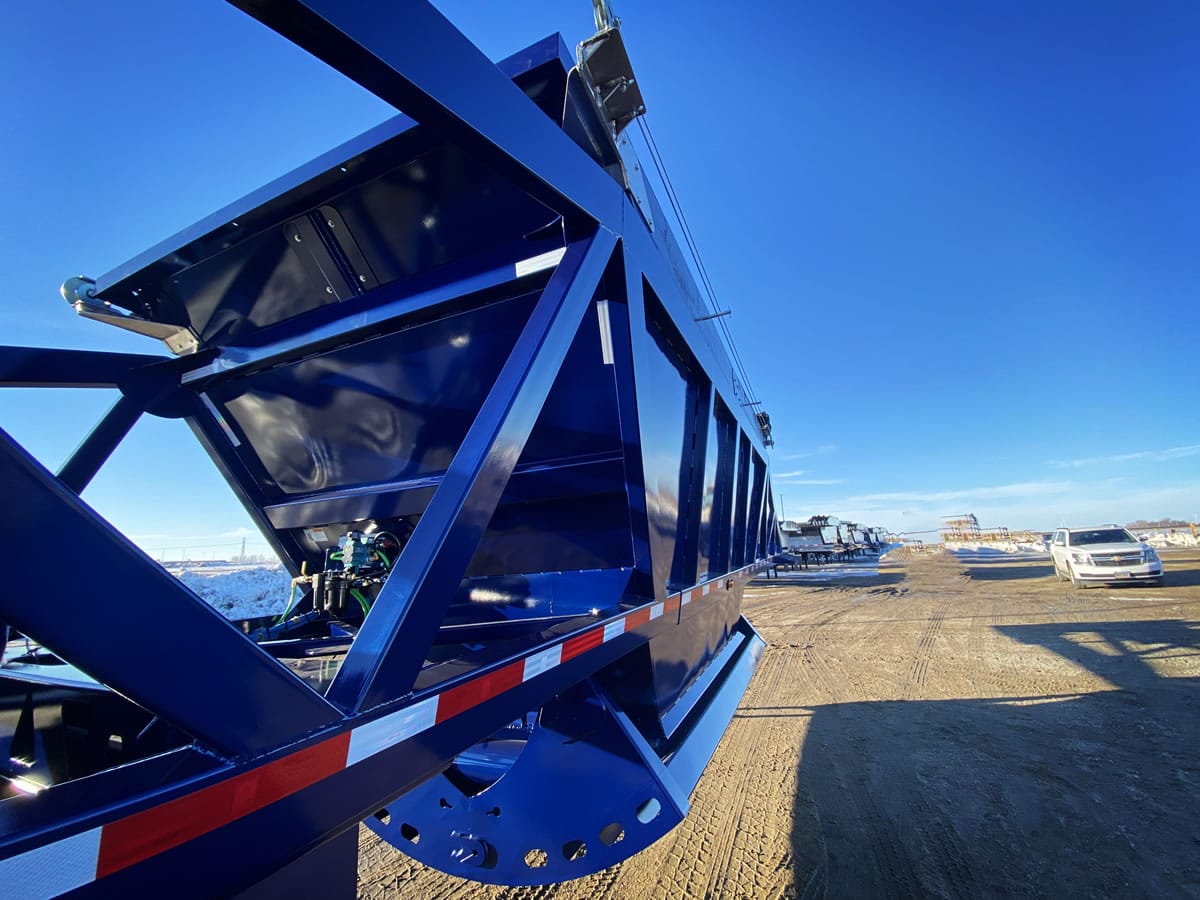

Large 11'6" Clam
Overlapping knife edge ensures full closure of gates. Continuous hopper slopes with a 54"x99" hopper opening, deliver complete dumping and reduce areas of material buildup.

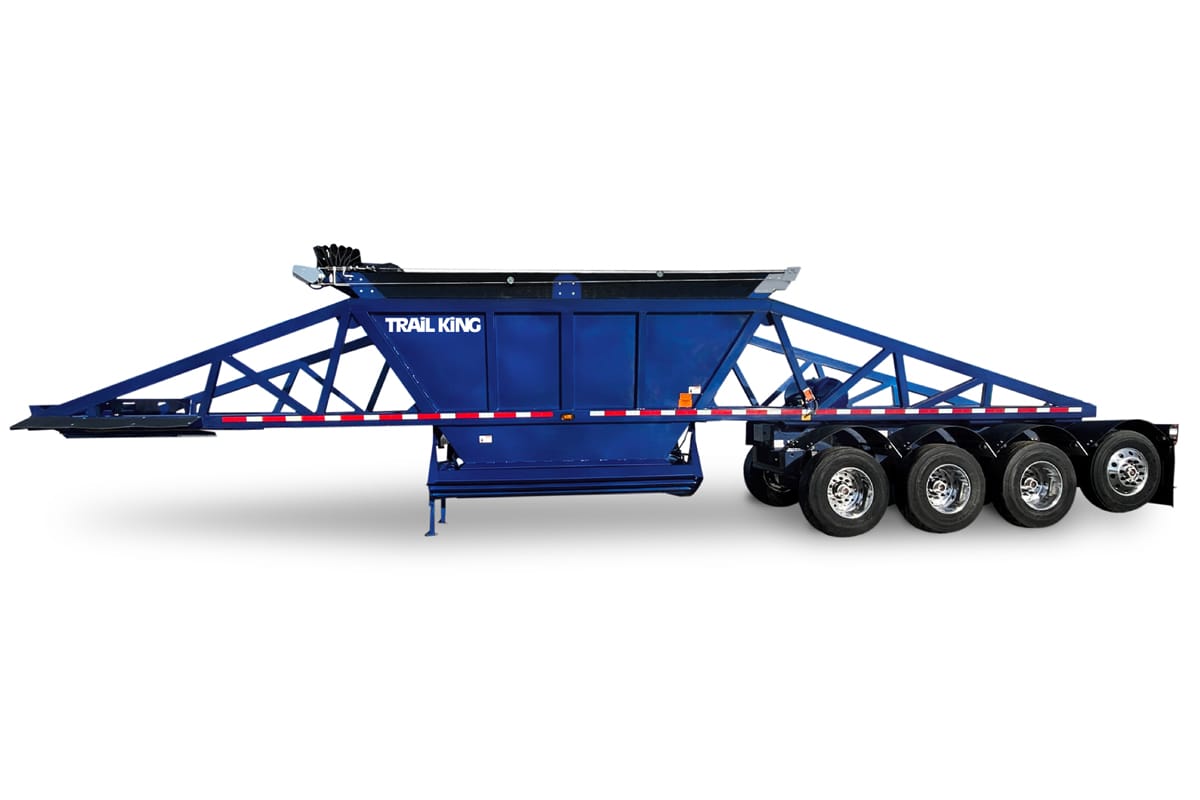

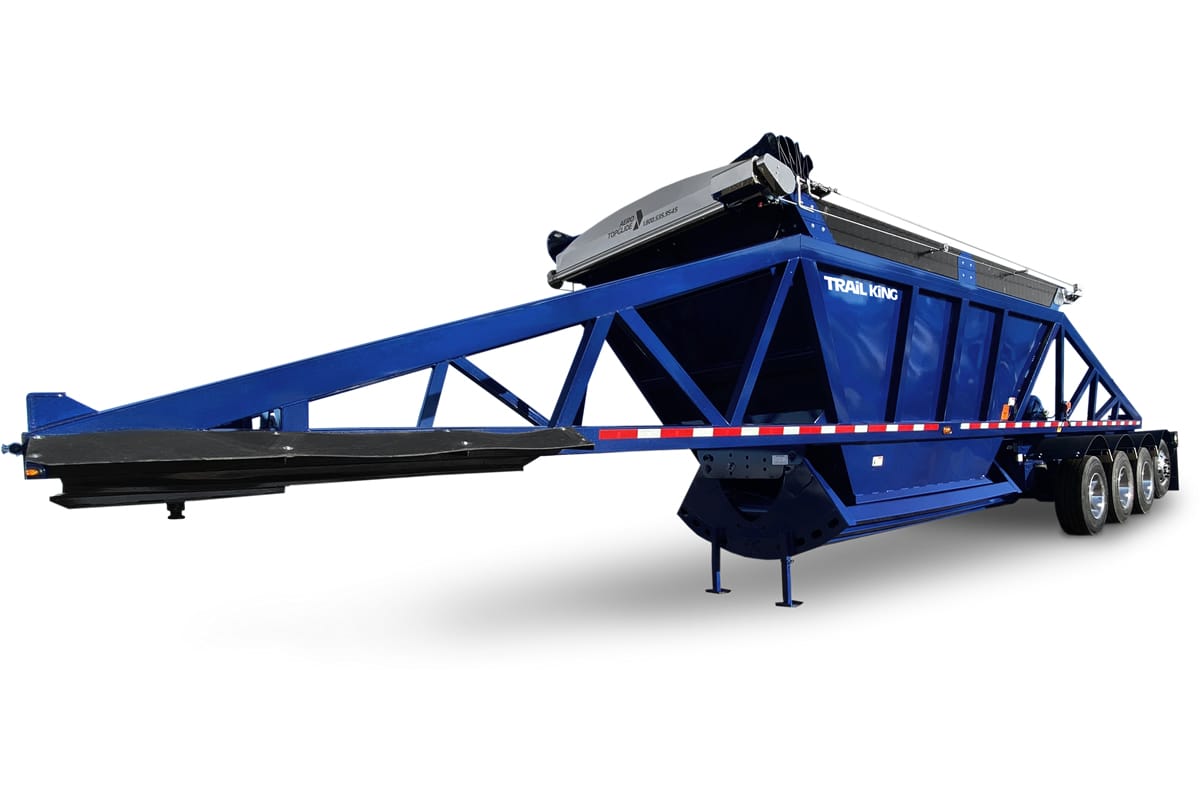

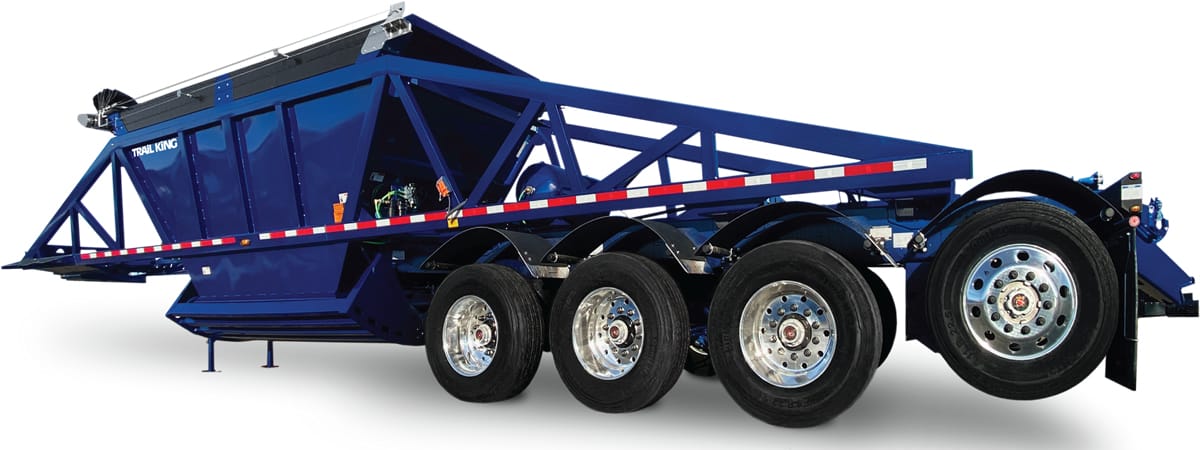

Lightweight, High-Capacity Bottom Dump Trailers
Maximize fleet ROI with Trail King bottom dump trailers. Our engineered, lightweight, cross-bracing and gusset design eliminates stress-point flexing while increasing payload capacity. This is built for superior weight savings and hauling performance. Engineered for rugged durability and global hauling efficiency.
Our bottom dump trailers can haul more payloads than ever before.
The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager.
| TKBD Bottom Dump Trailer Performance Specs | BD11-202 | BD15-254 | BD15-252 | BD22-362 | BD22-402 | BD22-433 | BD22-484 |
|---|---|---|---|---|---|---|---|
| Capacity | 11 cu. yds. | 15 cu. yds. | 15 cu. yds. | 22 cu. yds. | 22 cu. yds | 22 cu. yds | 22 cu. yds |
| Overall length | 19’ 11” | 24’ 8” | 24’ 8” | 34’ 8” | 39′ 8″ | 42′ 8″ | 47′ 8″ |
| Overall height | 8′ 4” | 9’ 3” | 9’ 3” | 9’ 3” | 9’ 3” | 9’ 3” | 9’ 3” |
| Overall width | 102” | 102” | 102” | 102” | 102” | 102” | 102” |
| KP to center of last axle | 15′ 11″ | 19’ | 20’ 11″ | 31’ 11″ | 35′ 11″ | 38′ 11″ | 43′ 11″ |
| Empty weight | 9,925 lbs. | 15,050 lbs | 10,150 lbs | 11,533 lbs | 11,800 lbs | 13,890 lbs | 16,325 lbs |
