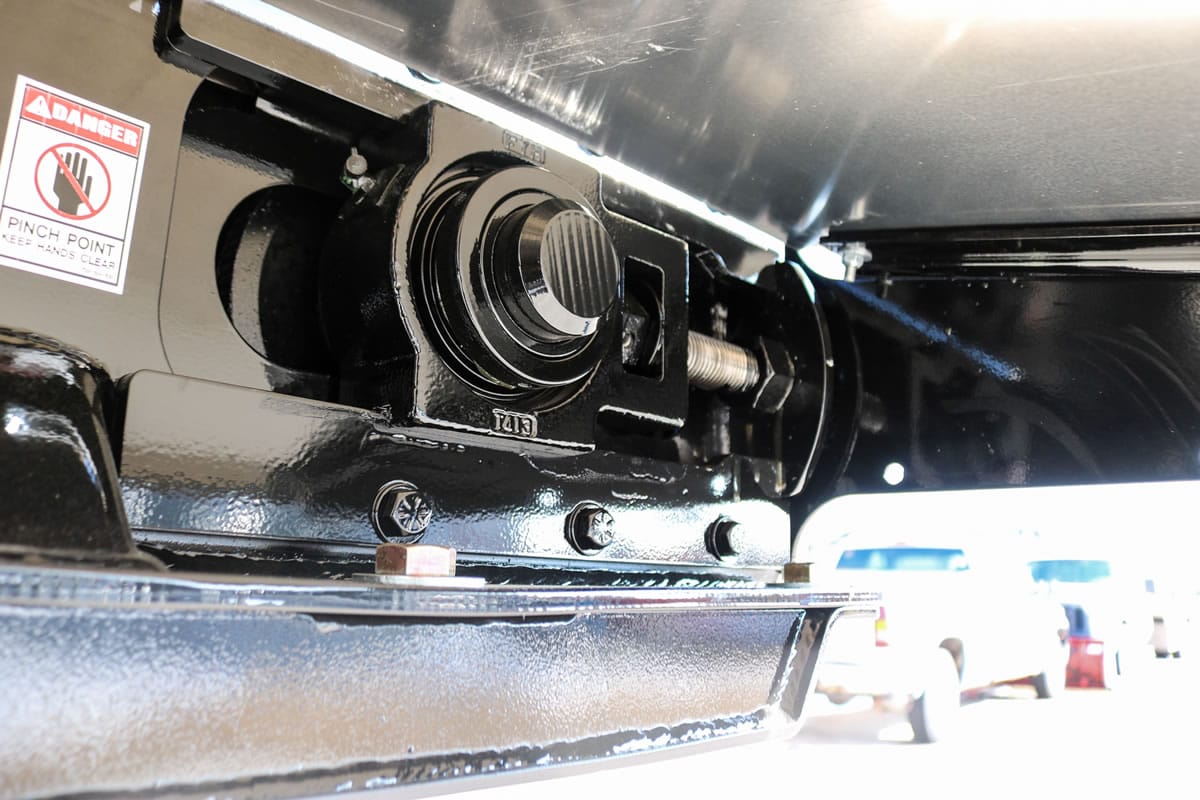

Front Bearing Tensioner Assembly
Heavy duty outboard design for easier maintenance and servicing.

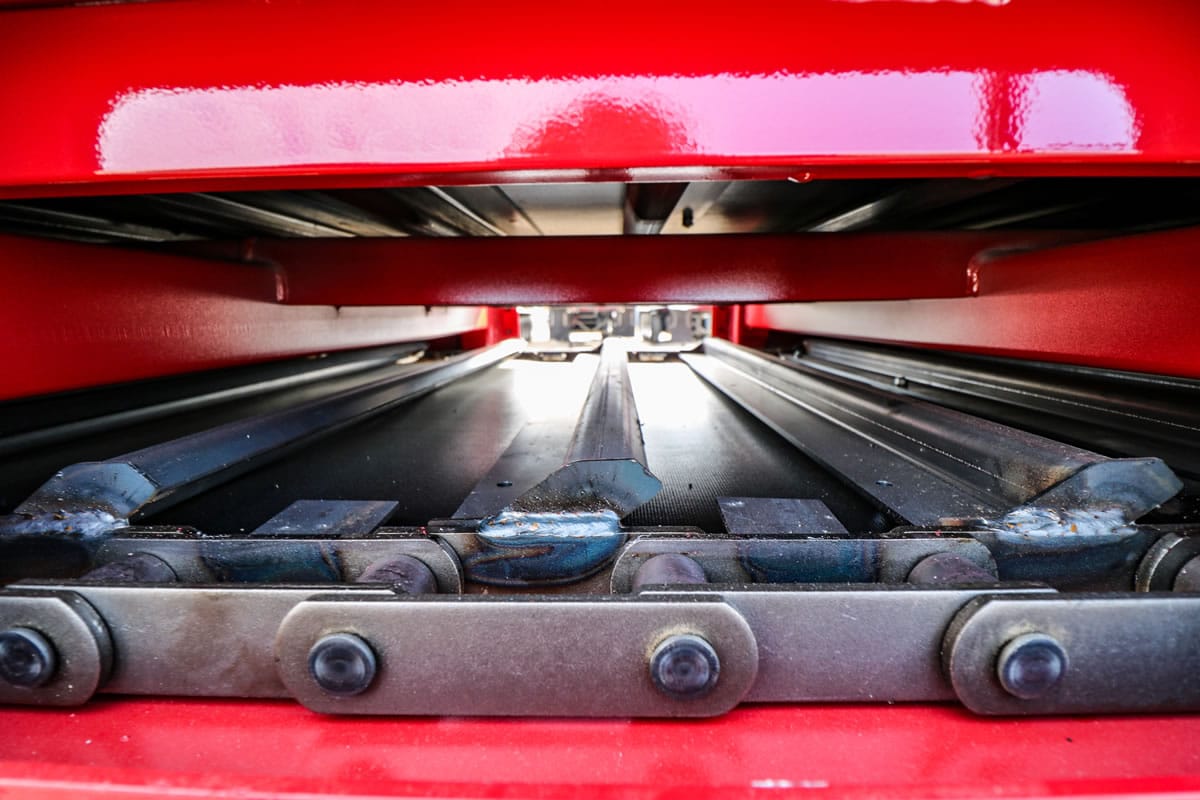

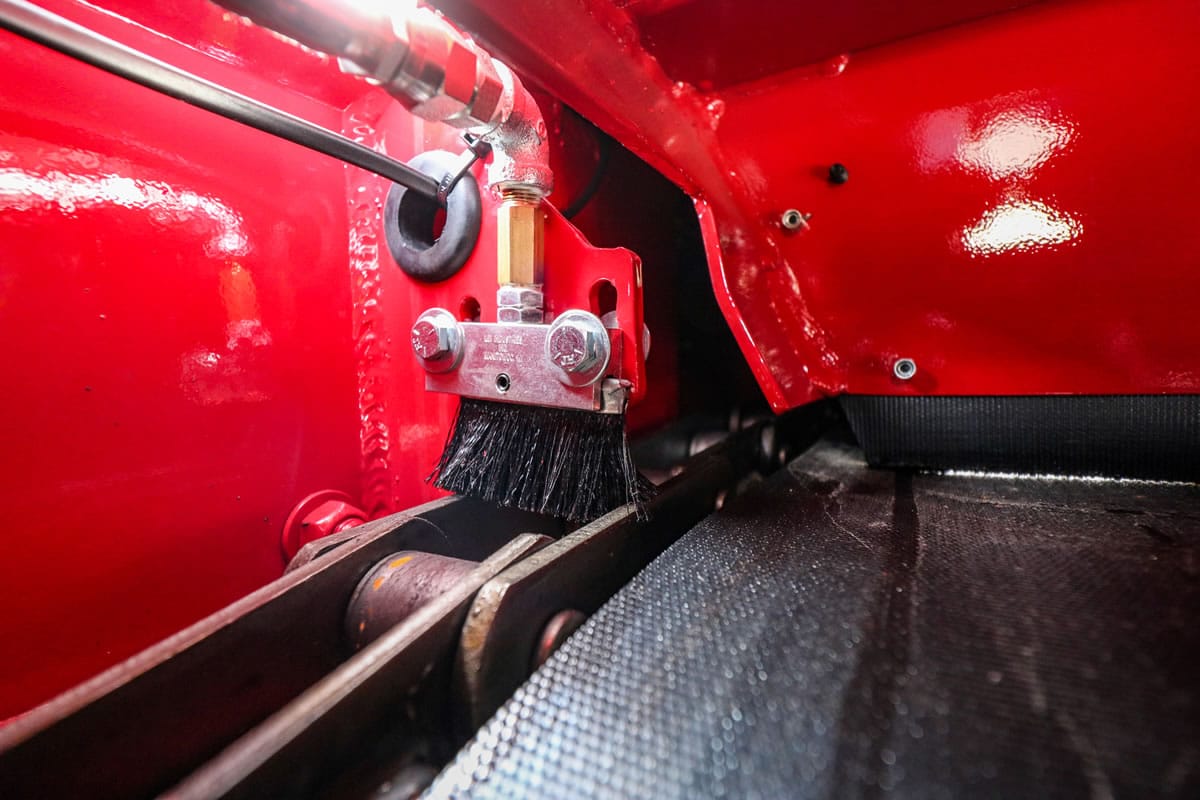

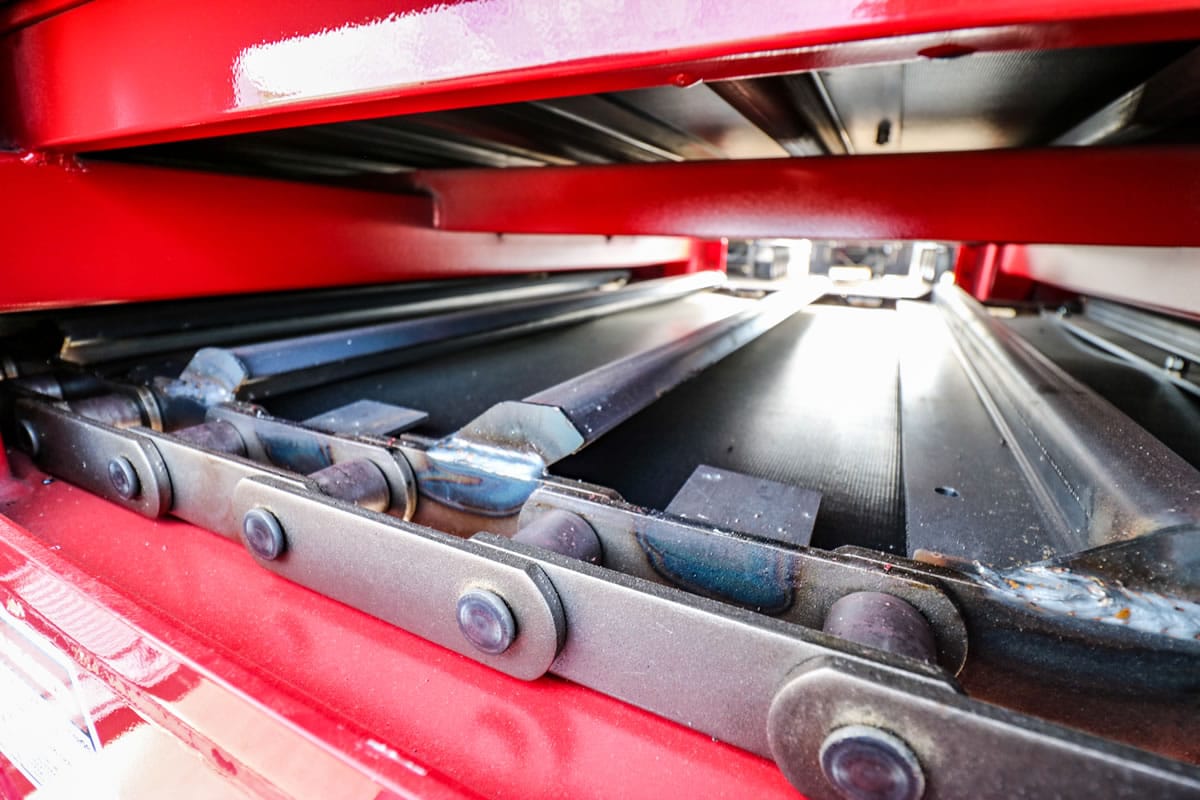

Pitch Roller Chain
4” pitch chain with frictionless z-bar design. Sprocket & chain guide profile capable of reversing option.

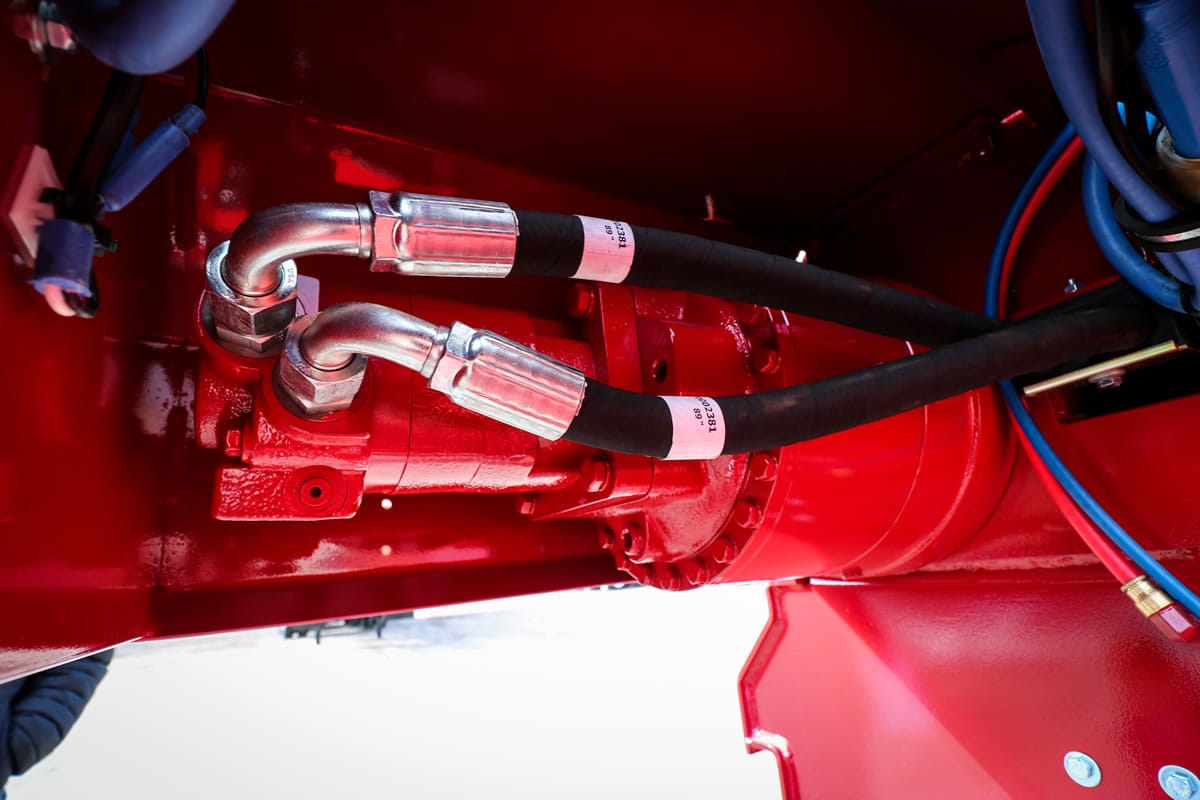

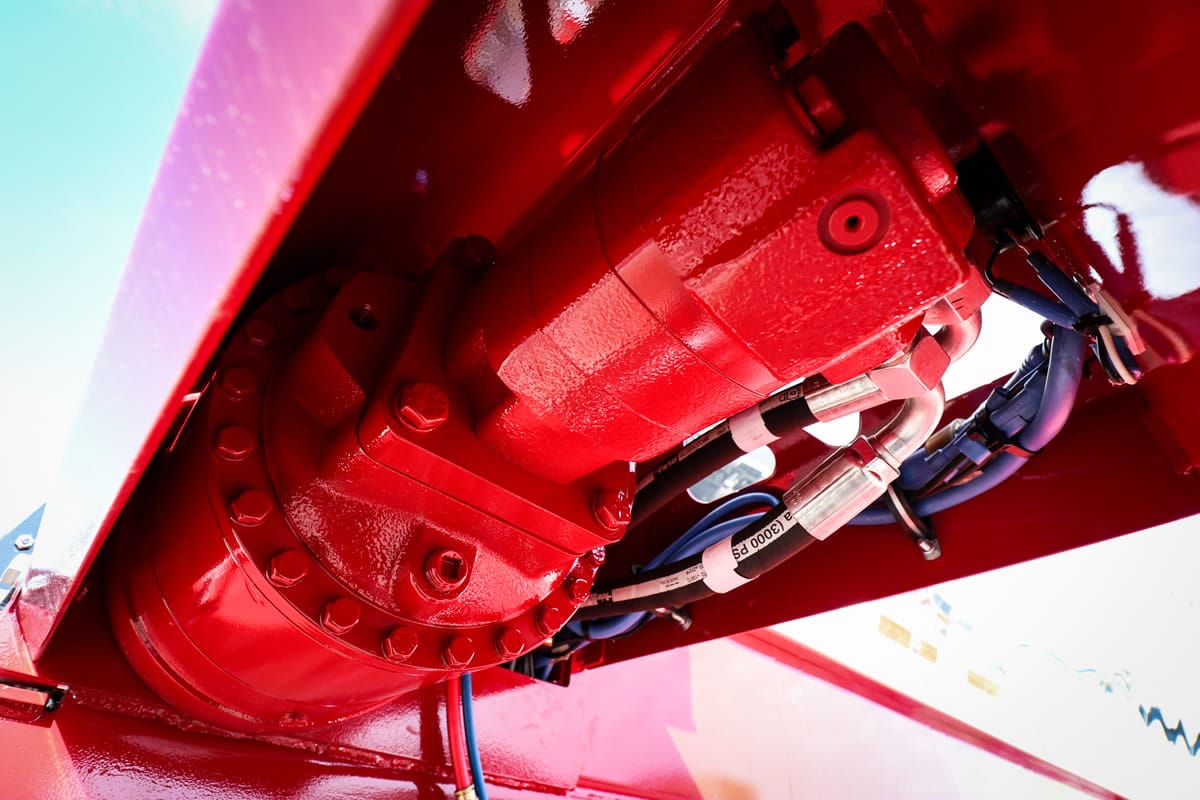

Hydrostatic Drive
Single or dual direct hydrostatic drive with double reduction planetary gearbox and drive tube.

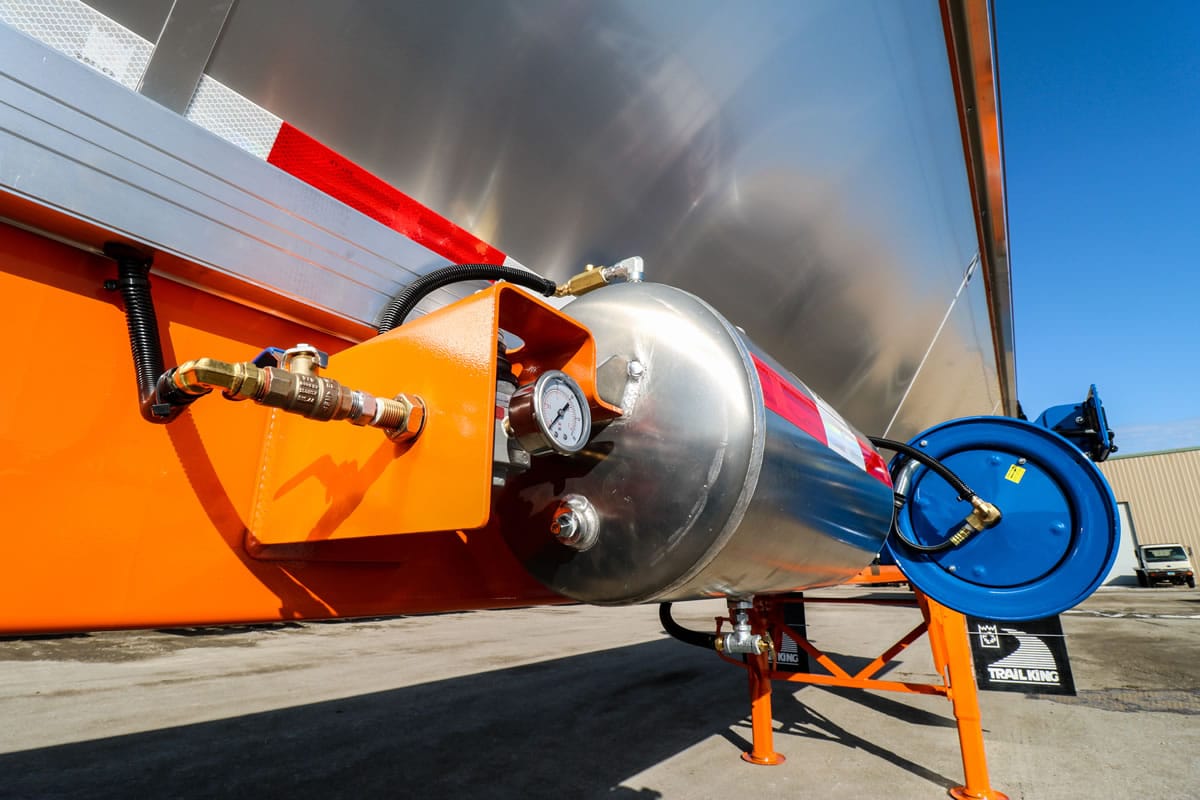

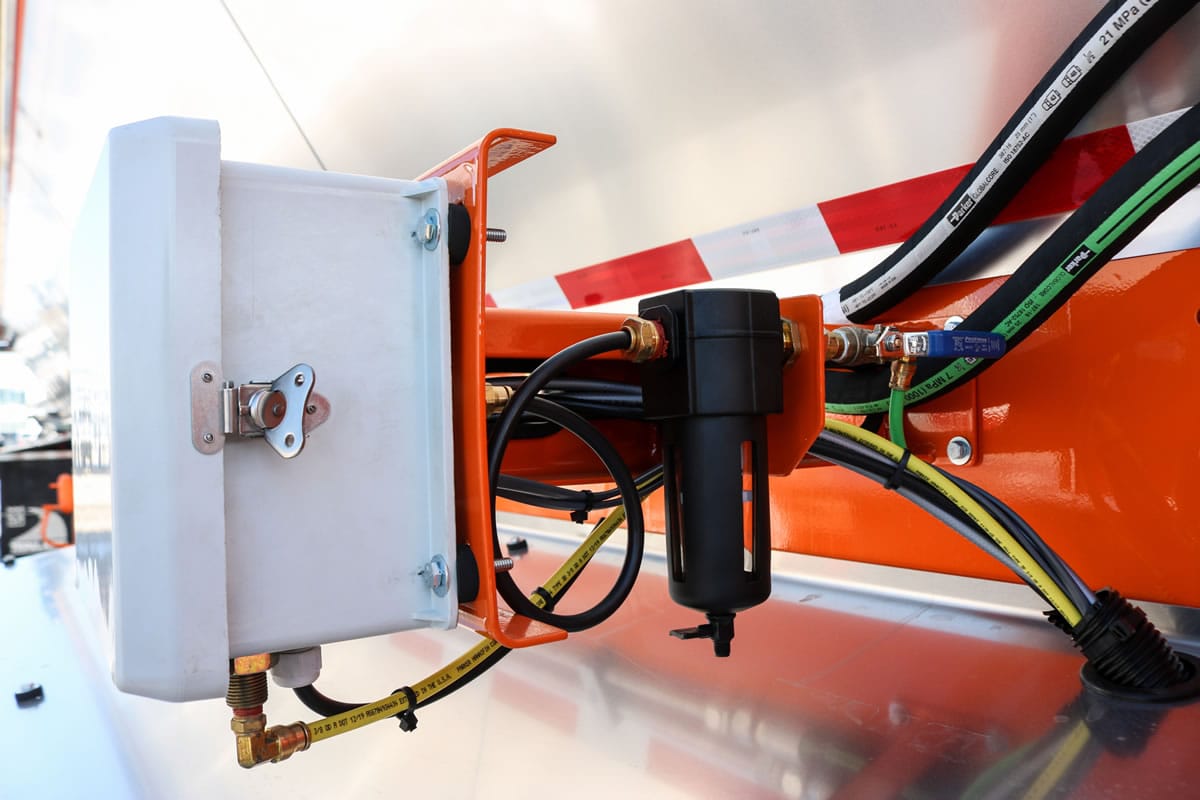

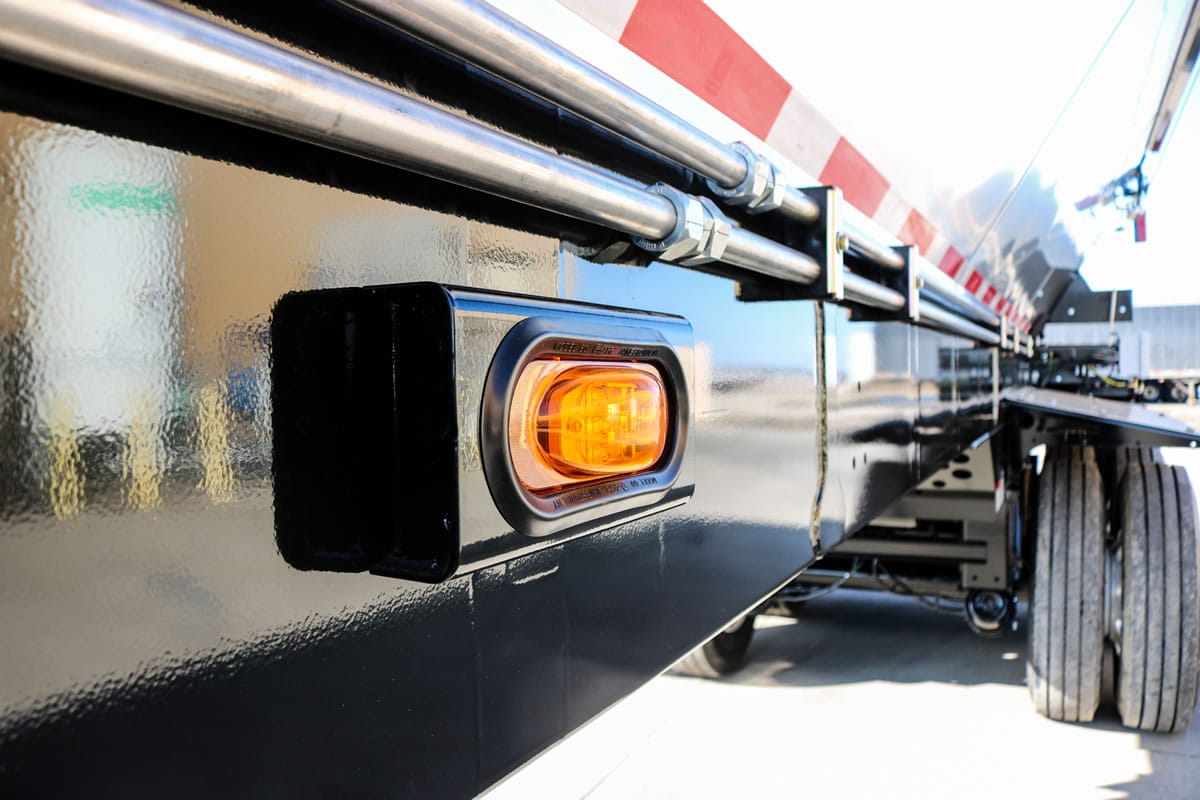

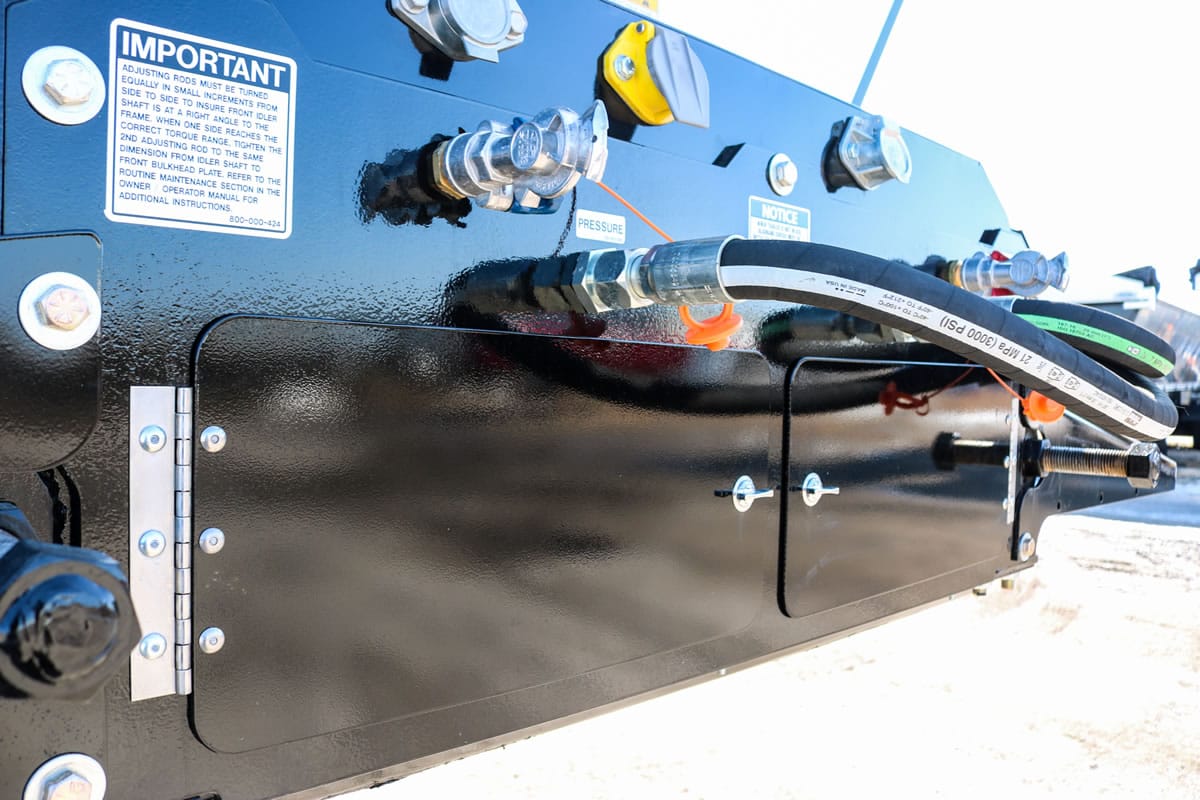

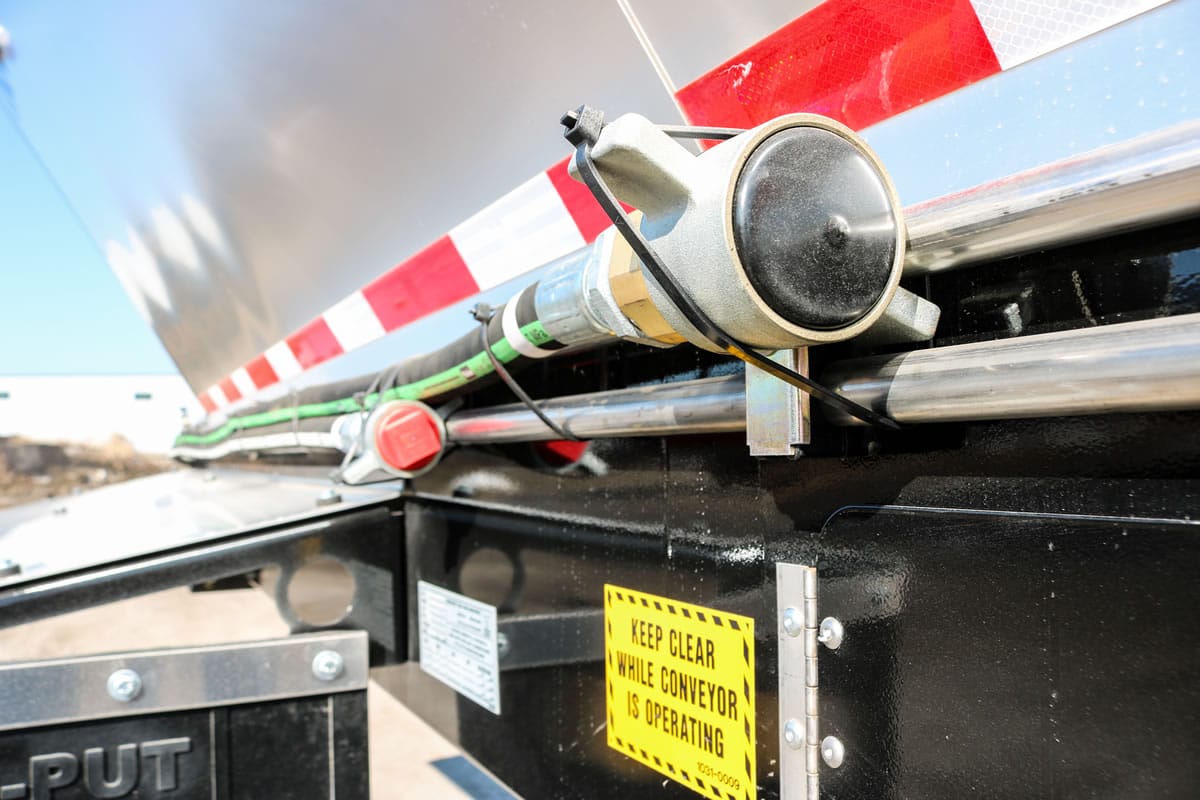

Exterior Mounted Lines
Air and electrical mounted standard with aluminum covers or optional stainless steel.

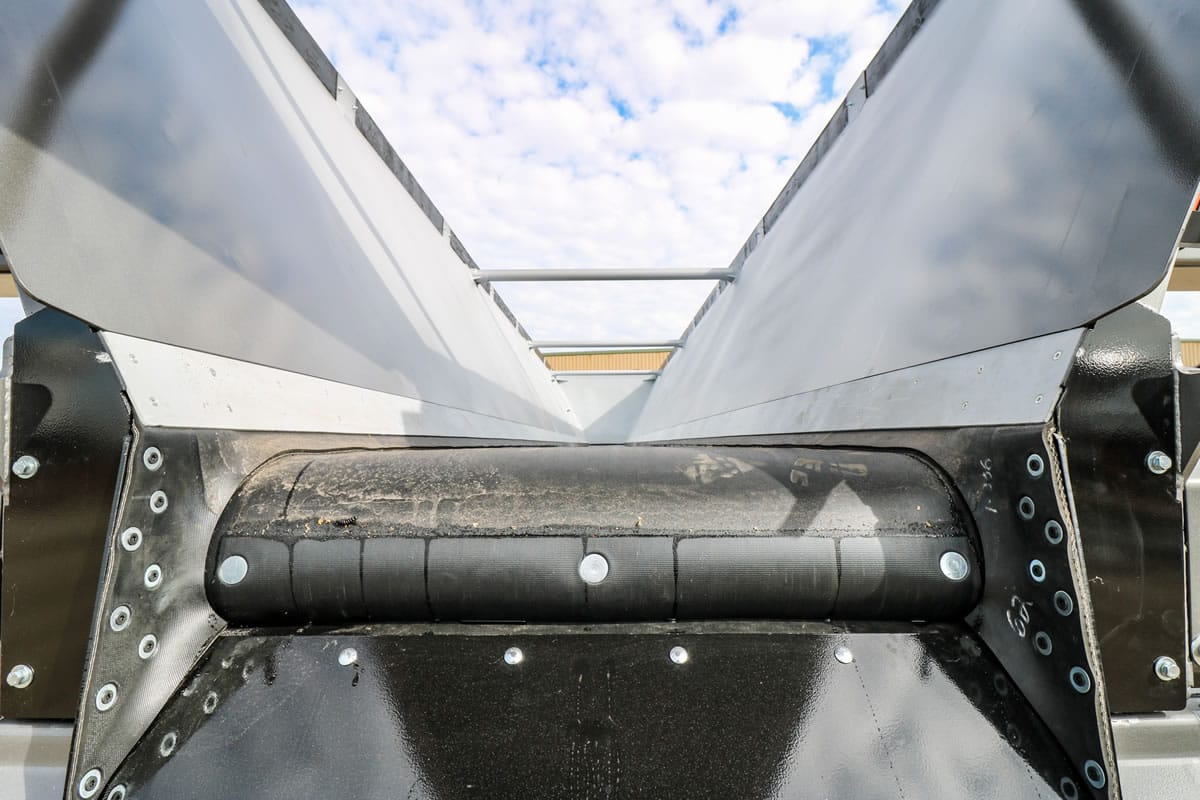

Hopper Walls
Constructed with longer lasting .160" (4mm) thick AR450 wear plate (rear half standard, full length optional).

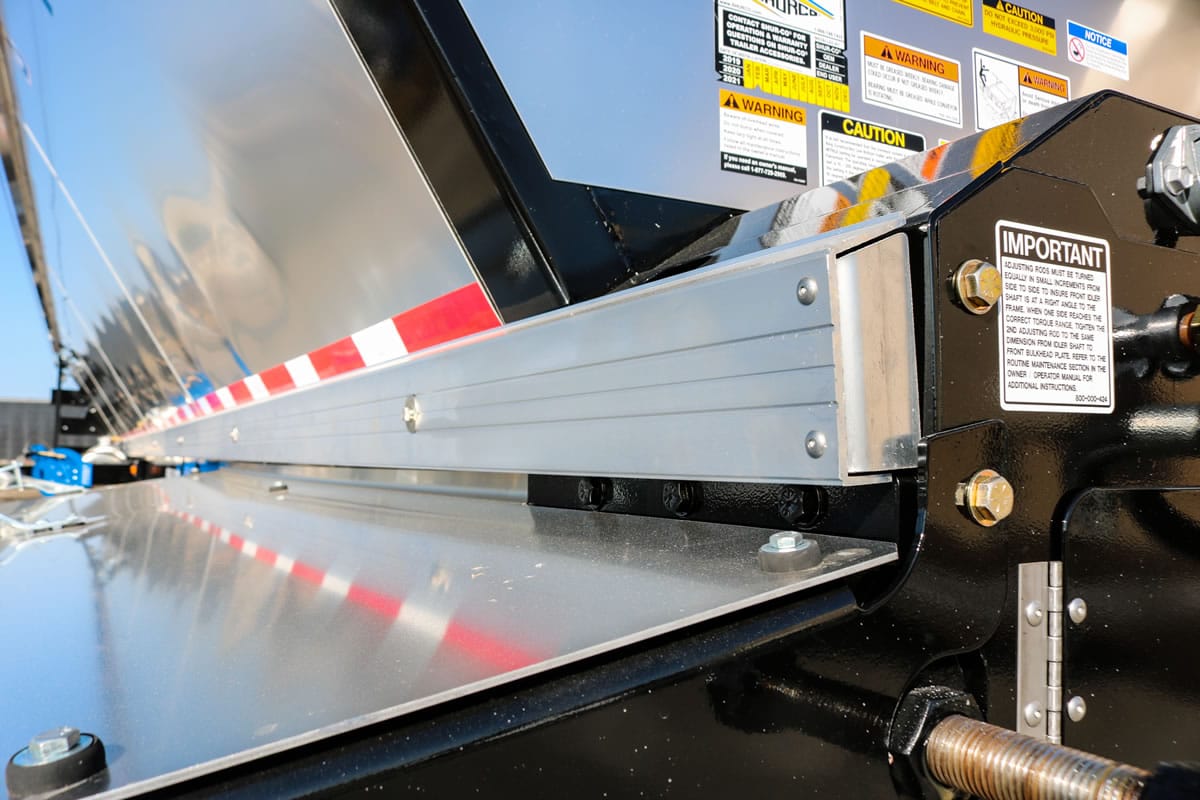

Exterior Sheeting
Aluminum shown on full length trailer. Stainless steel shown above. Side wall and flat front wall (insulation optional) attached to steel body with high strength adhesives. Choose aluminum or stainless.

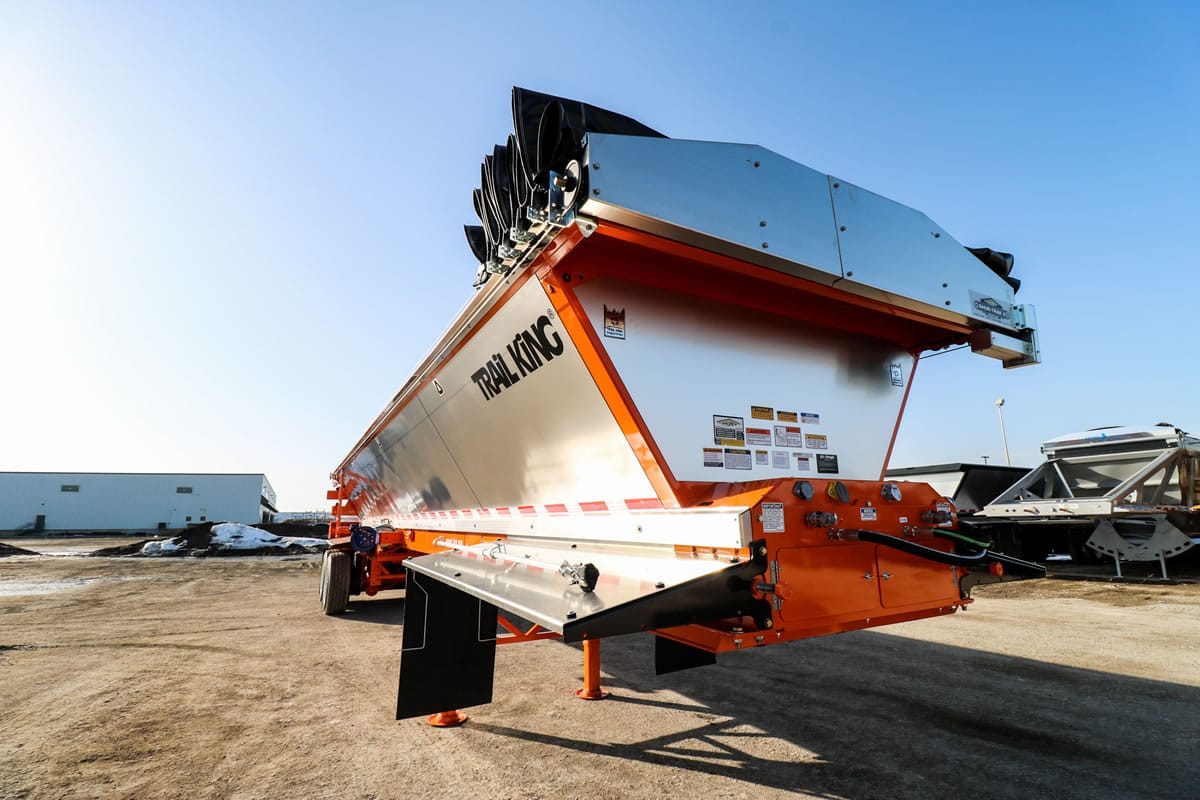

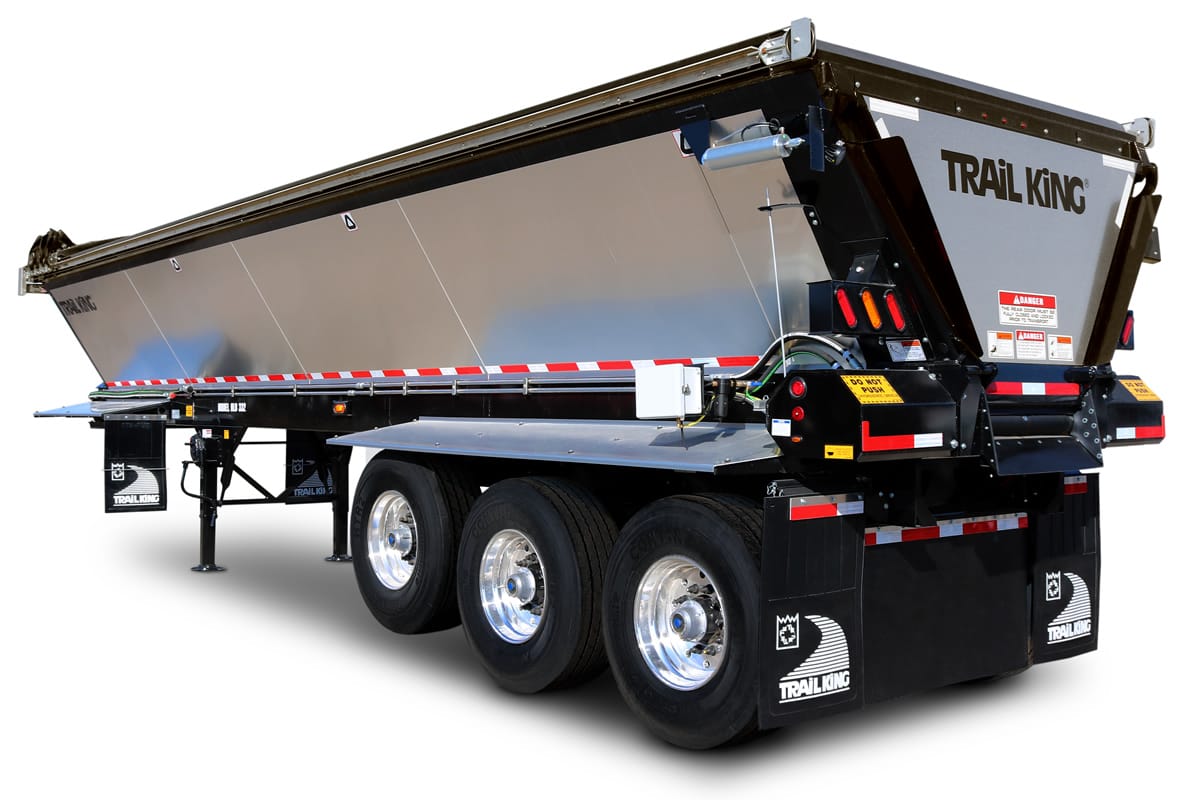

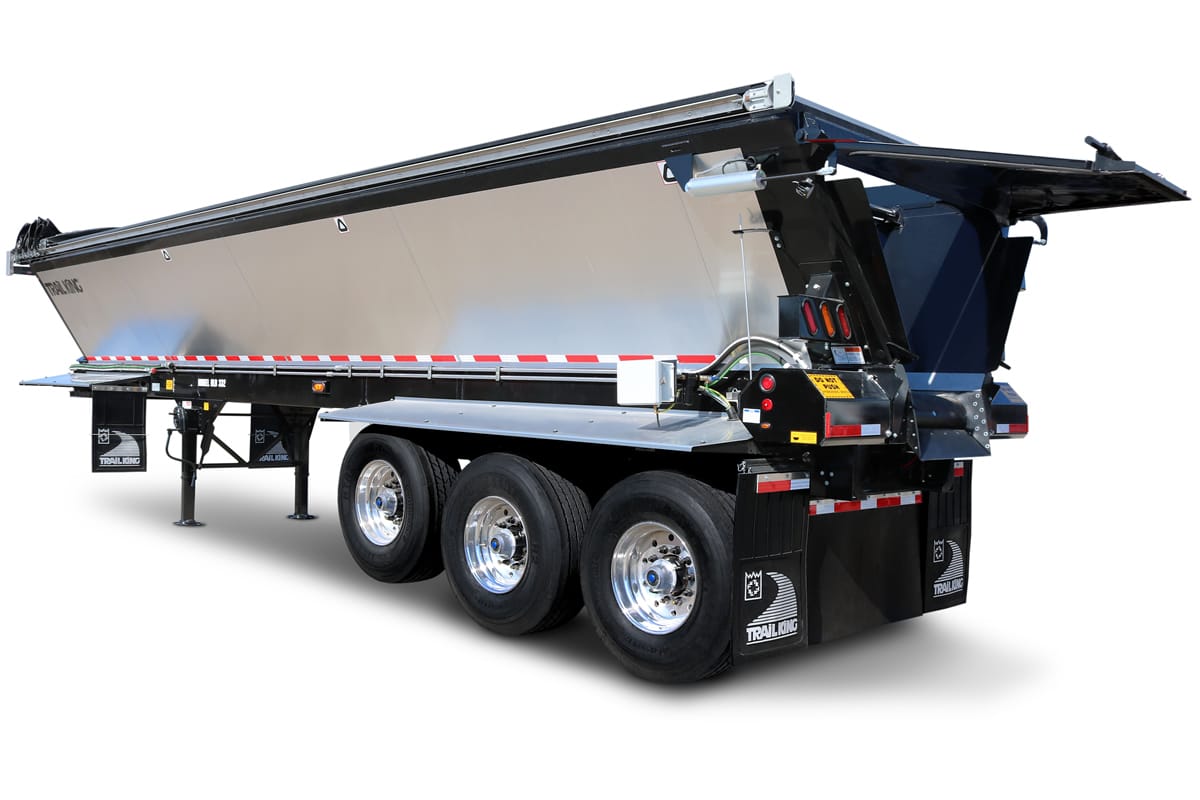

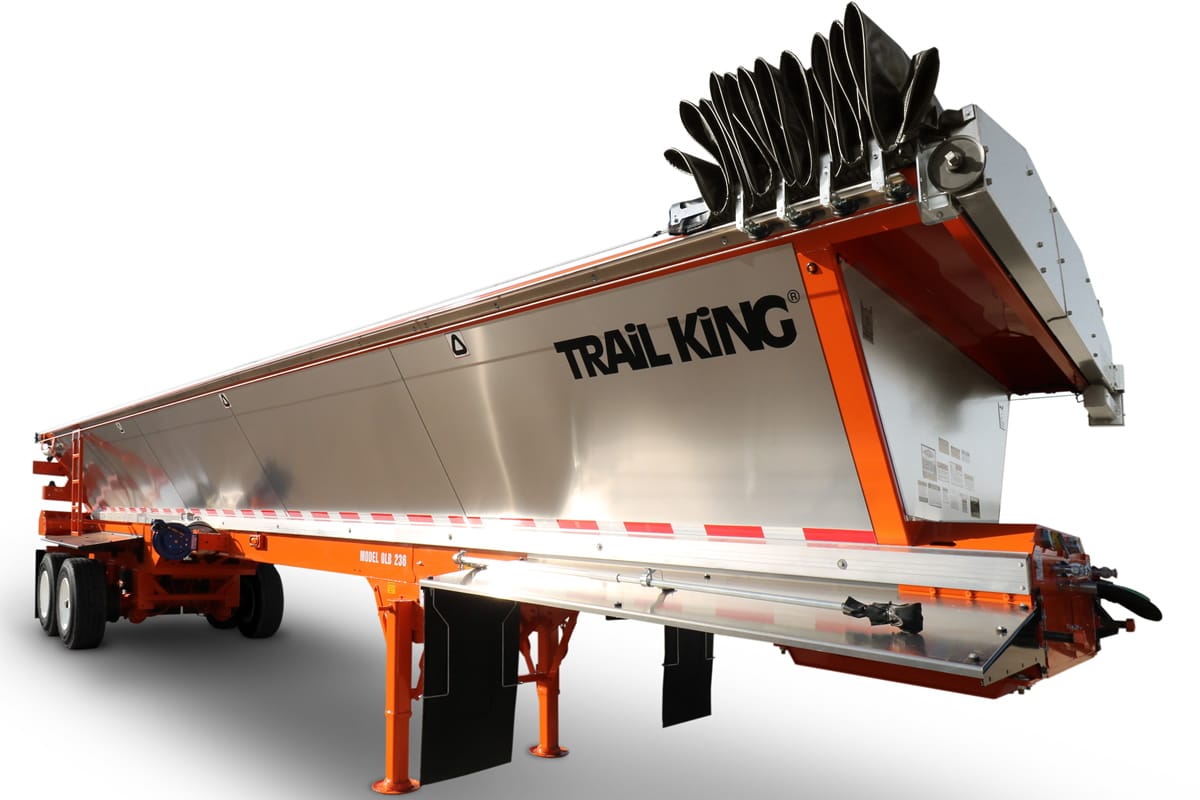

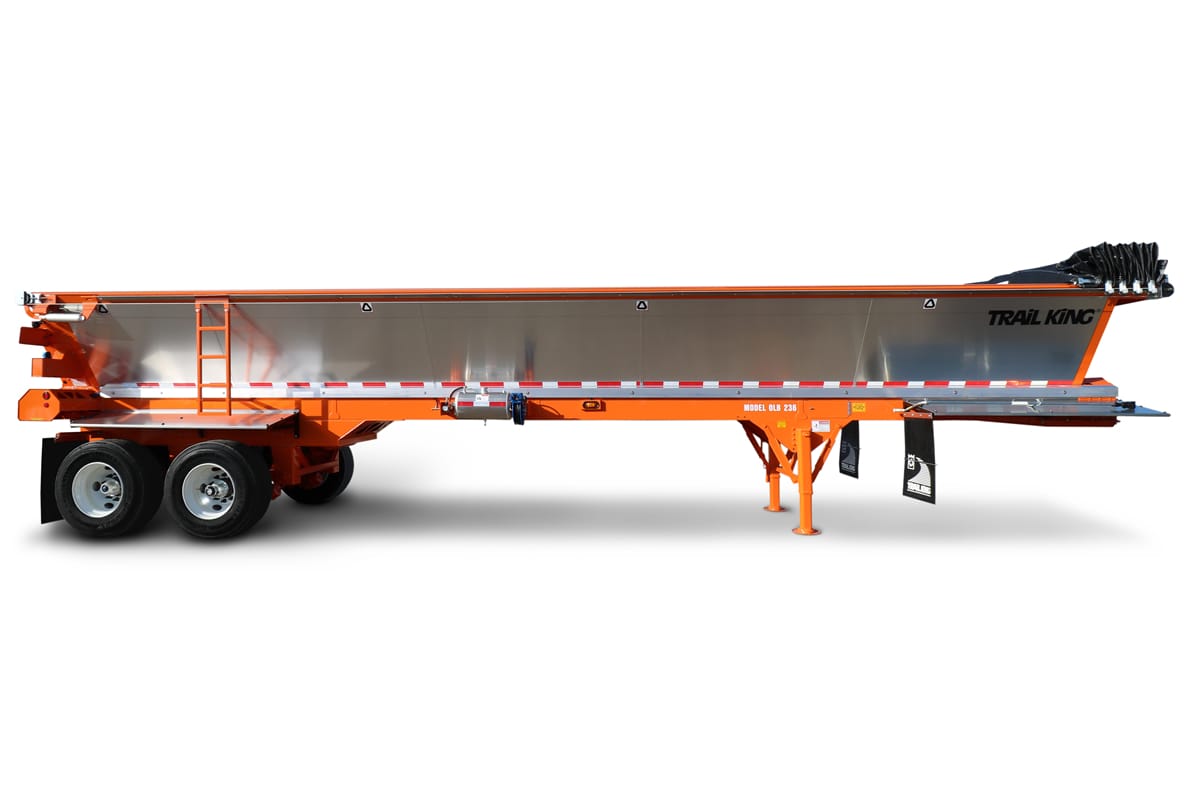

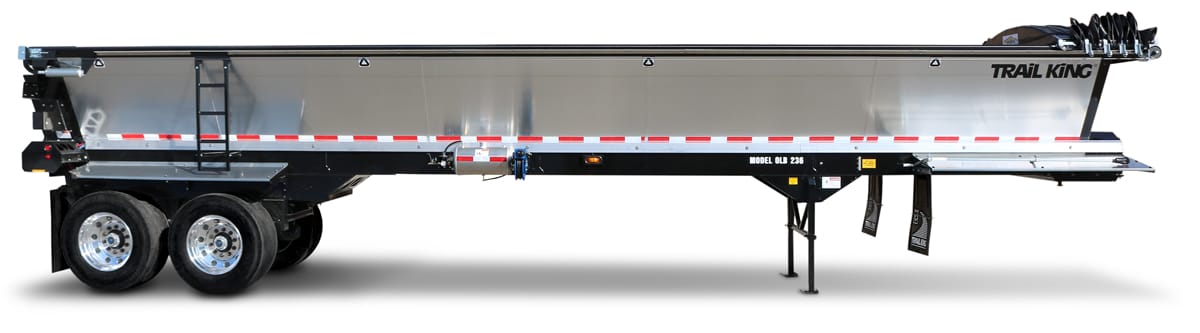

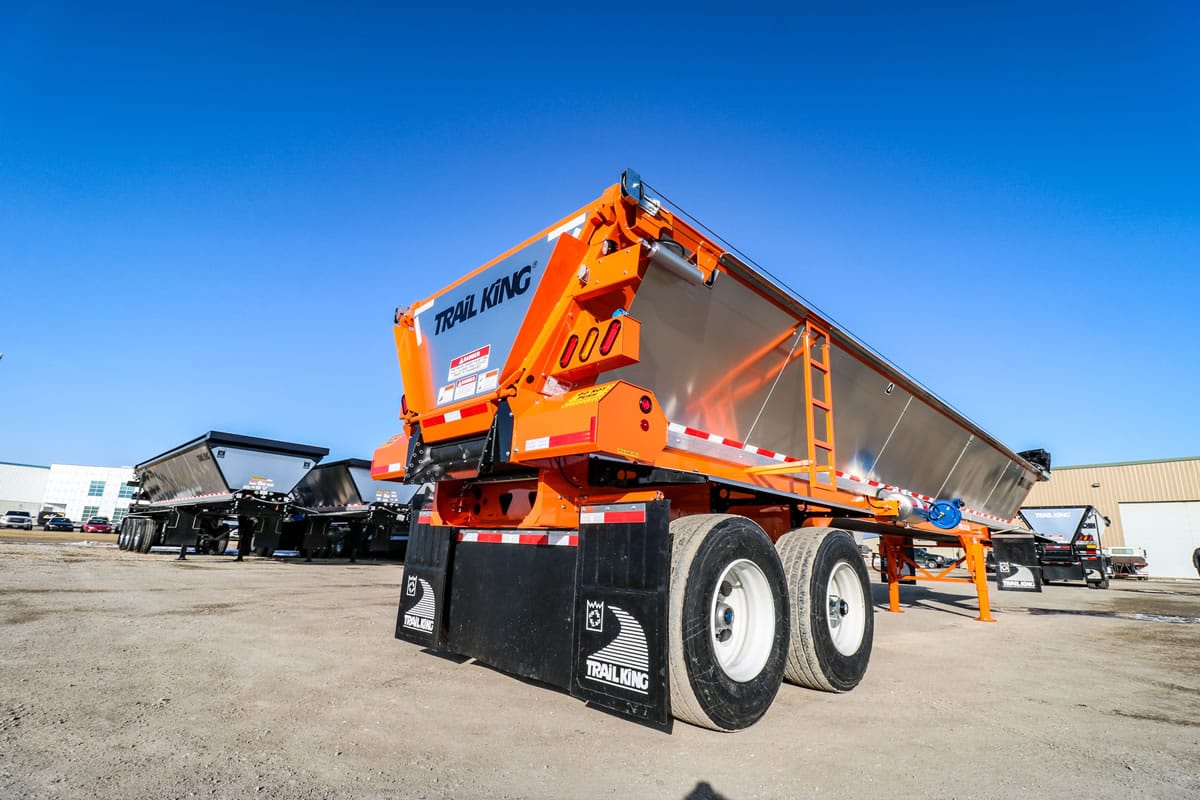

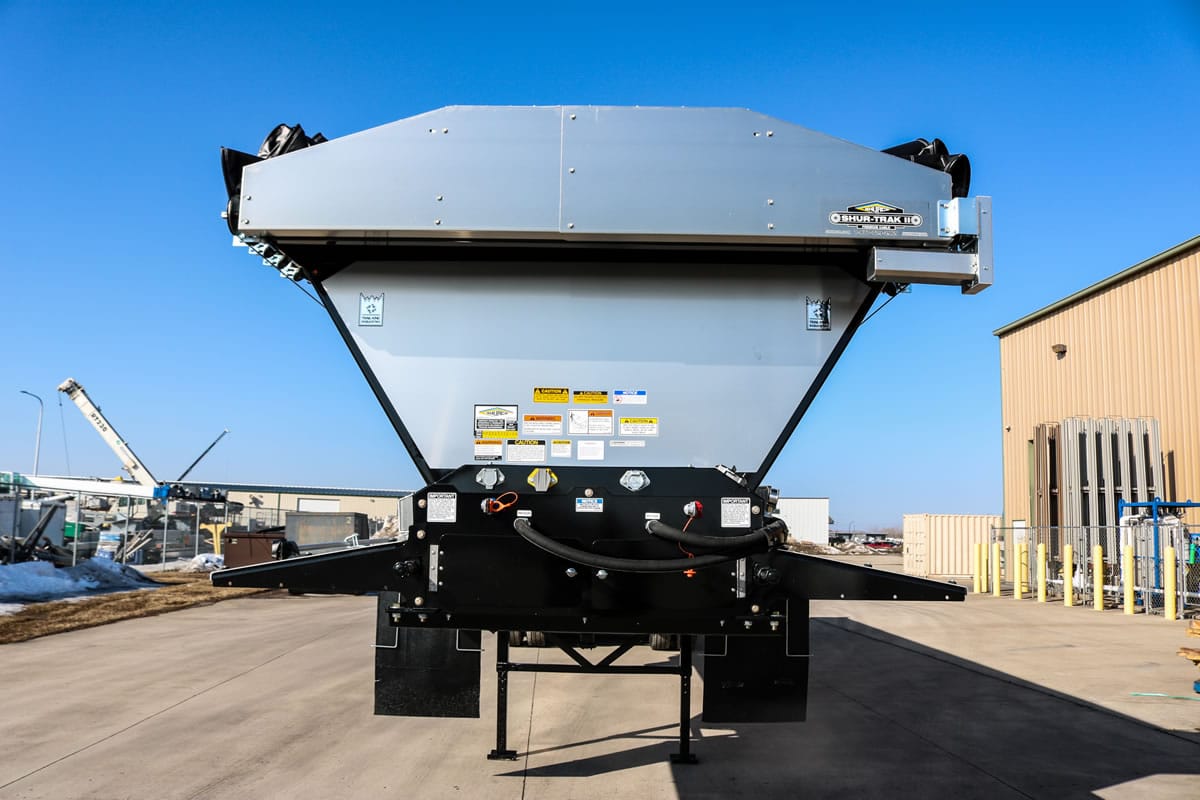

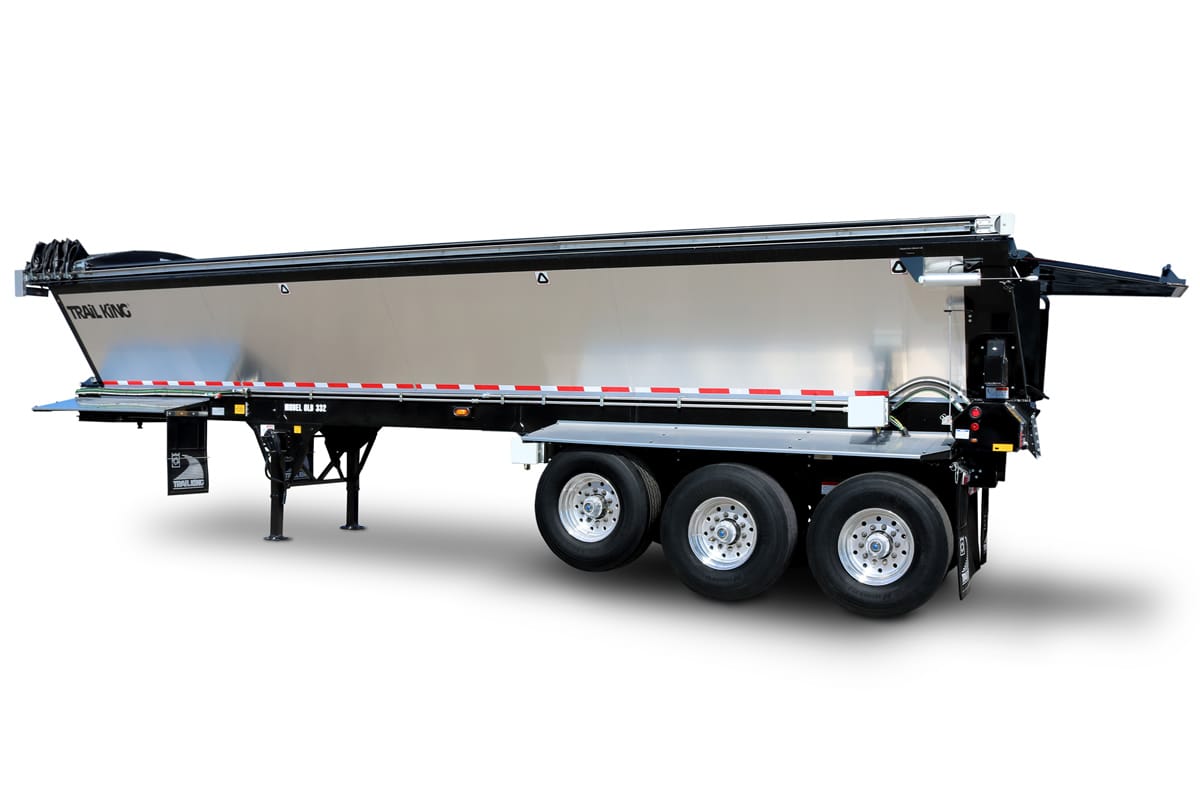

TKLB Live Bottom
Designed for strength and speed – this live bottom delivers! Our innovative body distributes weight to maximize your payloads and maintain high levels of maneuverability with multiple axle configurations.
The frictionless drive system provides efficient horizontal discharge while unloading in one revolution or less! The aerodynamic design features smooth side panels, providing corrosion prevention and a clean shiny finish. This trailer will provide a high level of return on your investment with consistent performance.
The literature and image assets in this tab are digital assets, best for viewing online. To request print literature or media, please contact your District Sales Manager.
| Standard Equipment | 226-102 | 426-102 | 332-102 | 236-96 | 336-102 | 440-102 |
|---|---|---|---|---|---|---|
| Capacity | 24 cu. yds. | 24 cu. yds. | 29 cu. yds. | 28 cu. yds. | 32 cu. yds. | 35 cu. yds. |
| Overall length | 31’ 2” | 31’ 2” | 37’ 2” | 41’ 2” | 41’ 2” | 45’ 2” |
| Overall height | 9’ 4” | 9’ 4” | 9’ 4” | 8’ 11” (96″Body) | 9’ 4” | 8’ 4” |
| King pin height | 49” | 49” | 49” | 49” | 49” | 49” |
| King pin to center of last axle | 25’ 11″ | 25’ 11″ | 31’ 11″ | 35’ 11″ | 35’ 11″ | 39’ 11″ |
| Number of Axles | 2 | 4 | 3 | 2 | 3 | 4 |
| Empty weight ±3% | 12,000lbs. | 15,130 lbs. | 15,170 lbs. | 13,300 lbs. | 15,570 lbs. | 17,230 lbs. |
