TKAHTC Grain Hopper Conveyer
TKAHTC Grain Hopper Conveyer

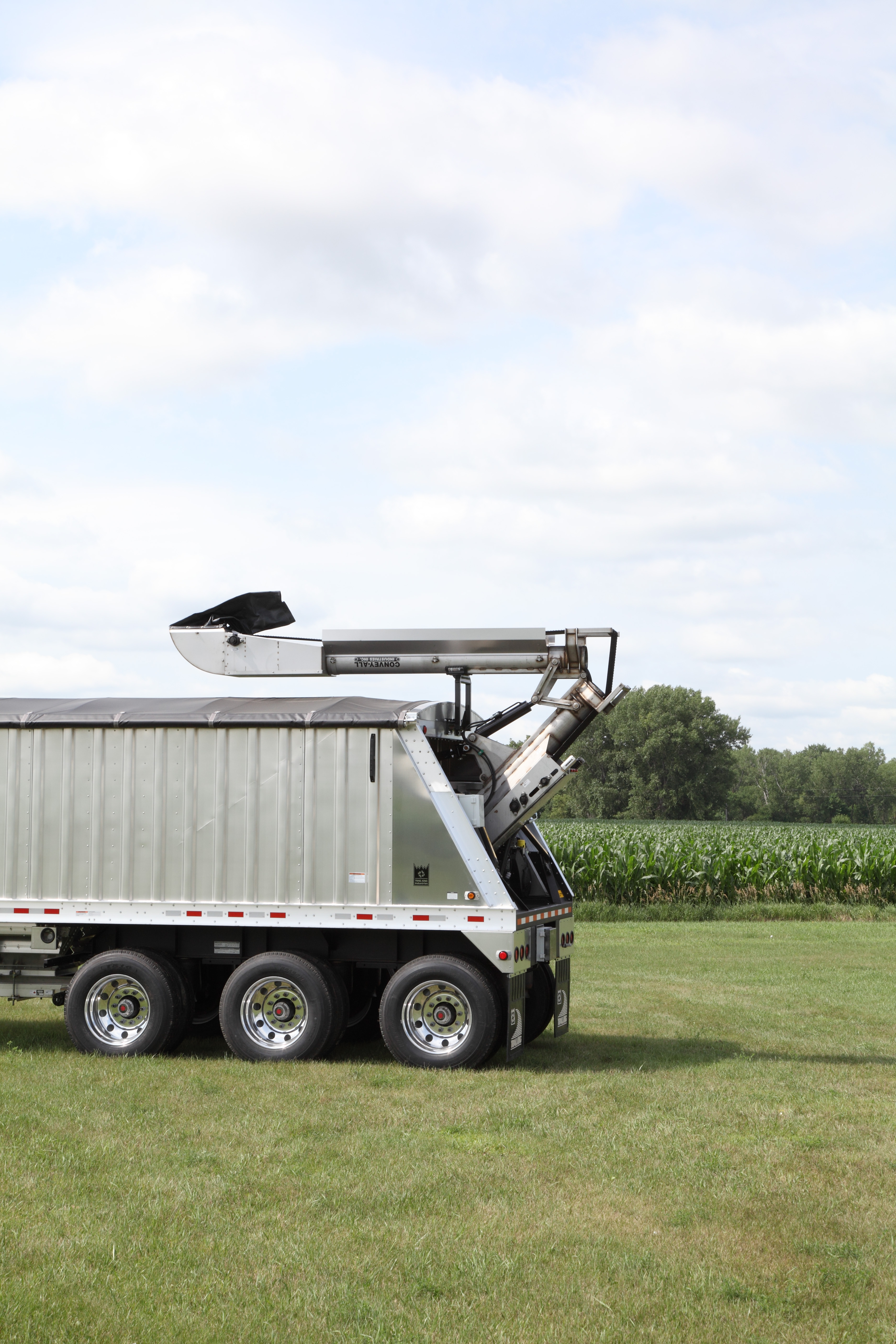

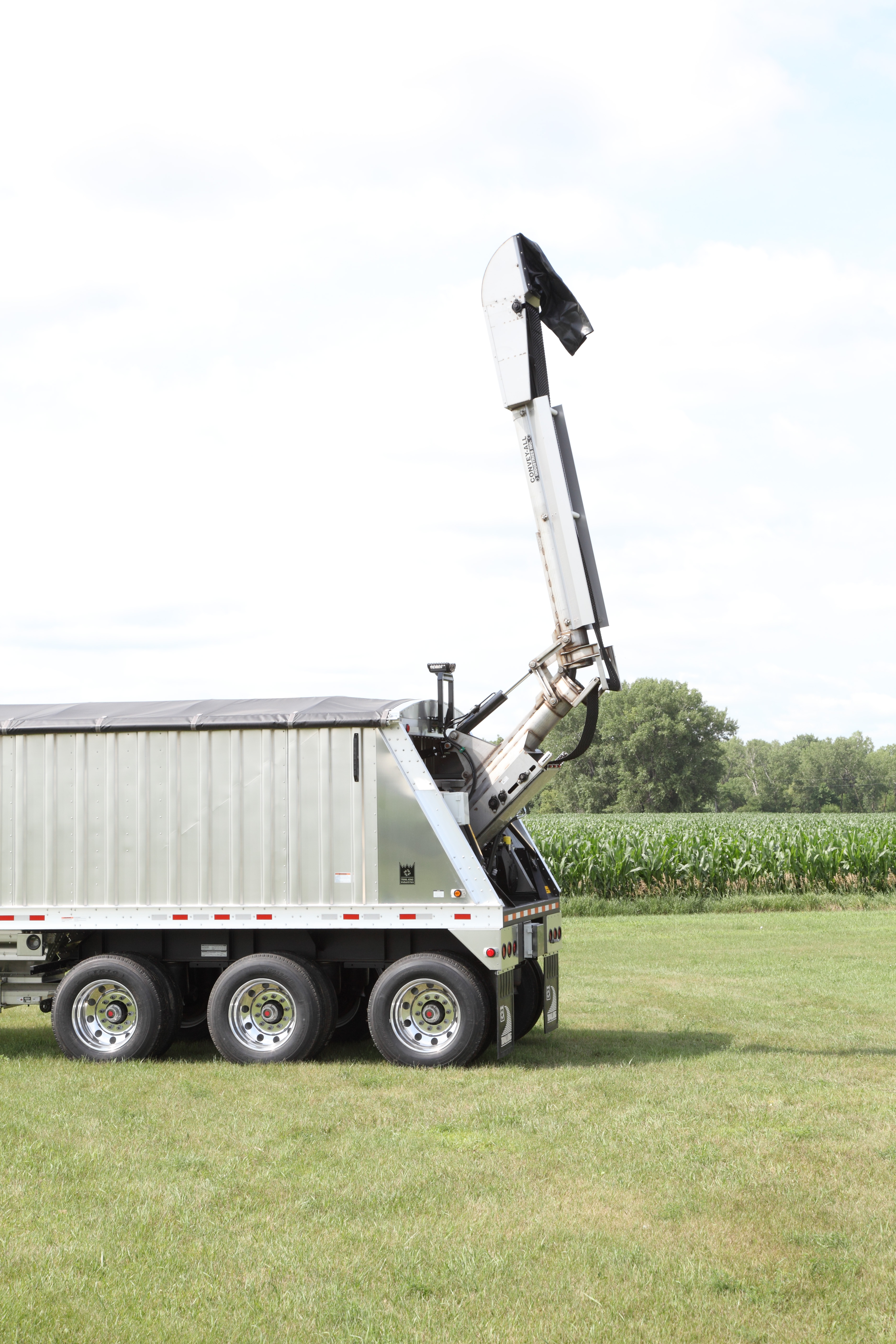

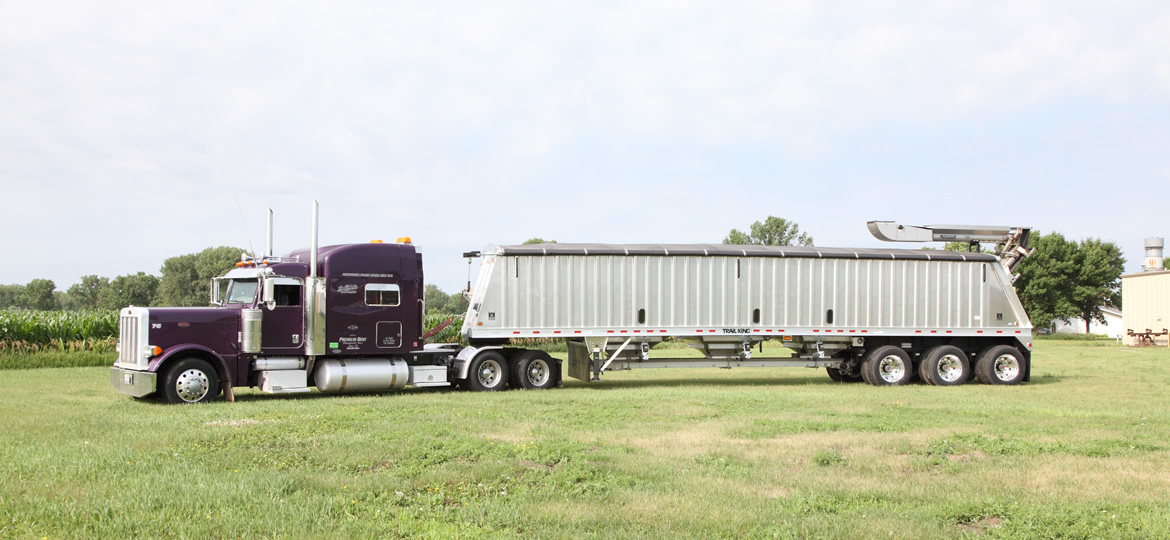

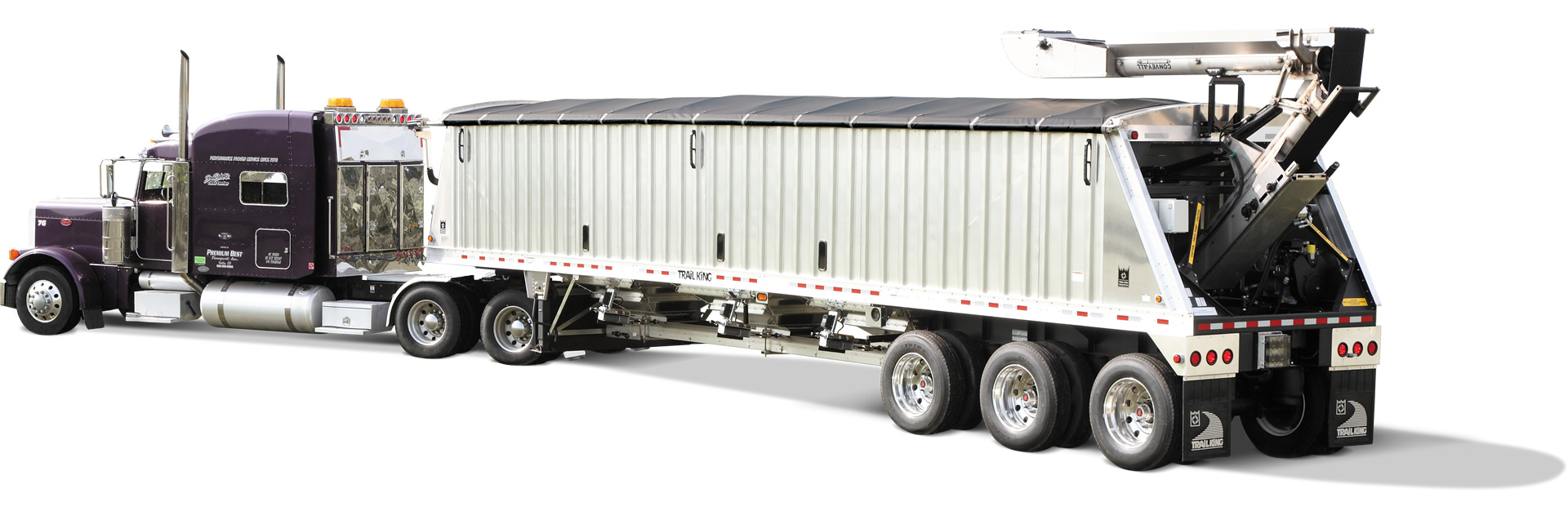

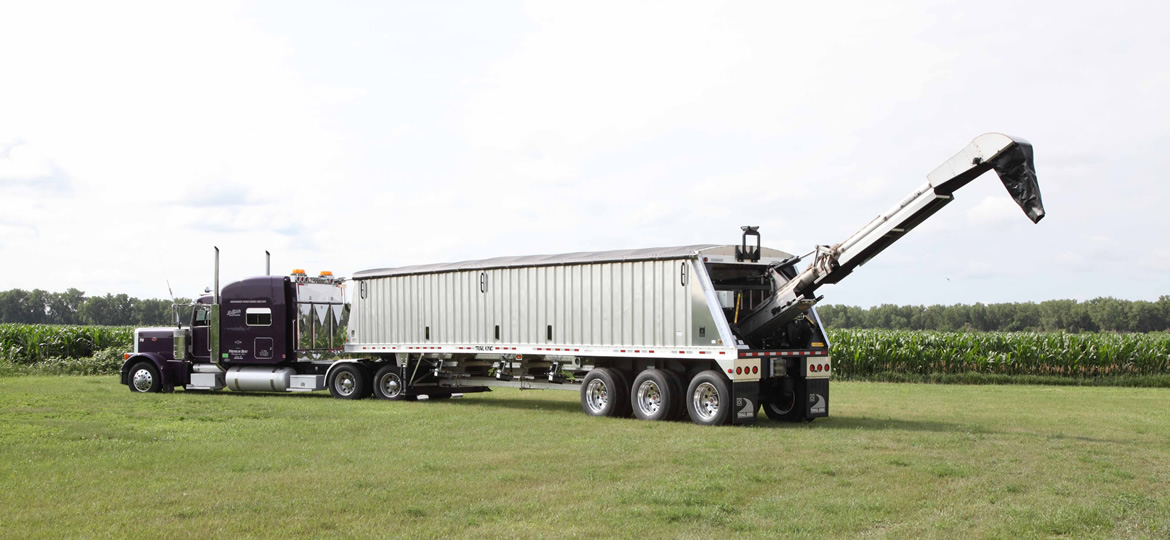

Trail King’s Aluminum Grain Hopper Conveyor trailer is the most advanced and reliable multi-purpose trailer unit in the industry. This strong, lightweight, stainless-steel conveyor attaches to our standard aluminum grain hopper trailer, and it can be removed at any time.
Designed as light as 13,516 lbs, you’ll have the freedom to haul more in every load. Faster seeding and fertilizing is made possible with hauling capacities of up to 1,402 bushels (heaped) and a full 12’ side-to-side range of motion.
Find Your Specialized Solution
Call our toll-free number 800-843-3324
| STANDARD EQUIPMENT | AHTC 4102-0276 (U.S.) | AHTC 4102-0276 (Canadian) | AHTC 4503-0276 (U.S. & Canadian) |
|---|---|---|---|
| Trailer Length | 41' | 41' | 41' |
| Overall Width | 102" | 102" | 102" |
| Side Height | 76" | 76" | 76" |
| Overall Height with Caps | 13' 5" | 13' 5" | 13' 6" |
| Weight* | 13,516 lb. | 13,551 lb. | 16,649 lb. |
| Cubic Foot Volume* | 1566 cu. ft. | 1566 cu. ft. | 1566 cu. ft. |
| Bushel Capacity* (Level) | 1259 bu. | 1259 bu. | 1327 bu. |
| Horizontal Conveyor Clearance ? Empty / 24.5 Tires | 22" | 22" | 21" |

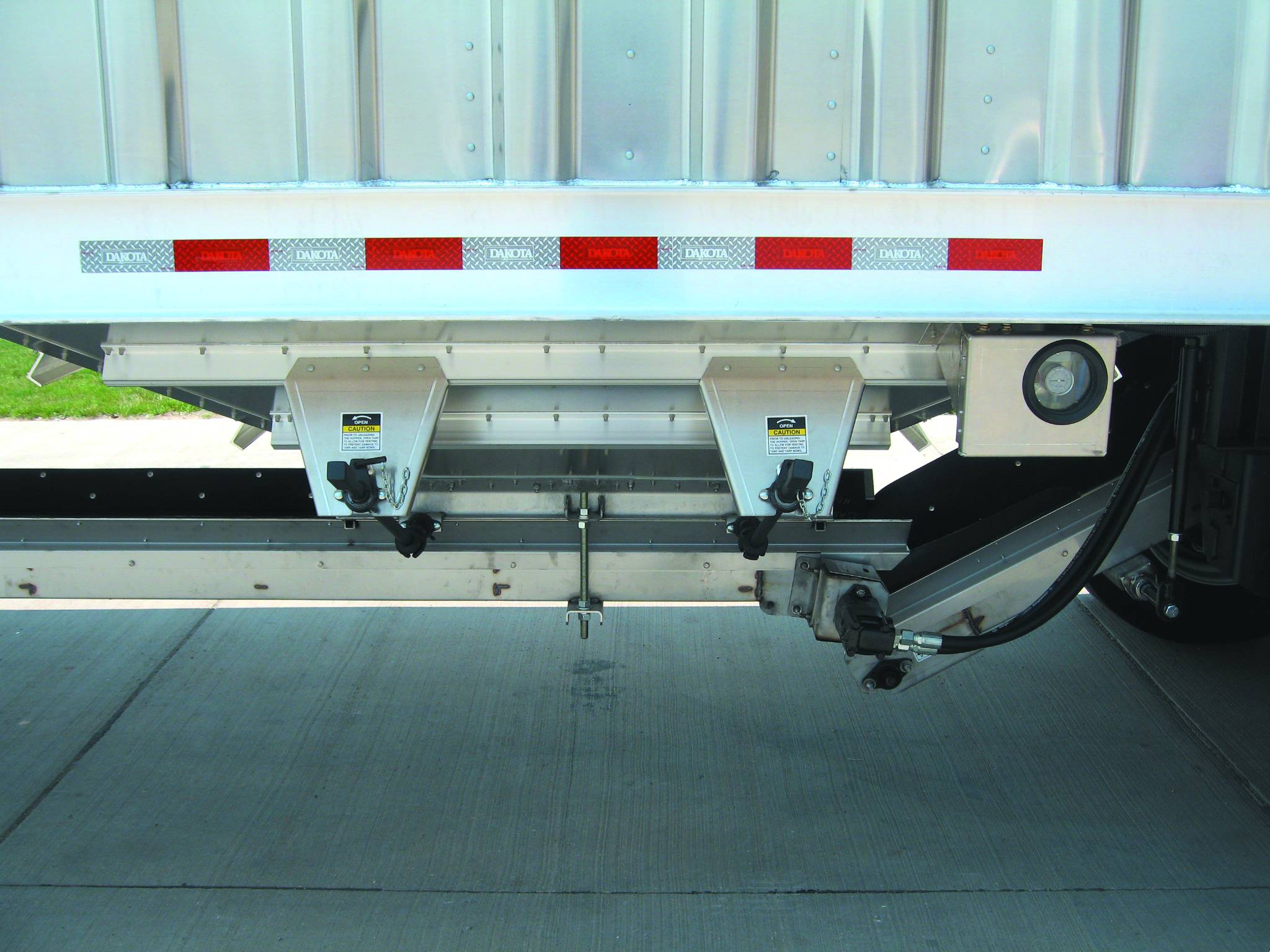

| Number of Hopper Doors | 2 | 2 | 2 |
| Hopper Door Opening | 20" x 26" | 20" x 26" | 20" x 24" |
| King Pin Setting | 18" | 18" | 18" |
| Clearance King Pin to Front of Landing Leg Brace | 88" | 88" | 85" |
| King Pin to Center of Rear Axle | 37' 3" | 37' 3" | 41' 3" |
