TKAPB Aluminum Pneumatic Bulk
TKAPB Aluminum Pneumatic Bulk

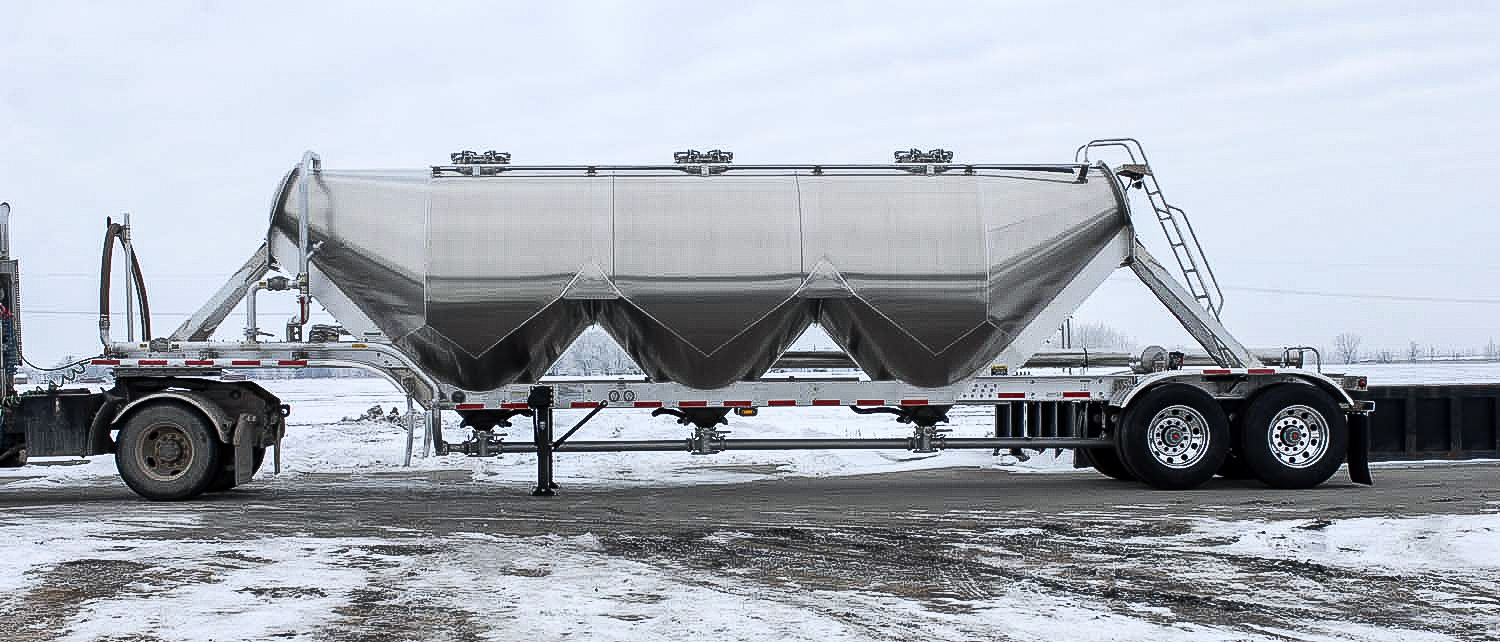

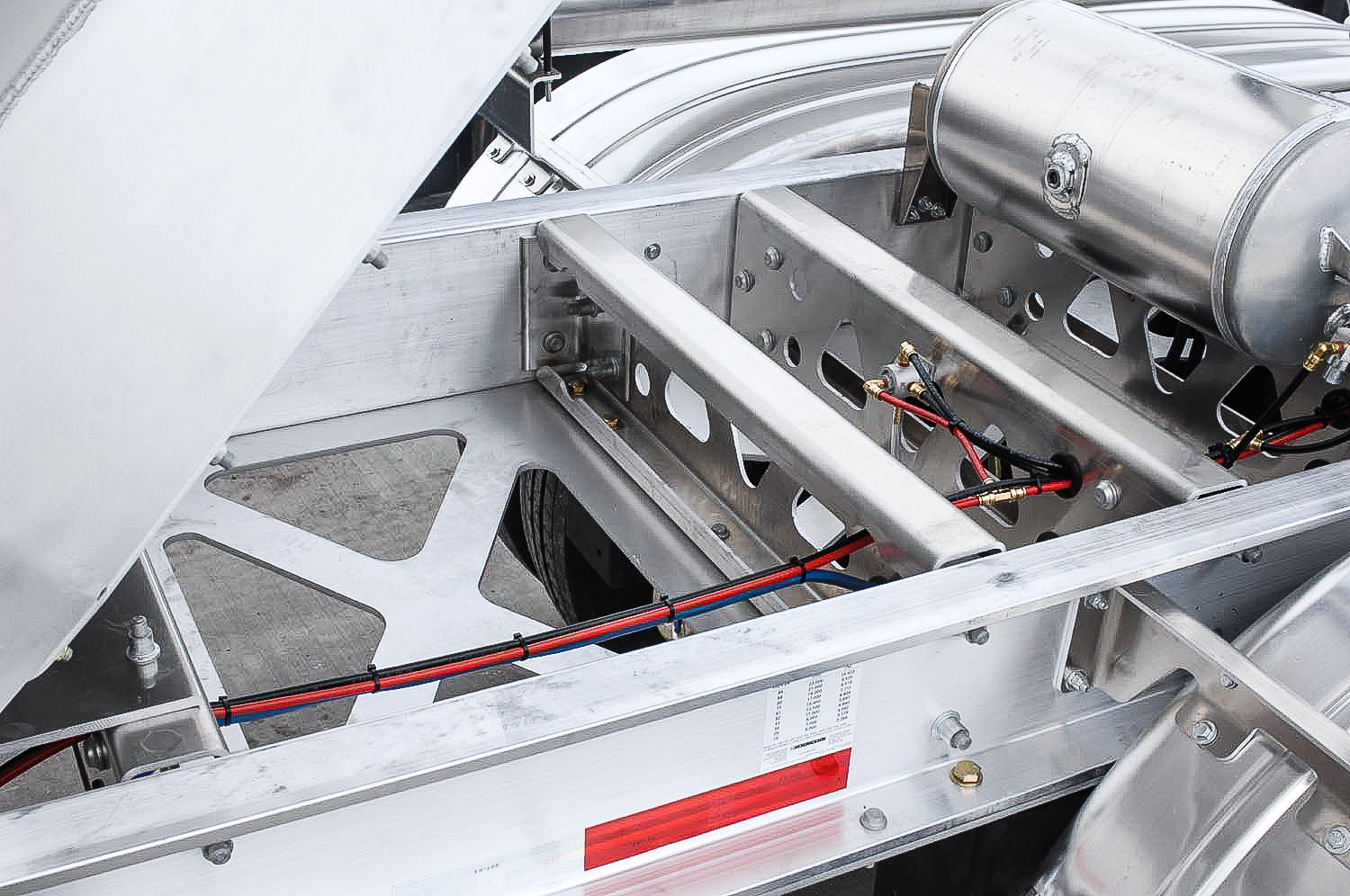

The Aluminum Bulk Pneumatic provides a thicker, stronger body shell than anything on the road. Our design requires fewer internal support structures, reducing areas for product build-up and less maintenance. Mandrel bent piping offers unobstructed flow, delivering faster to make unloading clean and easy. Its aluminum cross members span the full depth of the end frame, resulting in a weight savings while still providing maximum structural strength.
| Standard Equipment | APB 1033 | APB 1633E | |
|---|---|---|---|
| Capacity | 1033 cubic feet | 1633 cubic feet | |
| Kingpin to Center of Last Axle | 38' 4” (21" KP setting) | 38' 4” (21" KP setting) | |
| Overall Length | 42' 0" | 42’ 8” | |
| Overall Width | 96" | 102” | |
| Overall Height | 11' 6” (w/ 48" fifth wheel) | 13' 1” (w/ 48" fifth wheel) | |
| # of Hopper, 45° Vessel | 3 | 4 | |
| # of 20" Manholes w/ Nylon Wear Plate | 2 | 4 | |
| Other Standard Equipment | |||

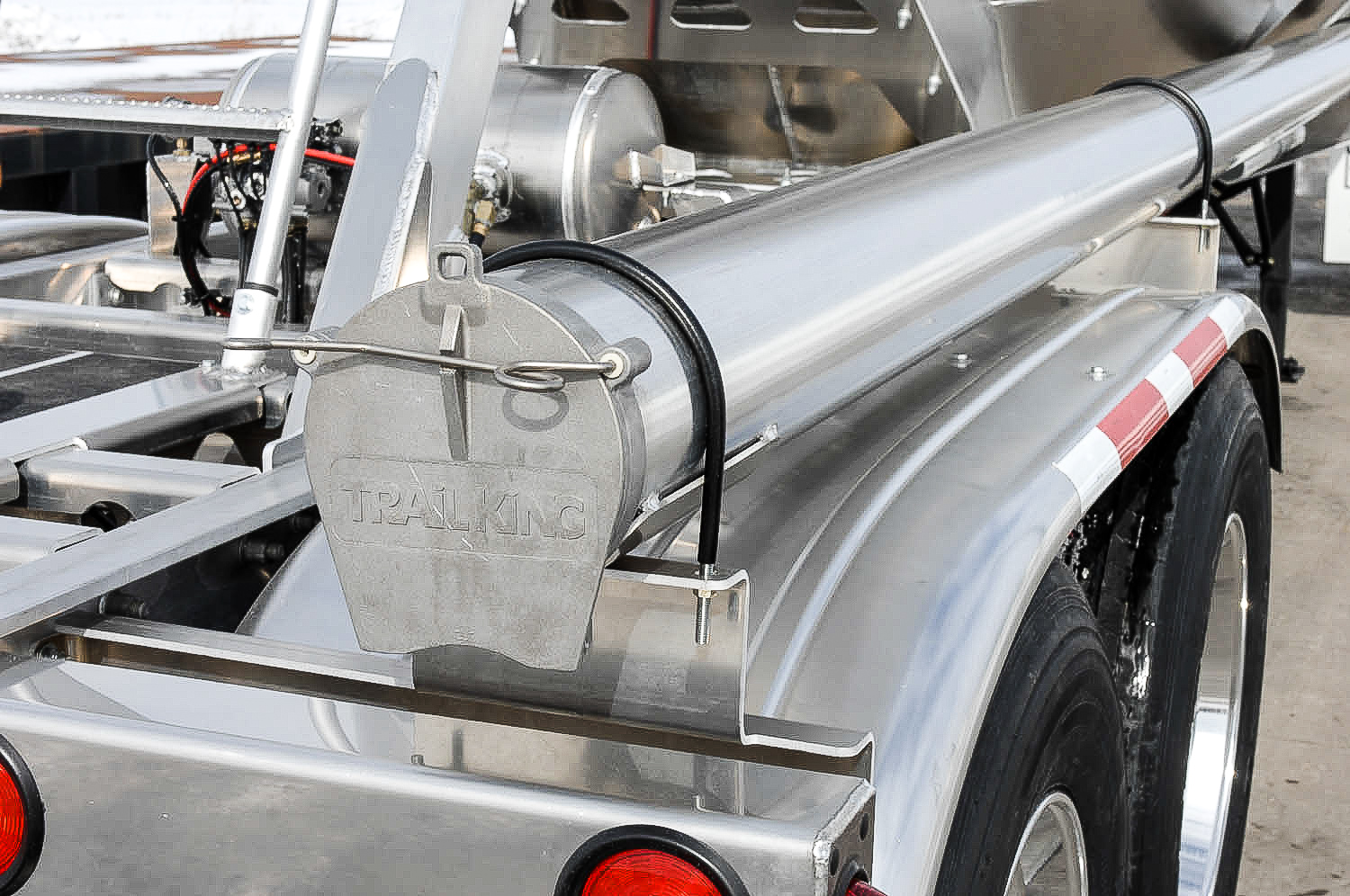

| Standard Fifth Wheel (Bolted & Adjustable) | 8" x 21' Aluminum Hose Tube - Curbside | ||
| Aluminum End Frames | Tandem Axle Suspensions: (2) 23k lntraax AANT Ride | ||
| Aluminum Struts | Soft Coated Suspensions | ||
| Non Food Grade w/ Standard Finish | P Spindle Axles | ||
| Toe Rails on Vessel (Extending To Front-Most Manhole) | 4S2M Anti-Lock Brake System | ||
| 3" Air Inlet on Road Side w/ Male Adaptor | Stemco Platinum Plus Wheel ends 5-yr./500,000-mi. | ||
| Blow Down Line - Road Side Front, Terminating Between Main Frame, Angled Toward Rear | Duralite hub-piloted - Centrifuse Drum | ||
| 3 Solimar Fluidizers at Each Hopper w/ Hopper Savers (Controlled By One (1) 3” Butterfly Valve On Front Fender) | 8.25 x 22.S Machined Aluminum Wheels | ||
| 5" Product Valves | 11R22.5 General ST250 14-Ply Radial Tires | ||
| 5" Ultraflo #400 (Iron Disc w/ Black Nitrile Seat) | Aluminum Fenders (Front & Rear) | ||
| 5" x 4" Aluminum Gravity Drop Tees | Aluminum Air Tank | ||
| 4" Sch 40 Aluminum Product Line Piping w/ Grooved Pipe Connectors | Ladder at Rear w/ Hand Rail | ||
| 4" Sch 40 Aluminum Discharge Piping w/ Grooved Pipe Connectors, Terminating Below Axles | Gauges on Side of Frame w/ Light | ||

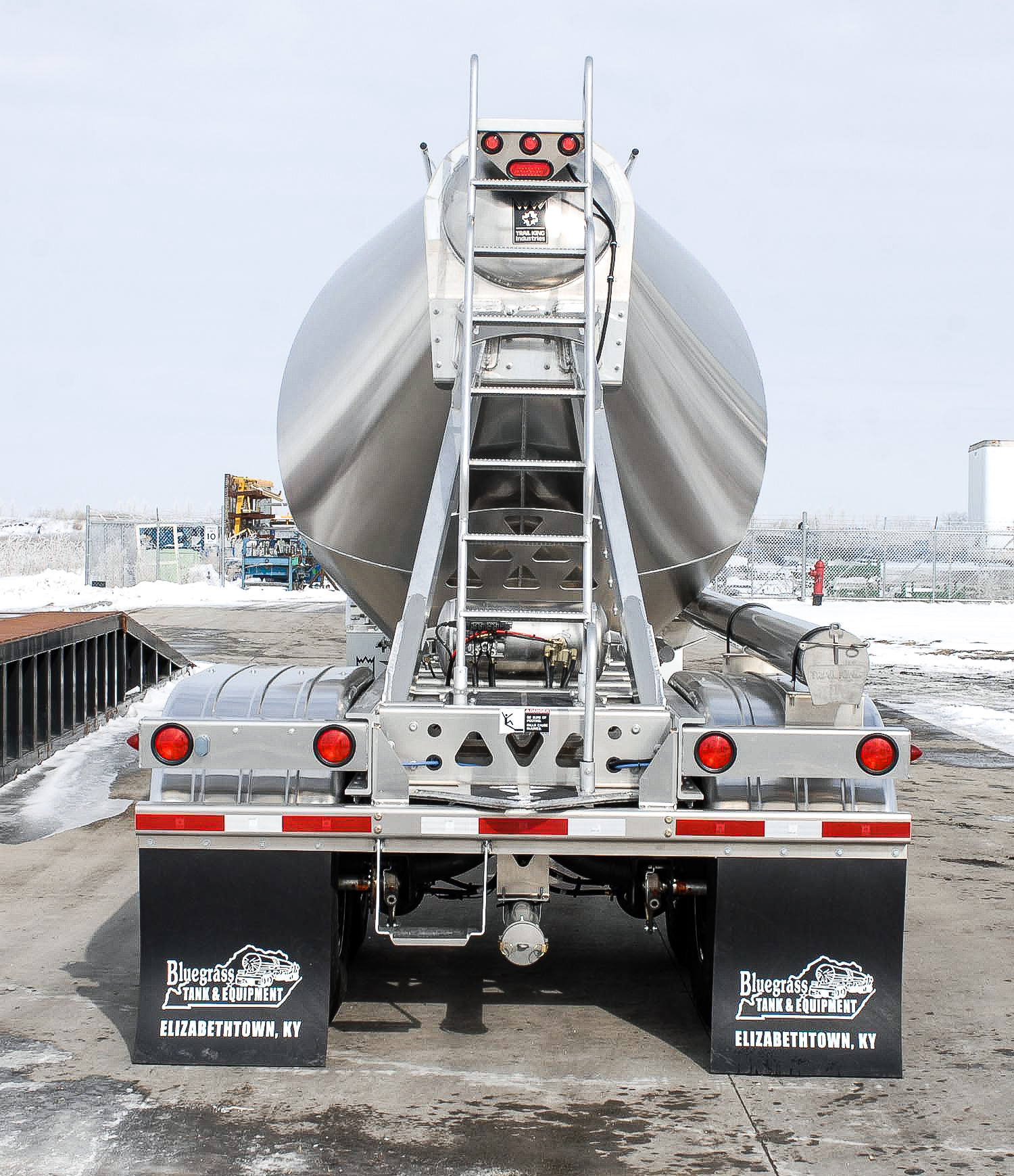

| LED Lights w/ Sealed Wiring Harness | Trail King Anti-Sail Mud Flaps | ||
| High Mounted 3rd Stop Light | Two Speed Landing Gear (crank road side) (Armor Coated Black) | ||
